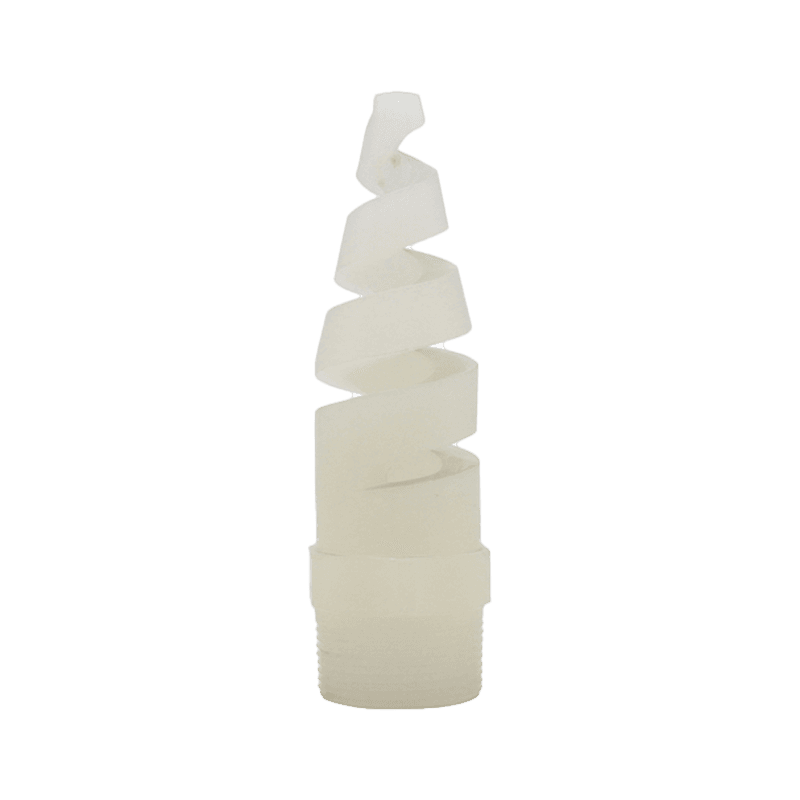

PVDF Spiral Nozzle

PVDF Spiral Nozzle is a high-flow industrial spray nozzle made from chemically resistant PVDF (polyvinylidene fluoride), featuring an open-channel spiral design that minimizes clogging and delivers uniform full-cone or hollow-cone spray patterns with wide spray angle options. With a broad flow range and flange/ threaded connections, it’s ideal for flue gas desulfurization, dust suppression, wastewater washing, and other industrial spray, cooling, and scrubbing applications.

Categories: Spiral Spray Nozzles, Spray Nozzles

Connection: 1-1/2″, 1", 1/2", 1/4″, 2", 3", 3/4", 3/8", 4", BSPT, NPT

Material: PVDF

Max Pressure(bar): 25

Min Pressure(bar): 0.7

Max Flow(L/min): 11960

Spray Angle: 60°, 90°, 120°, 150°, 170°

Spray Shape: Full Cone, Hollow Cone

1. Spiral nozzle (SPJT) has two spray effects: hollow cone and solid cone

2. Open channel, the nozzle has no internal parts, the large and unobstructed flow channel reduces blockage and has anti-blockage characteristics

3. The flow rate and spray angle have a wide range of options. Given the pipe size, the hollow/solid spiral nozzle spray angle range can be 60°-170°, and the liquid flow rate range is 5.5-4140 liters/minute

Applications

Flue gas desulfurization and dust removal, ship flue gas desulfurization, power plant flue gas desulfurization, waste gas washing, tail gas treatment, etc.

Connection	1-1/2″, 1", 1/2", 1/4″, 2", 3", 3/4", 3/8", 4", BSPT, NPT
Material	PVDF
Max Pressure(bar)	25
Min Pressure(bar)	0.7
Max Flow(L/min)	11960
Spray Angle	60°, 90°, 120°, 150°, 170°
Spray Shape	Full Cone, Hollow Cone
