Reel-Type Telescopic Cleaning Device

Reel-Type Telescopic Cleaning Device is an industrial-grade automated system for high-pressure tank cleaning. It integrates a motor-driven reel, a telescopic rod, and a specialized cleaning head to deliver thorough internal cleaning for medium to large containers like storage tanks, reactors, and drying towers. The device is mounted at the tank opening, where it automatically extends the rod, sprays cleaning fluid in precise patterns (spiral, circular) for complete coverage, and retracts upon completion. This efficient, reliable solution is widely used in food, chemical, pharmaceutical, and petroleum industries, enhancing cleaning safety and consistency while reducing manual labor.

Categories: Cleaning Equipments, Telescopic Cleaning Devices

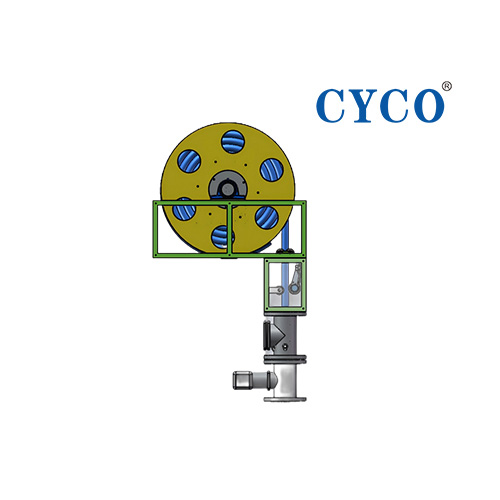

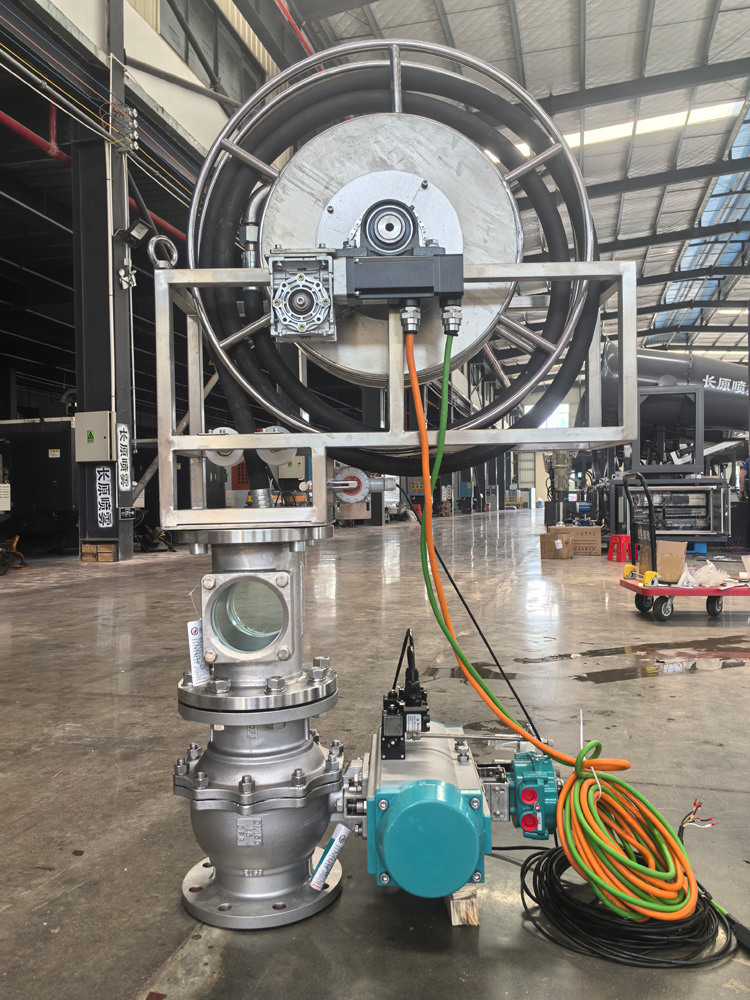

The reel-type telescopic cleaning device consists of a reel, a telescopic rod, and a tank cleaning head.
It uses a motor-driven reel system to automatically extend and retract the telescopic rod, while the rotary cleaning head performs high-pressure cleaning of the tank’s inner walls.
This device is suitable for cleaning medium to large storage tanks, mixing tanks, fermentation tanks, reactors, drying towers, and other containers across 98% of industries, including food, chemical, pharmaceutical, and petroleum sectors.

Working Principle

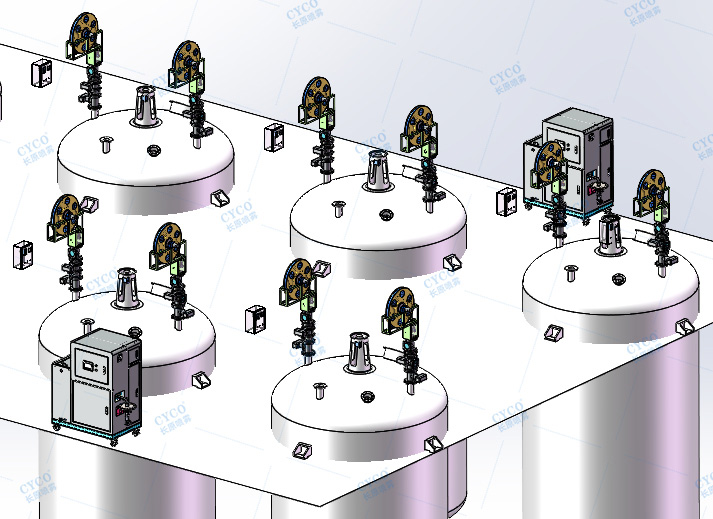

The reel-type telescopic cleaning device is mounted at the tank opening, and sealing components are adjusted to prevent leakage.
Once the drive motor is activated, the reel extends the telescopic rod gradually into the tank.
The high-pressure pump starts, delivering the cleaning fluid through the internal piping of the telescopic rod to the cleaning head.
The cleaning head sprays the fluid at preset paths and angles, covering the tank’s inner surfaces. Under the action of the rotation mechanism, the cleaning head moves along a defined trajectory (such as spiral, circular, or segmented patterns) to ensure complete coverage.
After cleaning is completed, the reel retracts the telescopic rod back into the reel housing.
Once the cleaning task is finished, the device is shut down, and maintenance procedures for the cleaning unit are performed.
