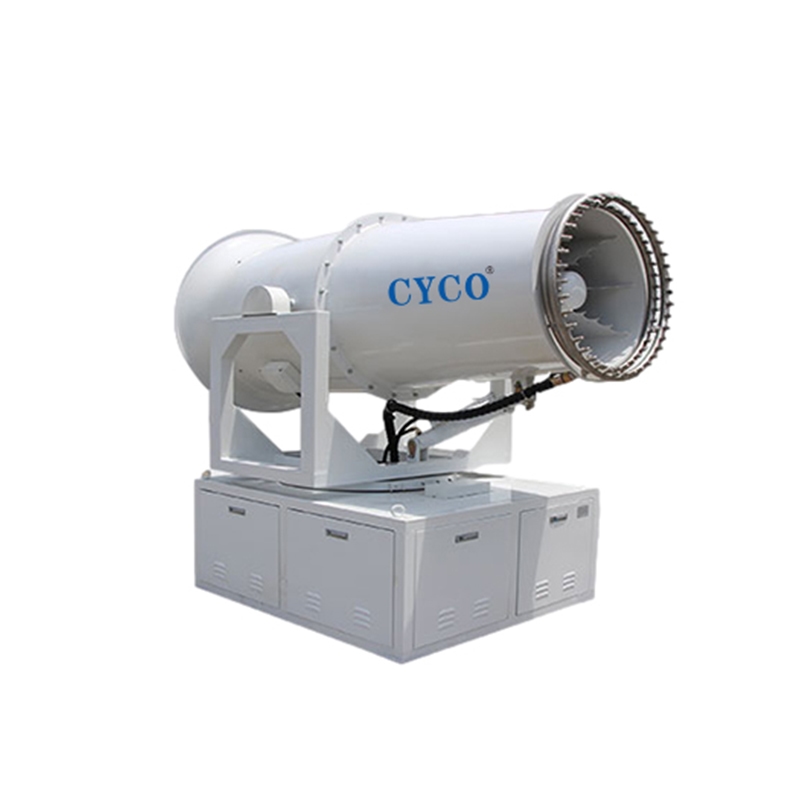

Customizable Fog Cannon Range 20 – 150m

Customizable Fog Cannon Range 20–150m from CYCO is a versatile industrial dust suppression solution offering adjustable spray ranges from 20 to 150 meters with manual, semi-automatic, or fully automatic operation. Multiple control options including PLC, mobile app, and DCS systems are supported. Built in corrosion-resistant stainless or carbon steel with flexible installation types (vehicle, trailer, tower, or ground), it effectively suppresses dust, provides humidification and cooling, and is suitable for construction sites, mining areas, ports, factories, and public spaces.

Categories: Mist Cannons

Multiple spray ranges available: 20 to 160 meters
Manual / semi-automatic / fully automatic operation options
Control methods: relay control / PLC program control / mobile app / DCS system
Explosion-proof or standard model available
Material options: stainless steel or standard carbon steel
Installation types: vehicle-mounted / trailer-mounted / mobile / tower-mounted / ground-fixed
Power supply options: battery-powered / generator-powered / mains electricity
Multiple color options: red, orange, yellow, green, blue, white

CYCO intelligent fog cannon is widely used in dust control and intelligent management in various industries, which can effectively suppress dust and dust, and prevent the occurrence of haze.

Dust suppression, dust removal, humidification and cooling in streets, airports, highways, stations, squares, stadiums, etc.
Dust suppression and dust removal in coal yards, mining areas, stone factories, ports, docks, cargo yards, sand fields, garbage treatment plants, material yards, etc.
Dust suppression and dust reduction in large enterprises such as steel, cement, electricity, and petrochemicals.
Dust suppression and dust reduction in construction sites, demolition sites, blasting sites, etc.
Spraying of pesticides, irrigation, and pest control in farmland and gardens.

CYCO fog cannon design highlights

Long range (20-160 meters), strong penetration, wide coverage, small water mist particles, uniform spraying, fast dust reduction, high efficiency
Intelligent PLC control cabinet, can achieve quantitative, timing, directional work high
Flexible power matching, can be driven by power grid or generator set
Flexible mobility, can be equipped with vehicle, dragged and moved on the ground, or installed on various platforms or towers
Multiple operation methods, safe and reliable, can be operated manually, or can be accurately remotely controlled at a distance of 100 meters
High efficiency, energy saving, water saving, low noise, water consumption can save 70%~80% of water compared with other dust suppression spraying equipment (spray gun, sprinkler locomotive)
Water mist covers a much larger area than other spraying equipment.

Model	Maximum range (m)	Water spray (μm)	Maximum coverage area (m²)	Spray flow rate (L/min)	Control method	Total power (kW)	Pitch angle	Angle of rotation	Number of nozzles	Weight (kg)
CYWP-30	≥30	20-100	3000	10-30	Manual automatic remote control remote	5.05	-10~45°	±160	≥24	300
CYWP-40	40	20-100	5000	40-60	Manual automatic remote control remote	9.55	-10~45°	±160	40	420
CYWP-50	50	20-100	7800	40-80	Manual automatic remote control remote	14.55	-10~45°	±160	50	500
CYWP-60	≥60	20-100	11000	60-80	Manual automatic remote control remote	23.25	-10~45°	±160	≥60	850
CYWP-70	70	20-100	15000	80-120	Manual automatic remote control remote	29	-10~45°	±160	70	1450
CYWP-80	80	20-100	20000	80-120	Manual automatic remote control remote	45.6	-10~45°	±160	80	1500
CYWP-100	100	20-100	34000	12tons/hour	Manual automatic remote control remote	75	-10~45°	±160	≥100	2000
CYWP-120	≥120	20-100	40000	16-20 tons/hour	Manual automatic remote control remote	93	-10~45°	±160	≥120	2000
CYWP-150	≥150	20-100	40000	20-30 tons/hour	Manual automatic remote control PLC remote	98	-10~45°	±160	≥150	2800
Mobile fog machine	30-100	20-100	3000-30000	60-400	Manual automatic remote control remote	10-90	-10~45°	±160	24-120	320-2000
Intelligent fog machine	30-150	20-100	3000-30000	Different flow rates for different ranges	PLC intelligent control	/	-10~45°	±160	customizable	Different weights for different ranges
