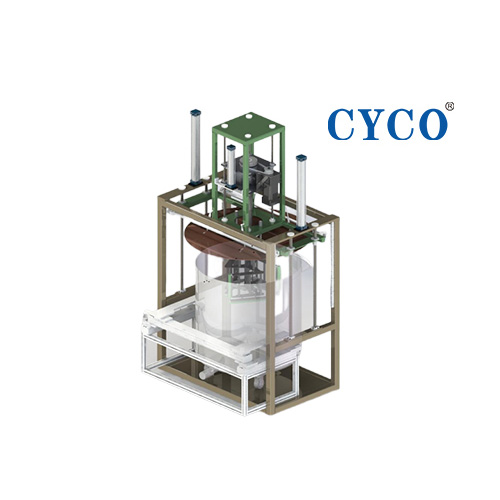

Fully Automatic Brush Cleaning Machine for Mixing Tanks

Fully Automatic Brush Cleaning Machine for Mixing Tanks from CYCO is a high-efficiency industrial cleaning solution designed to thoroughly wash the interior surfaces of mixing tanks with minimal manual labor. It features automatic brush rotation and high-pressure spray nozzles that remove stubborn residues, scale, and buildup while providing consistent, uniform cleaning coverage. Built with durable materials and intelligent control options, this system improves cleaning quality, reduces downtime, and enhances productivity and sanitation in chemical, food, pharmaceutical, and industrial environments. Ideal for medium to large mixing tanks where traditional cleaning is labor-intensive and time-consuming.

Categories: Cleaning Equipments, Mixing Tank Cleaning Equipments

The CYCO Fully Automatic Brush Cleaning System for Mixing Tanks utilizes a retractable cleaning brush combined with solvent spraying to achieve thorough cleaning of both the tank walls and bottom. The main shaft speed and cleaning depth are adjustable. Designed specifically for internal tank cleaning, the system automatically adjusts clamping and positioning to accommodate various tank sizes, compatible with diameters ranging from 500 mm to 1100 mm.

System Components:

Fixed outer frame
Electric control unit
Operation panel
Lifting mechanism
Sealed upper lid
Cleaning spindle
Automatic tank positioning and clamping system
Foldable safety guard
3D rotary cleaning head
Rotating cleaning brush

Workflow:

Quick Positioning:
The mobile tank is transported to the cleaning station via forklift and precisely positioned. The lid automatically seals the tank for preparation.

Powerful Combination Cleaning:
The retractable rotating brush begins precise scrubbing, working in tandem with solvent spray. The 3D cleaning head ensures full coverage without blind spots, delivering comprehensive cyclic cleaning.

Smart Operation:
The entire cleaning process is fully automated, requiring only basic operator monitoring and support.
