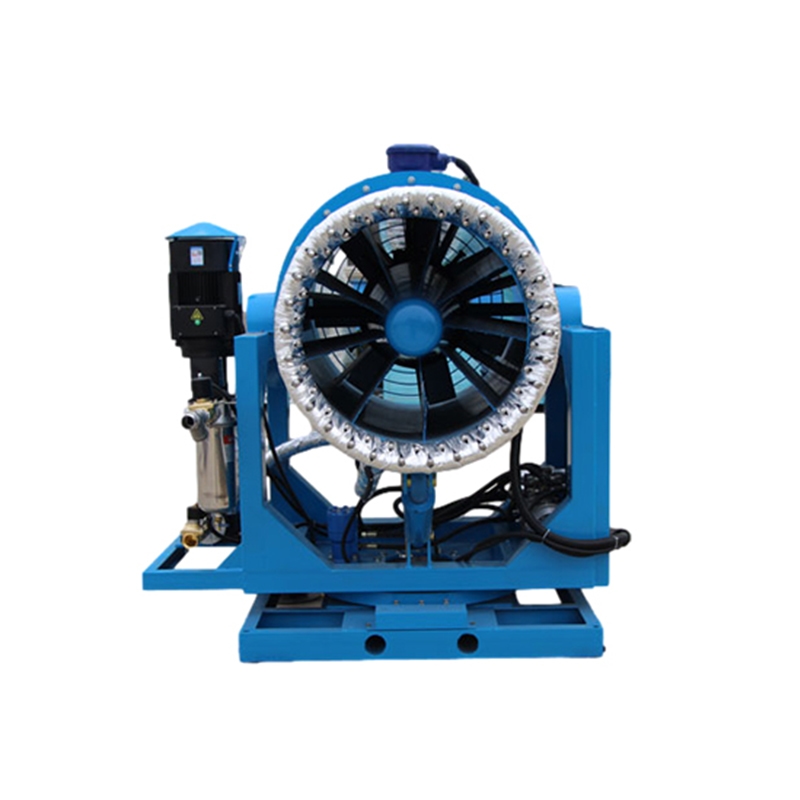

Hawkeye Fully Automatic Spray Fog Cannon
Hawkeye Fully Automatic Spray Fog Cannon is an advanced industrial dust suppression and environmental control system engineered for continuous, unattended operation across mining sites, construction areas, ports, factories, and large outdoor environments. Featuring automatic rotation and tilt, intelligent control options, and high-pressure fine mist atomization, it delivers long-range coverage with efficient dust capture and water savings. Built with rugged materials and flexible power choices, it reliably reduces airborne particles and improves air quality in demanding industrial settings.
- Multiple spray ranges available: 20 to 160 meters
- Manual / semi-automatic / fully automatic operation options
- Control methods: relay control / PLC program control / mobile app / DCS system
- Explosion-proof or standard model available
- Material options: stainless steel or standard carbon steel
- Installation types: vehicle-mounted / trailer-mounted / mobile / tower-mounted / ground-fixed
- Power supply options: battery-powered / generator-powered / mains electricity
- Multiple color options: red, orange, yellow, green, blue, white
CYCO intelligent fog cannon is widely used in dust control and intelligent management in various industries, which can effectively suppress dust and dust, and prevent the occurrence of haze.
- Dust suppression, dust removal, humidification and cooling in streets, airports, highways, stations, squares, stadiums, etc.
- Dust suppression and dust removal in coal yards, mining areas, stone factories, ports, docks, cargo yards, sand fields, garbage treatment plants, material yards, etc.
- Dust suppression and dust reduction in large enterprises such as steel, cement, electricity, and petrochemicals.
- Dust suppression and dust reduction in construction sites, demolition sites, blasting sites, etc.
- Spraying of pesticides, irrigation, and pest control in farmland and gardens.
CYCO fog cannon design highlights
- Long range (20-160 meters), strong penetration, wide coverage, small water mist particles, uniform spraying, fast dust reduction, high efficiency
- Intelligent PLC control cabinet, can achieve quantitative, timing, directional work high
- Flexible power matching, can be driven by power grid or generator set
- Flexible mobility, can be equipped with vehicle, dragged and moved on the ground, or installed on various platforms or towers
- Multiple operation methods, safe and reliable, can be operated manually, or can be accurately remotely controlled at a distance of 100 meters
- High efficiency, energy saving, water saving, low noise, water consumption can save 70%~80% of water compared with other dust suppression spraying equipment (spray gun, sprinkler locomotive)
- Water mist covers a much larger area than other spraying equipment.
| Model | Maximum range (m) | Water spray (μm) | Maximum coverage area (m²) | Spray flow rate (L/min) | Control method | Total power (kW) | Pitch angle | Angle of rotation | Number of nozzles | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| CYWP-30 | ≥30 | 20-100 | 3000 | 10-30 | Manual automatic remote control remote | 5.05 | -10~45° | ±160 | ≥24 | 300 |
| CYWP-40 | 40 | 20-100 | 5000 | 40-60 | Manual automatic remote control remote | 9.55 | -10~45° | ±160 | 40 | 420 |
| CYWP-50 | 50 | 20-100 | 7800 | 40-80 | Manual automatic remote control remote | 14.55 | -10~45° | ±160 | 50 | 500 |
| CYWP-60 | ≥60 | 20-100 | 11000 | 60-80 | Manual automatic remote control remote | 23.25 | -10~45° | ±160 | ≥60 | 850 |
| CYWP-70 | 70 | 20-100 | 15000 | 80-120 | Manual automatic remote control remote | 29 | -10~45° | ±160 | 70 | 1450 |
| CYWP-80 | 80 | 20-100 | 20000 | 80-120 | Manual automatic remote control remote | 45.6 | -10~45° | ±160 | 80 | 1500 |
| CYWP-100 | 100 | 20-100 | 34000 | 12tons/hour | Manual automatic remote control remote | 75 | -10~45° | ±160 | ≥100 | 2000 |
| CYWP-120 | ≥120 | 20-100 | 40000 | 16-20 tons/hour | Manual automatic remote control remote | 93 | -10~45° | ±160 | ≥120 | 2000 |
| CYWP-150 | ≥150 | 20-100 | 40000 | 20-30 tons/hour | Manual automatic remote control PLC remote | 98 | -10~45° | ±160 | ≥150 | 2800 |
| Mobile fog machine | 30-100 | 20-100 | 3000-30000 | 60-400 | Manual automatic remote control remote | 10-90 | -10~45° | ±160 | 24-120 | 320-2000 |
| Intelligent fog machine | 30-150 | 20-100 | 3000-30000 | Different flow rates for different ranges | PLC intelligent control | / | -10~45° | ±160 | customizable | Different weights for different ranges |
