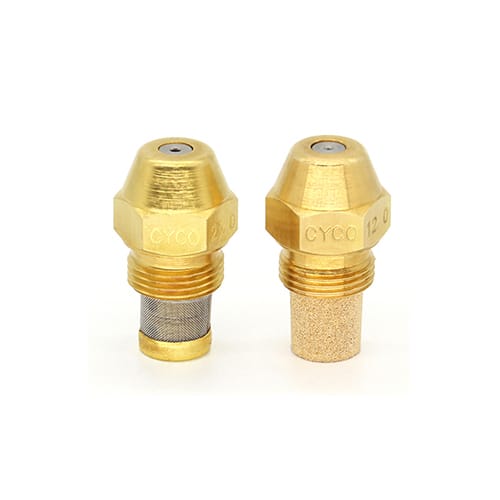

OD Oil Nozzle

SKU: OD

OD Oil Nozzle is a high-pressure fuel atomizing nozzle designed for civil and commercial burner systems, capable of atomizing both light oil and heavy oil (diesel) for efficient fuel combustion. Made from brass with multiple spray angles (30°, 45°, 60°, 80°), it supports various spray patterns to suit different burner configurations and flow rates from approximately 0.30 to 35 US gal/h under standard conditions. Fully factory-tested for reliable performance, the OD nozzle is ideal for industrial and commercial oil burner applications requiring dependable atomization and spray distribution.

Categories: Oil Nozzles, Spray Nozzles

Material: Brass

Spray Angle: 30°, 45°, 60°, 80°

Design Features

1. Provide a series of copper and steel injectors for standard burner systems. We provide a series of special injectors adapted to the working area, media and emission requirements to meet the needs of different markets

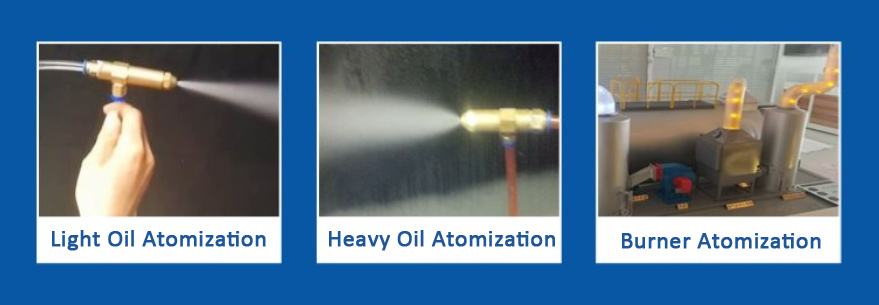

2. The OD series nozzles are designed for civil and commercial high-pressure fuel burner systems. They can use light oil and heavy oil (both are diesel) with 4 different injection angles and 3 different injection patterns

3. The standard series nozzle flow rate ranges from 0.30 to 35 USgal/h (this flow rate is at a standard pressure of 100psi. The flow rate will change with changes in pressure)

4. Both light oil and heavy oil can be used, 100% factory tested
