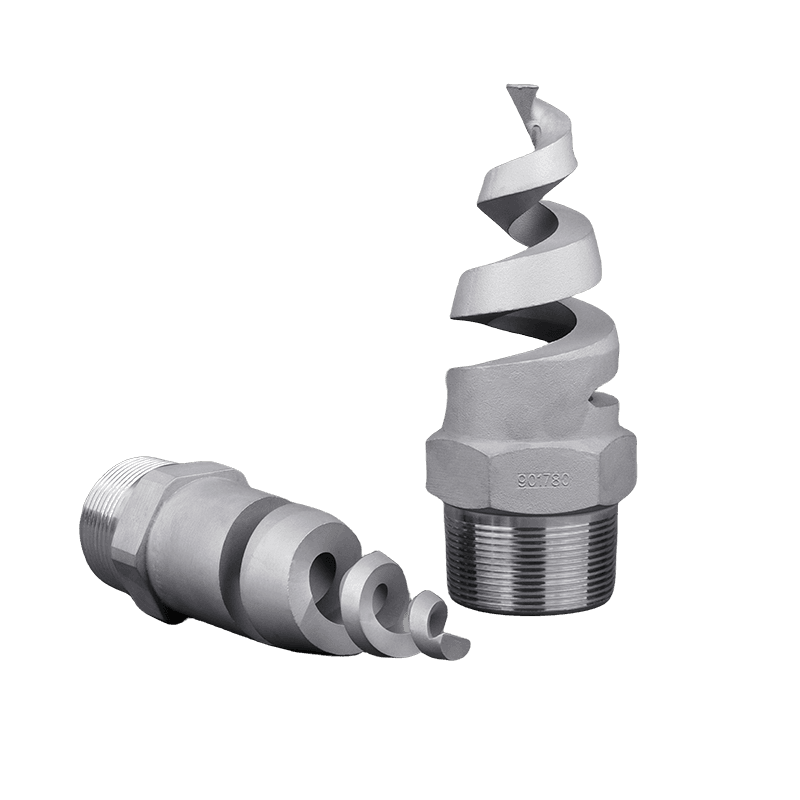

SPJT Spiral Nozzle

SPJT Spiral Nozzle is a high-efficiency industrial spray nozzle that produces a spiral full-cone spray pattern for uniform, powerful coverage. Designed with an anti-clog spiral structure, it delivers robust cleaning and rinsing performance across a wide range of pressures and flow rates. Suitable for use in food and beverage, chemical processing, cooling systems, washing lines, and general industrial applications requiring consistent spray distribution and clog-resistant operation.

Categories: Spiral Spray Nozzles, Spray Nozzles

Material: 2205, 316L, Brass, PTFE, PVC, PVDF

Max Flow(L/min): 6330

Max Pressure(bar): 7

Min Pressure(bar): 0.7

Spray Angle: 60°, 90°, 120°, 150°, 170°

Spray Shape: Full Cone, Hollow Cone

Connection: 1-1/2″, 1", 1/2", 1/4″, 2", 3", 3/4", 3/8", 4", BSPT, NPT

Two spray effects: Hollow and solid spiral nozzles.
Open passage design with no internal components, large and smooth flow channels reduce clogging, and the nozzle is resistant to blockages.
Wide range of flow rates and spray angles available. For a given pipe size, the hollow/solid spiral nozzle can have a spray angle range of 50°-170° and a liquid flow rate range of 2.6-6330 liters per minute.
Materials available for this nozzle include: 316 stainless steel, 2205, brass, PVC, TEF, PVDF, and 10 other options.

Applications

Flue gas desulfurization and dust removal, ship flue gas desulfurization, power plant flue gas desulfurization, waste gas washing, tail gas treatment, cooling, dust removal, fire prevention and fire extinguishing, etc.

Material	2205, 316L, Brass, PTFE, PVC, PVDF
Max Flow(L/min)	6330
Max Pressure(bar)	7
Min Pressure(bar)	0.7
Spray Angle	60°, 90°, 120°, 150°, 170°
Spray Shape	Full Cone, Hollow Cone
Connection	1-1/2″, 1", 1/2", 1/4″, 2", 3", 3/4", 3/8", 4", BSPT, NPT
