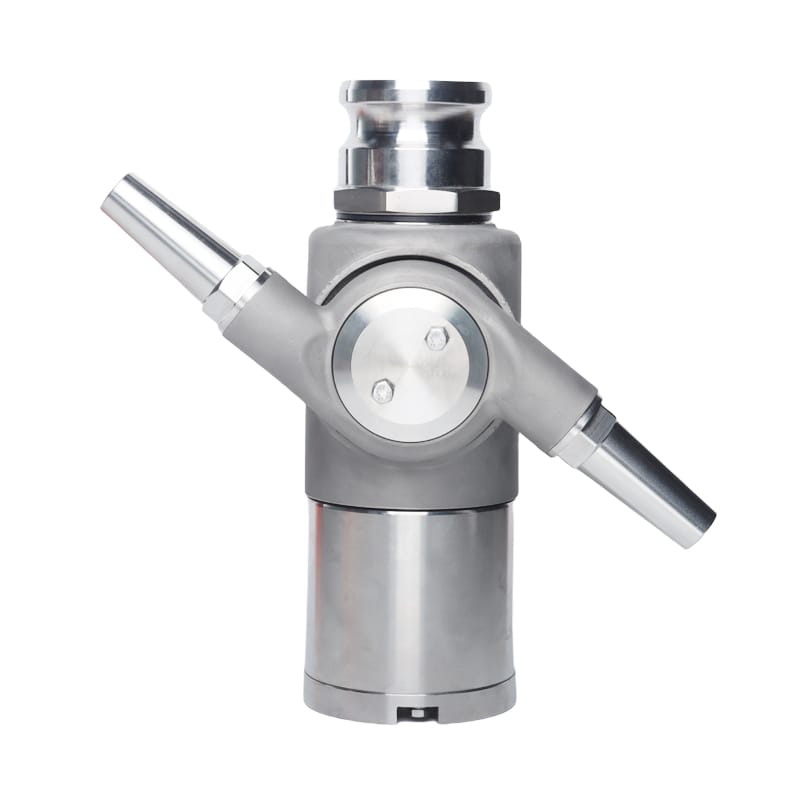

360B 3D Rotating Tank Cleaning Nozzle

SKU: 360B

360° Three-Dimensional Cleaning Coverage
Delivers powerful, thorough cleaning with dual high-impact nozzles that rotate through every 60 revolutions, ensuring complete interior coverage without dead spots inside tanks and vessels.

Durable 316L Stainless Steel & PTFE Construction
Made from premium corrosion-resistant 316L stainless steel and PTFE, this nozzle is engineered to withstand harsh industrial environments and extended service life.

Efficient Gear-Driven Mechanism
Precision gear reduction design with optimized rotor/stator combination delivers predictable cleaning results and rapid cleaning cycles, maximizing efficiency in demanding applications.

Built-In Filter for Smooth Operation
Integrated strainer reduces clogging and prolongs nozzle life; user-serviceable for easy maintenance and continuous performance.

Wide Industrial Applications
Ideal for cleaning large tanks, reactors, IBCs, and sealed containers in industries such as pharmaceutical, food & beverage, chemical, dairy, cosmetics, bioengineering, and petroleum.

Categories: Spray Nozzles, Tank Cleaning Nozzles

Cleaning Mode: 3D Rotation

Material: 316L, PTFE

Connection: 2", BSPT

Max Cleaning Diameter: 147.64'

Max Flow(L/min): 260

Max Pressure(bar): 20

Min Pressure(bar): 5

Max Temperature: 200°F

Min Entry Diameter: 6.3"

Product Features:

The 360-A/B three-dimensional cleaning nozzle is a very durable and reliable tank cleaning machine that combines all the functions needed to handle the most severe tank cleaning problems;

1. Compact and efficient structure, space saving, long service life, handle the most severe tank cleaning applications;

2. The 360 three-dimensional tank washer provides 2 nozzles and 4 nozzles, providing a powerful and thorough 360-degree cleaning mode every 60 revolutions;

3. Optional nozzle sizes and threaded connection methods, predictable cleaning effects, and the shortest cleaning cycle;

4. The gear reduction box structure, as well as the rotor and stator combination, can meet most application requirements;

5. The built-in filter minimizes clogging and extends wear life; it can be repaired by the user, easy to maintain, and rotates smoothly without jamming.

Cleaning track simulation:

Cleaning scene:

Cleaning Mode	3D Rotation
Material	316L, PTFE
Connection	2", BSPT
Max Cleaning Diameter	147.64'
Max Flow(L/min)	260
Max Pressure(bar)	20
Min Pressure(bar)	5
Max Temperature	200°F
Min Entry Diameter	6.3"
