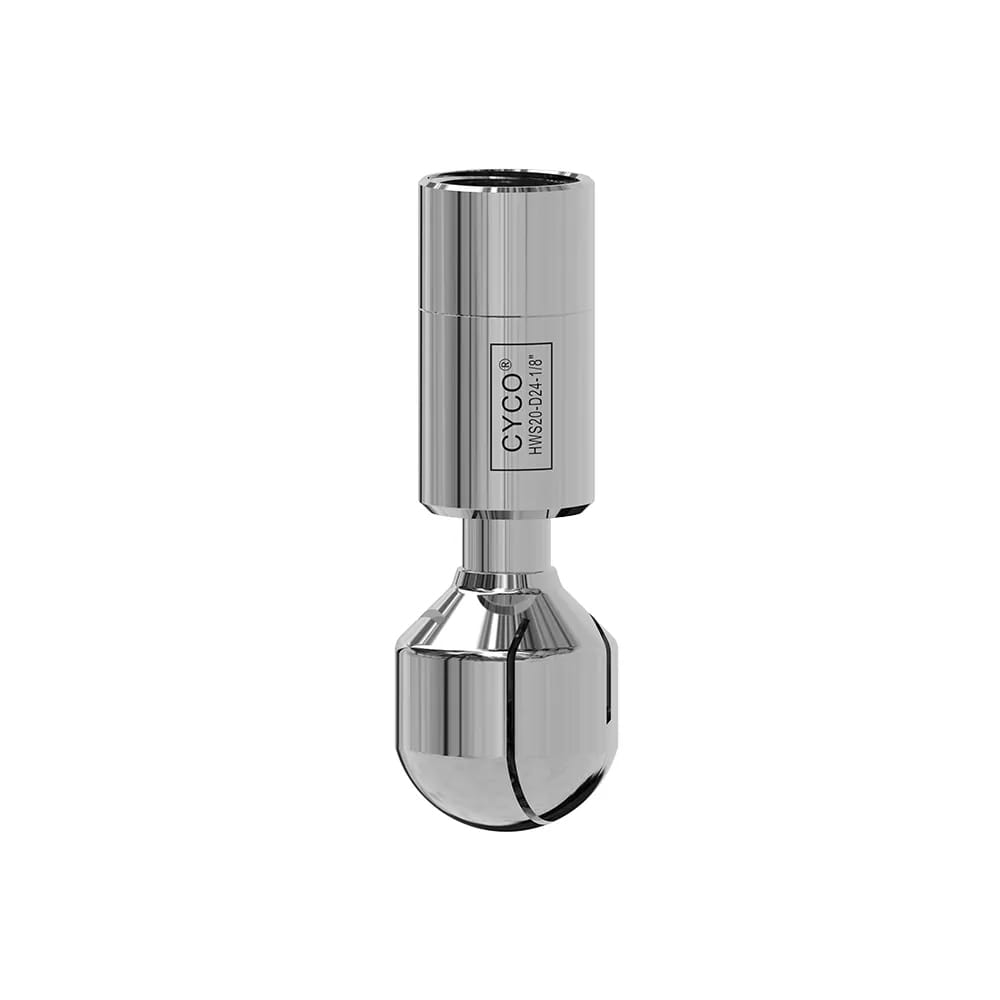

ROT Series Rotary Spray Cleaning Nozzle

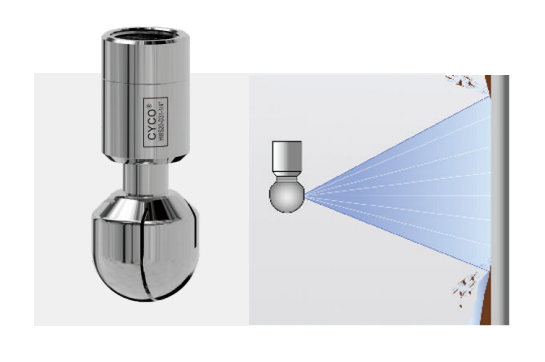

The ROT Series Rotary Spray Cleaning Nozzle delivers reliable 360° fluid-driven rotation for effective rinsing and removal of light contaminants in food, beverage, chemical, and pharmaceutical applications. Made from corrosion-resistant 316L stainless steel, it supports direct CIP operation with smooth, uninterrupted rotation and can withstand temperatures up to 250 °C. Applied to broad interior coverage, it handles a wide range of cleaning agents with stable performance and optional explosion-proof certification.
High-Standard Surface treatment：ROT Series Rotary Spray Cleaning Nozzle features a mechanical polish down to 0.5μm. The smooth surface resists residue buildup, greatly reduces the risk of bacterial growth, and lowers fluid resistance, ensuring stable cleaning performance — ideal for pharmaceutical and food industries with strict hygiene requirements.
Suitable for High-Temperature Environments：The nozzle operates reliably at up to 250°C without deformation or performance loss. It integrates seamlessly into hot water or steam CIP systems, reducing cooling wait time between batches and improving production efficiency.
High Corrosion Resistance (Full 316L Stainless Steel)：The entire nozzle is made of 316L stainless steel, so it resists rust and corrosion. Even with long-term exposure to strong cleaners or in damp environments, it lasts a long time，which makes it a great fit for tough conditions like chemical plants, coastal facilities, or pharmaceutical production.
Suitable for CIP (Clean-in-Place): The nozzle is fluid-driven with no external motor or seals, allowing direct integration into CIP systems. It supports hot water, sanitizers, acids, alkalis, and other media, enabling fully automated, disassembly-free tank cleaning that significantly reduces manual labor and maintenance costs.
FDA & EC 1935/2004 Compliant: The nozzle complies with U.S. FDA and EU EC 1935/2004 food contact material regulations, releasing no harmful substances into food or pharmaceutical products. It meets safety requirements for direct contact with food and medicines, serving as a key compliance guarantee for exports to European and American markets.
ATEX-Certified Explosion-Proof Version Available: An ATEX-certified explosion-proof model is available for hazardous environments with flammable gases, vapors, or dust, such as chemical plants, oil refineries, coating lines, and alcohol production facilities. It delivers triple protection against corrosion, high temperatures, and explosion risks.

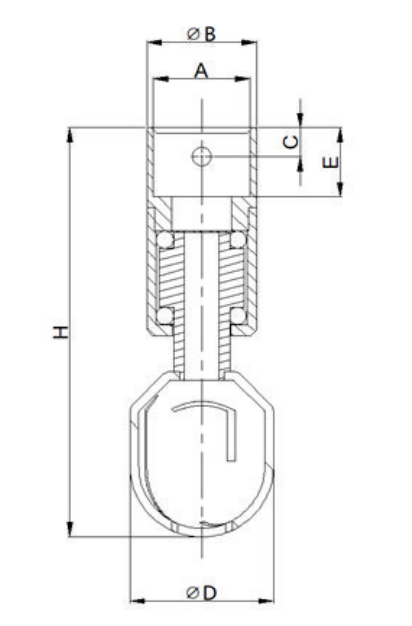

Specification of ROT Series Rotary Spray Cleaning Nozzle
| Cleaning Mode | Rotation |
|---|---|
| Connection | 1/2", 3/4", 3/8", Pin Connection |
| Material | 316L |
| Max Cleaning Diameter | 9.84' |
| Max Flow(L/min) | 165 |
| Max Pressure(bar) | 7 |
| Max Temperature | 482°F |
| Min Entry Diameter | 0.71" |
| Min Pressure(bar) | 2 |
