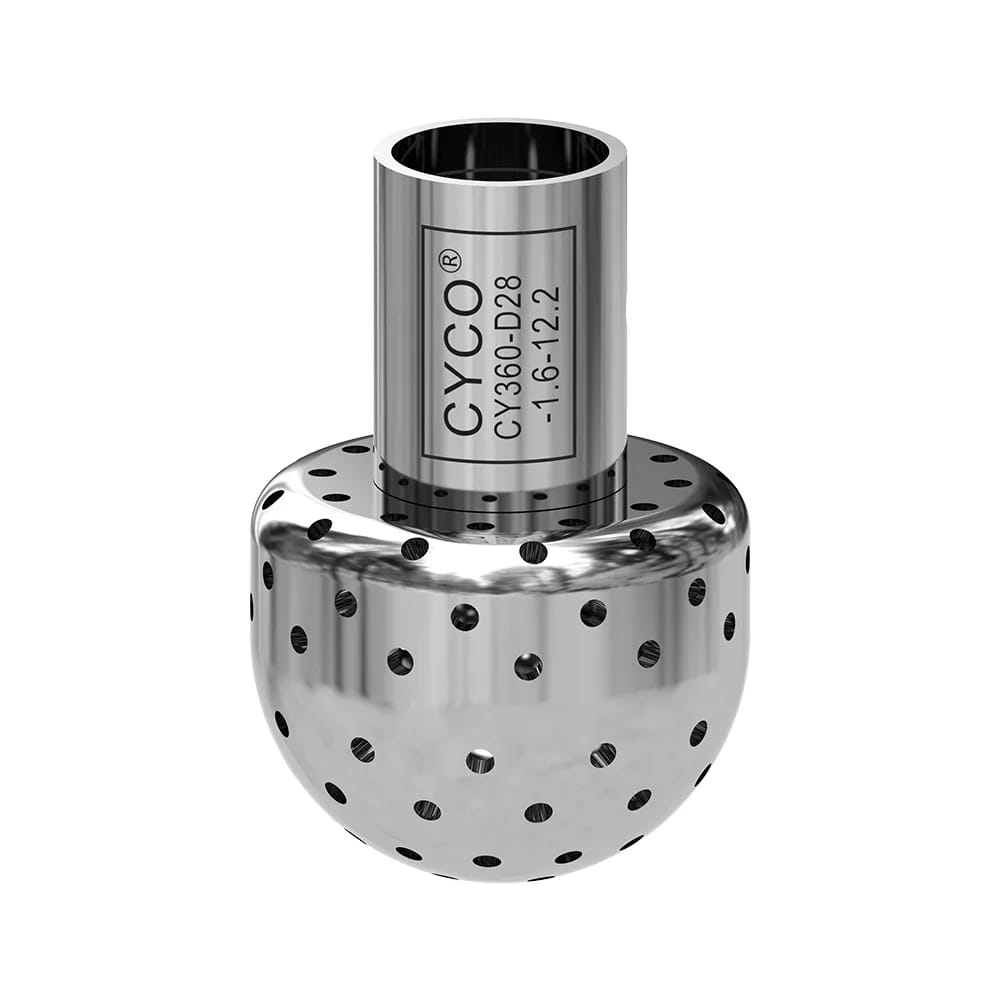

S360/Y360 Fixed Bottle Cleaning Spray Ball

Features

1. Dense Small Hole Spray for Thorough Coverage

S360/Y360 Fixed Bottle Cleaning Spray Ball features a large number of precision small holes evenly distributed across its surface. During operation, multiple water jets are discharged simultaneously, impacting the tank wall from various angles. The high density of holes ensures broad coverage and uniform impact distribution, effectively eliminating cleaning dead zones.

2. 360° Spray Coverage

Its spray coverage is a full 360°, ensuring effective cleaning of the tank roof, sidewalls, and bottom. The dead-angle-free spray pattern guarantees uniform rinsing of all internal surfaces and prevents residue buildup caused by insufficient coverage.

3. Mountable in Any Direction for Easy Fit

S360/Y360 Fixed Bottle Cleaning Spray Ball supports mounting in any orientation, allowing flexible installation based on tank geometry and port location with no strict limitation on direction. Whether installed vertically downward from the top, horizontally on the sidewall, or in a tilted or inverted position, consistent spray performance is maintained.

4. 316L Stainless Steel Construction Withstands 200°C

Its body and internal components are manufactured entirely from 316L stainless steel, offering excellent corrosion resistance and remaining rust-free even after prolonged exposure to moist or chemical-laden environments. It also withstands operating temperatures up to 200°C, making it suitable for hot water, high-temperature steam, and thermal sanitization processes.

5. Suitable for CIP – Fluid-Driven Operation

S360/Y360 Fixed Bottle Cleaning Spray Ball connects directly to a CIP system and is driven solely by the flow pressure of the cleaning medium, requiring no external  motor or seals. Its simple and reliable design minimizes potential fail ure points and reduces maintenance costs, making it particularly suitable for production settings where safety and reliability are paramount.
