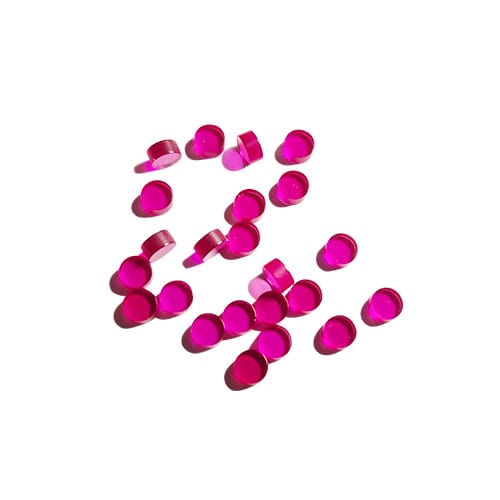

Nozzle Gem Core

Nozzle Gem Core is a precision-manufactured nozzle component made from high-quality artificial sapphire or ruby crystal materials, offering excellent dimensional accuracy and stability. It features outstanding optical transmittance in the 0.20–5.50 μm wavelength range, with infrared transmission remaining stable under varying temperatures. With high machining precision, the orifice size can be controlled as small as 0.01 mm, ensuring accurate and consistent performance in precision applications. Tight tolerances in diameter, thickness, and surface finish further enhance reliability and repeatability. The material provides exceptional hardness, wear resistance, and chemical stability, enabling long service life even under continuous operation. It is suitable for applications requiring high precision, durability, and stable performance, including industrial spraying systems, optical components, and high-accuracy instrumentation.

Categories: Alloy/Gem Nozzles, Spray Nozzles

Since high-quality artificial sapphire/ruby crystal materials have good light transmittance in the 0.20~5.50μm band and the infrared transmittance hardly changes with temperature, optical components and infrared optical windows made of high-quality artificial sapphire are fully used in military night vision infrared equipment, low-temperature laboratory observation ports, and high-precision instruments for navigation, aerospace, etc.

Design Features

1. With outstanding hardness and structural stability of sapphire and ruby materials, Nozzle Gem Core offers extended service life, maintaining dimensional accuracy and performance even under continuous high-pressure and abrasive conditions, significantly reducing maintenance frequency and downtime.

2. It features ultra-high precision micro-hole processing, with orifice diameters as small as 0.01 mm, ensuring accurate and controllable flow performance in precision spraying applications.

3. Strict tolerance control enables excellent orifice consistency, maintaining stable flow rate and spray performance across different operating conditions.

4. The inner orifice is mirror-polished to achieve extremely low surface roughness, reducing fluid resistance and improving jet stability and efficiency.

5. Double-sided optical polishing enhances surface smoothness, minimizing contamination adhesion and ensuring consistent performance over time.

6. High parallelism and perpendicularity are maintained between surfaces and the orifice axis, ensuring precise jet direction and minimal deviation during operation.

7. The material provides excellent chemical stability and corrosion resistance, making it suitable for water, chemical liquids, and other aggressive media.

8. With high optical transmittance properties, it can also be applied in specialized optical or inspection-related applications when required.

9. A wide range of sizes and specifications are available, supporting flexible customization to meet various industrial requirements.

Product specifications

1. Outer diameter D: Ø 0.60~ Ø 20.00mm, the minimum outer diameter tolerance can reach 0.005mm;

2. Thickness H: 0.20~8.00mm, the minimum thickness tolerance is 0.01mm, the parallelism error of the two end faces is not more than 0.02mm, the surface roughness is Rz0.1 (mirror), and the verticality error of the two end faces relative to the inner hole axis is not more than 1°;

3. Inner hole diameter d: Ø 0.13~ Ø 3.00mm, the minimum aperture tolerance can be controlled at 0.004mm, the roundness tolerance and cylindricity tolerance of the inner hole are not greater than the bore diameter tolerance of the bearing;

4. Oil groove: depth h=1/3H, the minimum tolerance can be controlled at 0.04mm, the minimum radius of curvature SR can be controlled at 0.30, and the surface roughness is Rz0.2.

Applications:

Precision spraying systems requiring accurate micro-flow control and stable performance.
High-pressure industrial cleaning applications with long-term wear resistance requirements.
Fuel atomization systems such as oil burners and combustion equipment.
Chemical processing involving corrosive or aggressive liquids.
Electronics and semiconductor manufacturing requiring high-precision fluid delivery.
Inkjet, coating, and printing systems where consistent orifice accuracy is essential.
