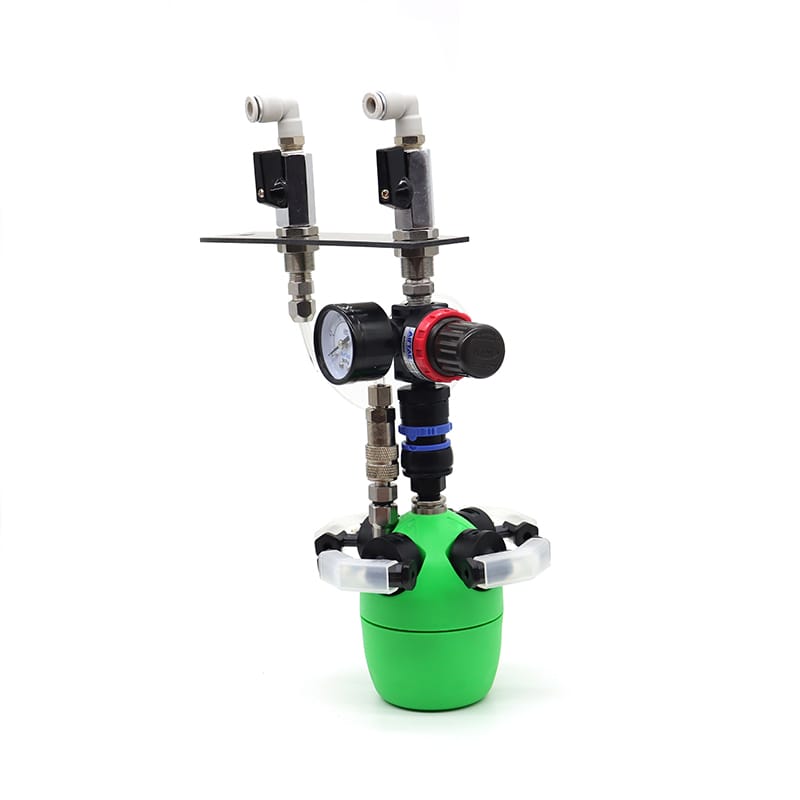

Dry Fog Humidifier

Dry fog humidifier is an industrial humidification nozzle mainly used for humidifying large industrial plants and workshops, eliminating static electricity, cooling, and dust suppression. It offers tailored humidification system solutions for different industries and needs. The dry fog humidifier mixes liquid and air in a two-fluid system to create an ultra-fine mist through a two-stage atomization process, with an average spray particle size of 5-7.5 μm. The humidified area, including floors and equipment surfaces, remains dry without wetting or condensation.

Dry fog humidification tank is known for its non-wetting humidification performance, low energy consumption, high cost-effectiveness, and easy maintenance. Dry fog humidification tank mixes air and water in a two-fluid system, followed by triple atomization through shearing action. Supersonic air emitted from the nozzle further atomizes the droplets, which then collide with mist particles from another nozzle. As they repeatedly shear each other, sound waves at 330,000 to 400,000 Hz further atomize and equalize the droplets, achieving multi-stage atomization for excellent spray effects with particle diameters of 5-7.5 μm.

Air mist humidifier sends tap water and compressed air to a control device for pressure regulation and then to a specially designed nozzle for spraying. Utilizing the cavitation effect, it atomizes water to achieve humidification. The atomized particles of the air mist humidifier are generally controlled at 10-20 μm, with an average size of 10 μm. The uniformity of the spray particles is unparalleled, and the extremely fine mist evaporates quickly, preventing wetting. With atomization efficiency above 99%, the device offers high humidification capacity, low cost, high efficiency, energy savings, ease of use, and easy management.

• Average spray particle size of 5-7.5 μm.
• Maximum spray volume of up to 11 kg/h, providing powerful humidification capacity.
• Humidified areas, including floors and equipment surfaces, remain dry, without wetting or condensation.
• Uses an ultra-compact water tank that resists bacterial growth.
• Energy-saving, with 35% less air consumption compared to similar products.
• Automatic control via timers and controllers.
• No cleaning required if equipped with a pure water treatment device.

Application:

Textile Industry: Controls temperature, eliminates static electricity, and reduces dust to improve textile quality.

Printing Industry: Removes static electricity and maintains stable humidity to prevent paper deformation, reduce breakage, and improve printing speed and efficiency.

Tobacco Industry: Maintains proper relative humidity to prevent leaf damage and ensure optimal moisture content during processing and storage.

Coating Industry: Improves paint adhesion by maintaining humidity, preventing peeling, cracking, and wrinkling while reducing dust and static.

Plastic Industry: Controls humidity and eliminates static electricity in injection molding and plastic manufacturing processes.

HVAC Industry: Integrates with central air conditioning systems for humidification and static control.

Electronics Cleanroom: Provides humidity control and static elimination in semiconductor, PCB, LCD, and IC production and testing environments.

Data Centers: Maintains proper humidity levels and prevents static electricity in server rooms and IT facilities.

Edible Fungus Cultivation: Regulates growing environment humidity to promote stable and high-yield mushroom production.

Artificial Landscape: Creates simulated natural mist effects for landscaping, exhibitions, and visual environments.

Animal Farming: Simulates natural environments for livestock, poultry, and insects while assisting in cooling and disinfection.

Fresh Storage: Maintains freshness, appearance, and moisture of fruits, vegetables, and textiles, extending shelf life and reducing loss.

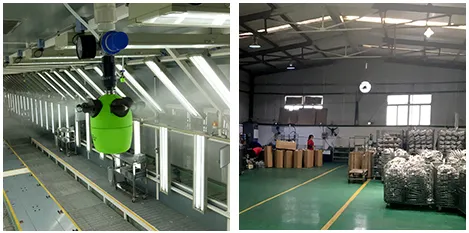

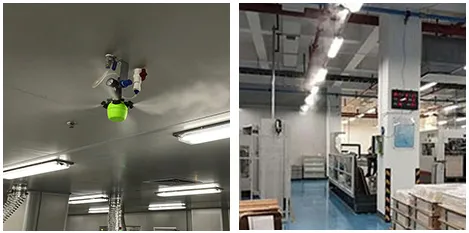

Project cases

Textile industry

• Increases the strength of fibers, yarns, and fabrics
• Eliminates static electricity and improves product quality
• Reduces yarn breakage and improves machine operating efficiency
• Minimizes waste and enhances overall economic performance

Electronics cleanroom

• Eliminates electrostatic discharge and improves product quality
• Prevents damage to electronic components caused by dry air
• Provides functions of humidification, air purification, and dust suppression

Printing workshop

• Eliminates static electricity
• Prevents paper curling and wrinkling
• Avoids paper shrinkage and deformation
• Reduces dust and improves printing quality

Clean workshop

• Increases ambient humidity levels
• Reduces airborne dust particles
• Prevents generation of static electricity
