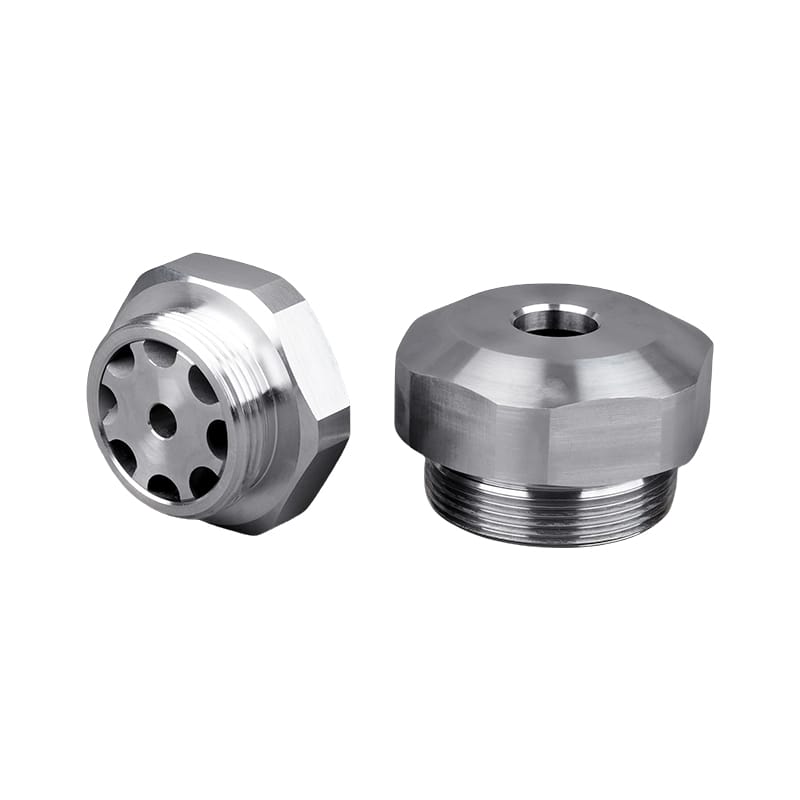

BBS/BBW Short Full Cone Nozzle

BBS/BBW Short Full Cone Nozzle is a compact industrial spray nozzle designed with a special lotus-root-shaped internal blade that delivers uniform full-cone spray distribution with excellent atomization while significantly reducing nozzle length for installation in tight spaces. Constructed for reliable performance across a broad pressure range (0.5–10 bar), it supports 90° and 120° spray angles and flow rates up to 1415 L/min. Suitable for applications such as flue gas desulfurization, waste washing, mechanical parts cleaning, cooling, and dust suppression in industrial systems.

Categories: Full Cone Nozzles, Spray Nozzles

Spray Angle: 90°, 120°

Connection: 1-1/2″, 1-1/4″, 1", 2-1/2″, 2", 3", 3/4", BSPT, NPT

Max Pressure(bar): 10

Min Pressure(bar): 0.5

Max Flow(L/min): 1415

Design features

1. Short body structure reduces overall nozzle length by approximately 35% compared with standard full cone nozzles. This compact design helps solve installation problems in narrow spaces and improves system flexibility.

2. Specially engineered internal vane creates a uniform full cone spray pattern. It ensures even liquid distribution across the entire target area without hollow centers.

3. Lotus-root-shaped vane enhances atomization performance while maintaining stable flow. It improves spray consistency and reduces fluctuations during operation.

4. Large internal flow passage minimizes clogging risk. It allows stable operation when handling liquids containing particles or impurities.

5. Wide flow rate range supports different process requirements. The nozzle performs reliably under various pressure conditions, providing flexibility in industrial systems.

6. Multiple spray angles such as 90° and 120° are available. This allows users to select appropriate coverage for different applications and equipment layouts.

7. Simple structure reduces manufacturing cost and improves reliability. Fewer components also make maintenance easier and faster.

8. Uniform droplet distribution produces medium to large droplets. This improves impact force and liquid penetration in applications such as cooling, cleaning, and gas treatment.

9. Standard threaded connections support easy installation and replacement. The nozzle can be integrated into existing piping systems without complex modification.

10. Efficient spray performance reduces liquid waste and improves overall process efficiency. It helps lower operating costs in industrial applications.
