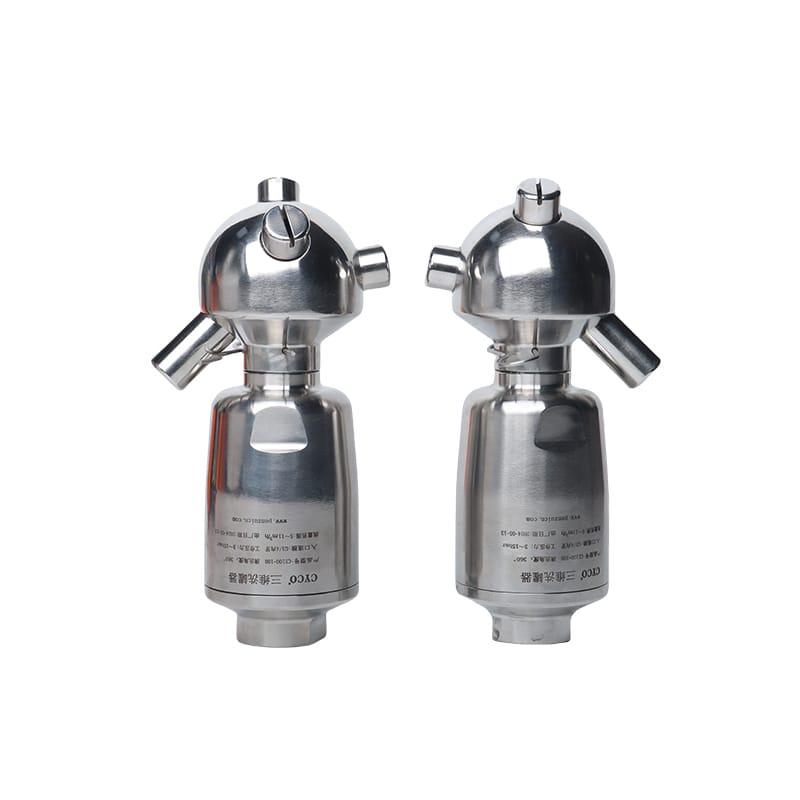

CY100 Rotary Cleaning Ball

SKU: CY100

CY100 Rotary Cleaning Ball delivers powerful 360° self-rotating cleaning with smooth operation and high impact force, ideal for interior cleaning of chemical storage tanks and industrial vessels. Constructed from hygienic stainless steel materials (316L, PEEK, PPS), it generates strong rotating jets for efficient residue removal while reducing cleaning dead zones. Designed for demanding industries such as dairy, food, pharmaceutical, beer, chemical, and industrial fermentation applications.

Categories: Spray Nozzles, Tank Cleaning Nozzles

Cleaning Mode: 3D Rotation

Connection: 3/4"

Material: 316L, PEEK, PPS

Max Cleaning Diameter: 19.69'

Max Flow(L/min): 145

Max Pressure(bar): 10

Max Temperature: 200°F

Min Entry Diameter: 4.33"

Min Pressure(bar): 4

CY100 Rotary Cleaning Ball operates smoothly with high impact force, providing rotational cleaning. Made of stainless steel, it is hygienic and designed for 360° self-rotating cleaning inside chemical storage tanks. It is specially designed for industries such as dairy, food, pharmaceuticals, beer, chemicals, industrial fermentation, and other applications that require high-impact cleaning.

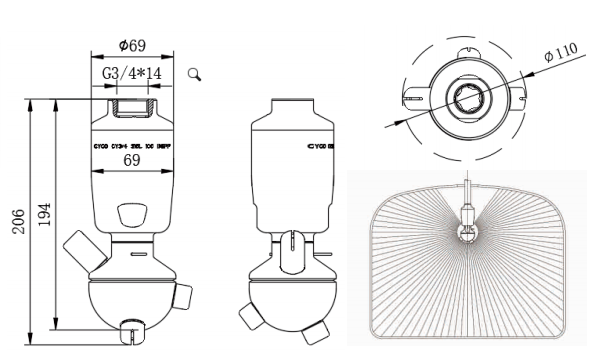

360° Dead-Zone-Free Cleaning: During operation, ensure that the four nozzle slots are positioned vertically as shown in the diagram. Choose an appropriate nozzle angle based on the size of the cleaning tank to ensure sufficient impact force. (For larger tanks, a smaller fan angle is recommended, just enough to cover the tank.) This achieves comprehensive 360° cleaning.

Sealing: Dynamic sealing is used at leakage points to reduce leakage, conserve cleaning fluid, and generate greater water impact force.

Higher Impact Force: The nozzles feature a unique flow-stabilizing design that concentrates the jet stream, providing greater impact and more thorough cleaning.

Cleaning Mode	3D Rotation
Connection	3/4"
Material	316L, PEEK, PPS
Max Cleaning Diameter	19.69'
Max Flow(L/min)	145
Max Pressure(bar)	10
Max Temperature	200°F
Min Entry Diameter	4.33"
Min Pressure(bar)	4
