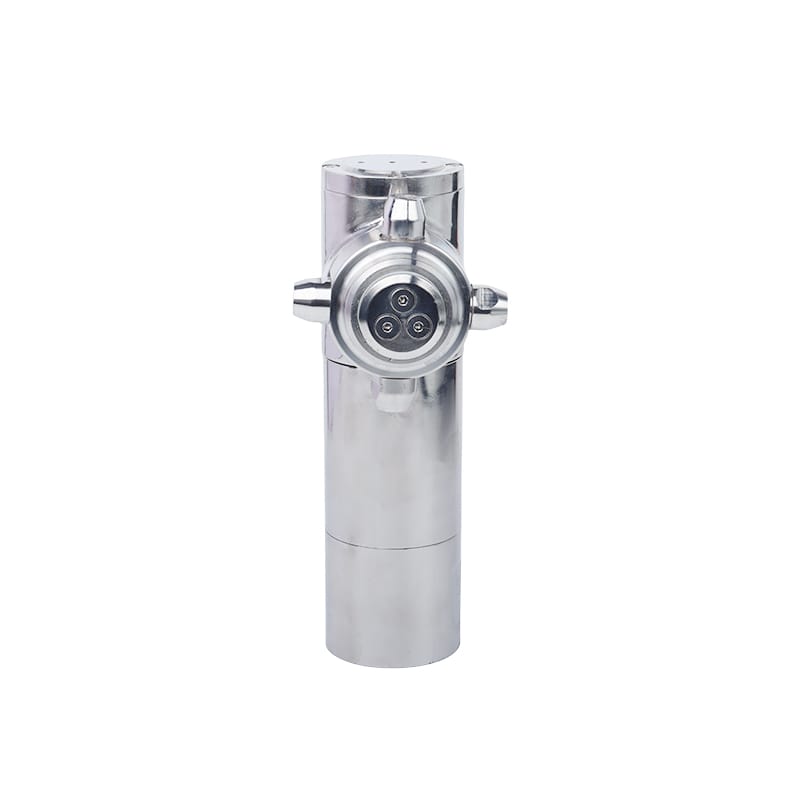

CY15 Tank Cleaning Nozzle
CY15 Tank Cleaning Nozzle delivers powerful 360° dead-zone-free cleaning with a dynamic 3D rotation design and four precision nozzles for comprehensive interior coverage. Constructed from durable 316L stainless steel and PTFE, it features dynamic sealing to reduce leakage and a unique flow-stabilizing design for higher impact force and efficient residue removal. Ideal for high-impact cleaning of reactors, tanks, and industrial containers across food, pharmaceutical, and chemical industries.
360-Degree Spray Coverage: The industrial-grade rotating nozzle enables 360-degree all-around tank cleaning with a maximum coverage diameter of 15 meters, ensuring thorough and efficient tank cleaning.
Rugged 316L Stainless Steel Construction: Manufactured from corrosion-resistant 316L stainless steel, this rotary nozzle withstands highly corrosive chemicals and high-pressure environments, minimizing downtime caused by maintenance.
Independent gearbox design for greater durability: Unlike integrated designs, engineered independent gearbox of the CY15 Tank Cleaning Nozzle specially is better equipped to withstand the continuous reaction forces caused by high water pressure. The gears are individually protected, making them less susceptible to jamming caused by debris.
Self-cleaning and self-lubricating capabilities: While delivering powerful cleaning performance, the system utilizes the cleaning solution for self-cleaning and self-lubrication. This eliminates hard-to-reach areas inside the tank and addresses potential maintenance issues. With no need for shutdowns for maintenance, it ensures smooth, long-lasting operation and reduces maintenance costs.
Application:
Three-dimensional cleaning of small and medium-sized containers, suitable for high-impact cleaning of reactors, tanks and industrial containers in 200+ industries such as biological fermentation, biopharmaceuticals, food and beverages, new energy electrolytes and petrochemicals, such as fermentation tanks, beer tanks, pharmaceutical tanks, chemical tanks, chemical processing tanks, etc. that require high-impact cleaning
| Cleaning Mode | 3D Rotation |
|---|---|
| Connection | 1-1/2″, BSPT |
| Material | 316L, PTFE |
| Max Cleaning Diameter | 39.37' |
| Max Flow(L/min) | 190 |
| Max Pressure(bar) | 22 |
| Max Temperature | 200°F |
| Min Entry Diameter | 4.33" |
| Min Pressure(bar) | 5 |
