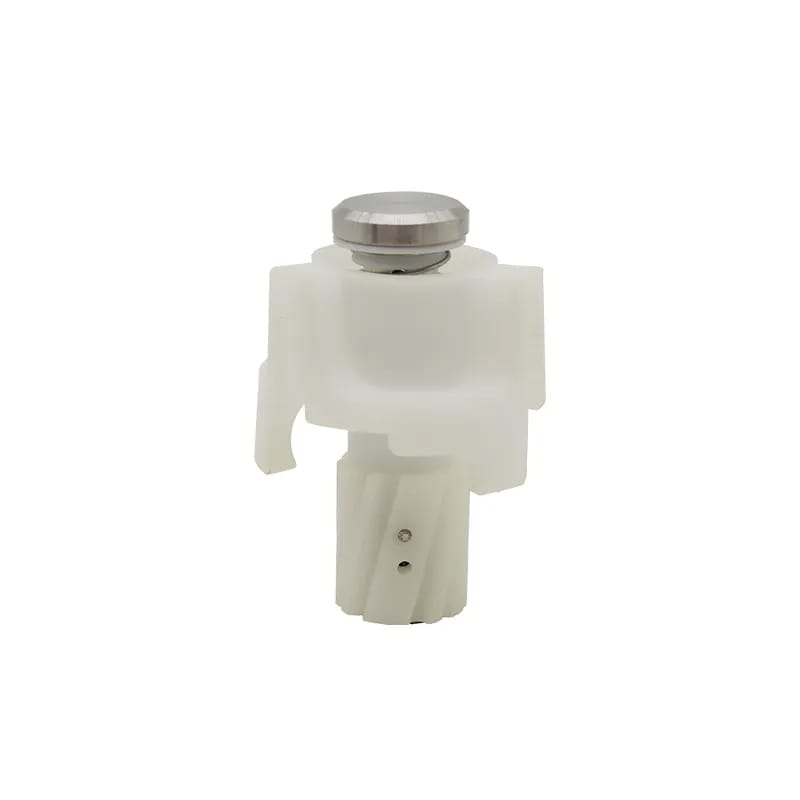

M-50 Rotary Tank Cleaning Nozzle
M-50 Rotary Tank Cleaning Nozzle features a professional drive-type stepped rotor design that generates high-impact rotational water flow for thorough internal cleaning of reactors, tanks, and containers in industries such as biopharmaceuticals, biological fermentation, food & beverage, chemical processing, and petroleum. The PTFE material and Teflon bushing prevent jamming and corrosion, while the unique spring structure supports self-cleaning. Easy pin connection allows simple assembly and disassembly. Rated for up to 12.8 ft cleaning diameter with smooth rotation and corrosion-resistant performance.
High cleaning power – The stepped rotor design of M-50 Rotary Tank Cleaning Nozzle creates a high-impact rotating water jet that scrubs tank walls clean.
Wide coverage – It rotates smoothly and evenly, with a coverage diameter of up to 12.8 feet.
Adaptive to harsh environment – Built to hold up in harsh environments like chemical and petroleum plants — resists acid, alkali, and corrosion.
Bushing prevents jamming and rust – PTFE body with Teflon bushing prevents the nozzle from jamming or rusting over time.
Self-cleaning spring design – The unique upper and lower spring design allows the nozzle to self-clean, cutting down on manual maintenance.
Convenient connection type – Simple pin connection makes the nozzle quick to handle and easy to service without special tools.
Easy to maintain – A simple pin connection means you can take it apart and put it back together by hand — no special tools needed.
Fits existing tank setups – Fits through a 1.97-inch entry port, so it works with most existing tank systems.
| Cleaning Mode | Rotation |
|---|---|
| Connection | Pin Connection |
| Material | PTFE |
| Max Cleaning Diameter | 12.8' |
| Max Flow(L/min) | 132 |
| Max Pressure(bar) | 3 |
| Max Temperature | 200°F |
| Min Entry Diameter | 1.97" |
| Min Pressure(bar) | 1.5 |
