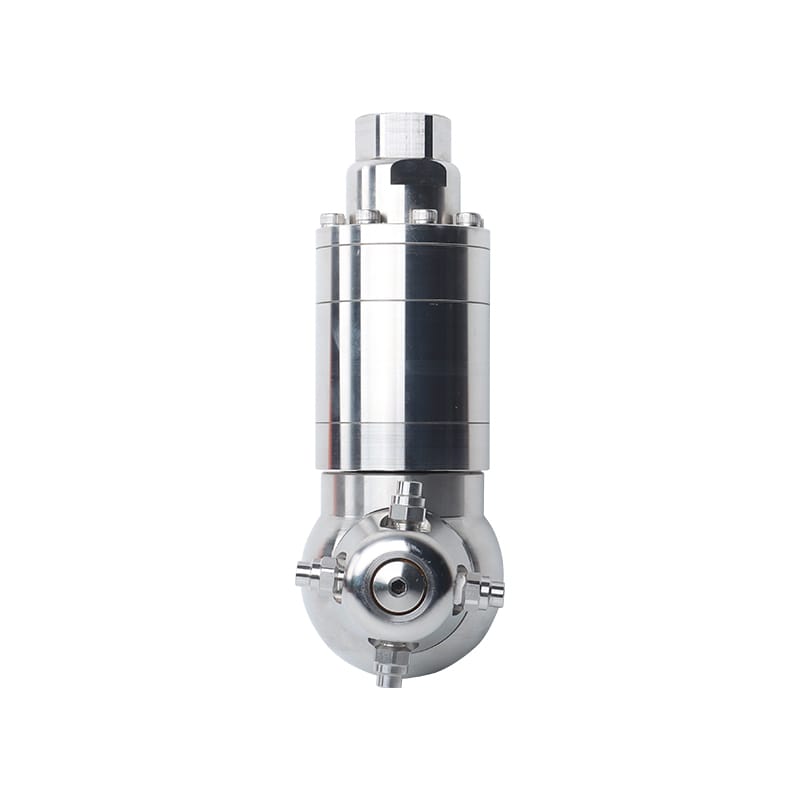

Spray Ball SR42
The Spray Ball SR42 is a high-pressure 3D tank cleaning nozzle applied to small to medium tanks (1-3 meters in diameter). Driven entirely by cleaning liquid (30-160 bar), it requires no external power. It is an automatic nozzle that enables automatic rotation and all-round cleaning inside the tank. Made of 316L stainless steel, aluminum bronze, and engineering plastic, it handles temperatures up to 90°C and fits openings as small as 130mm. A G1/2″ female thread connection is standard.
Compared to low-pressure spray balls, the Spray Ball SR42 delivers more concentrated impact, better cleaning results, higher efficiency, and significant water savings. The flow-optimized nozzles ensure a laminar jet for long-distance cleaning. Typical applications include tanks, drums, and reactors in the pharmaceutical, food, beverage, chemical, coating, and biotech industries.

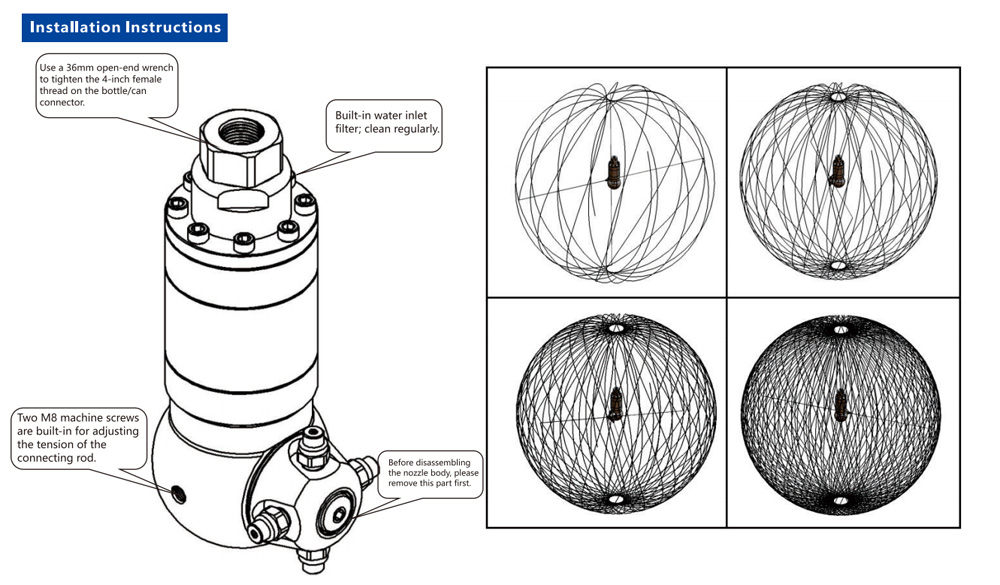

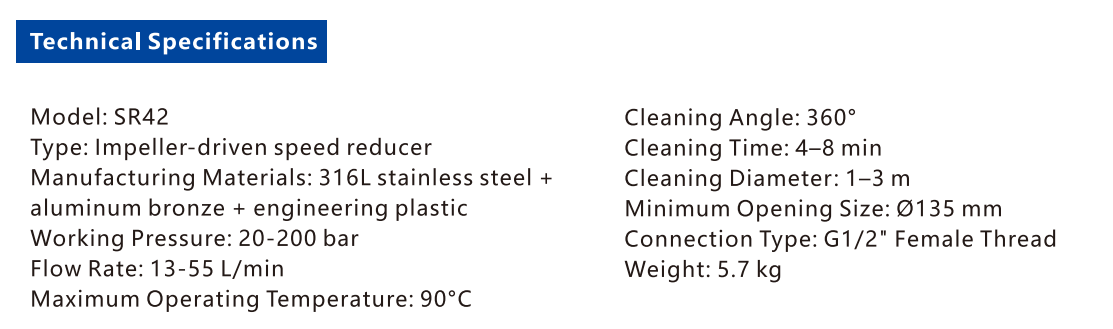

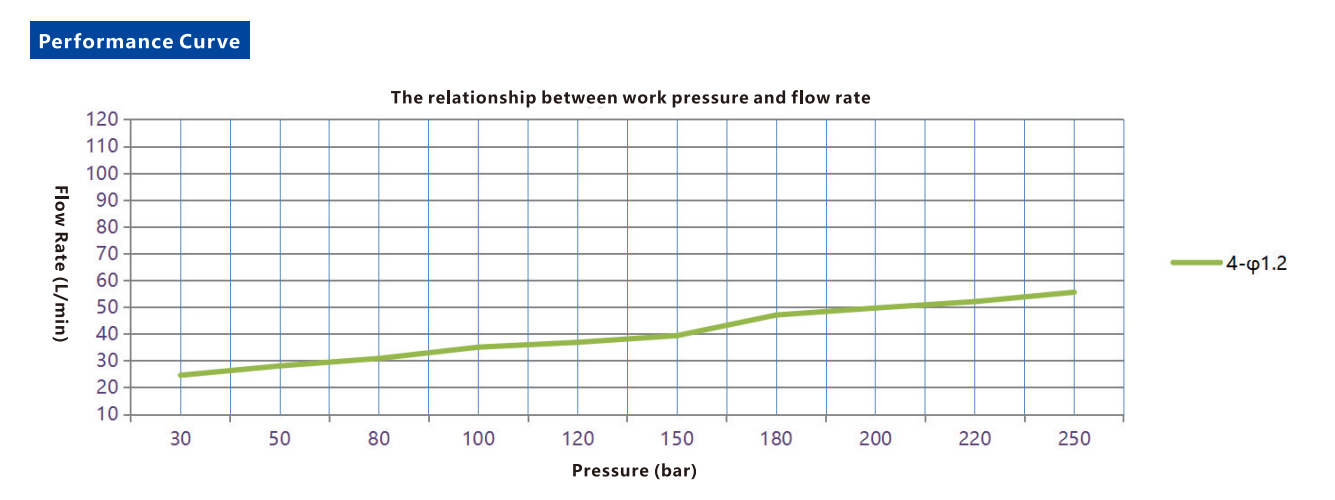

The Spray Ball SR42 adopts an impeller-driven speed reduction mechanism with an internal planetary gear transmission, offering a compact structure and strong load capacity. The cleaning liquid drives it to achieve a compound motion of vertical-axis rotation and nozzle spin, completing a 360° spherical orbital coverage. Within one cleaning cycle, the spray trajectory passes over the same point twice, ensuring no dead spots. The product supports an operating pressure of 20–200 bar, a flow rate of 13–55 L/min, can pass through a minimum opening of Ø135 mm, weighs 5.7 kg, and features a G1/2″ female thread connection.
Features of the rotating SR42 cleaning ball:
1. It only needs water to drive its own rotation, without the need for external power such as air source or power supply
2. It adopts a unique planetary gear transmission, with a compact structure, strong bearing capacity, and a larger water flow area
3. The leakage point adopts dynamic seal to reduce leakage, save cleaning fluid, and generate greater water flow impact
4. It adopts streamlined nozzle and turbulent linear spray to ensure the concentration of water flow for long-distance cleaning and strong impact
Application:
Widely used for cleaning tanks/kettles/ton barrels/sealed containers in the pharmaceutical, food, beverage, coating, building materials, chemical, pigment, resin, scientific research, dairy, daily chemicals, cosmetics, bioengineering, agricultural engineering, processing tools and other industries.
| Cleaning Mode | 3D Rotation |
|---|---|
| Material | 316L, Aluminum Bronze, Engineering Plastics |
| Connection | 1/2" |
| Max Cleaning Diameter | 9.84' |

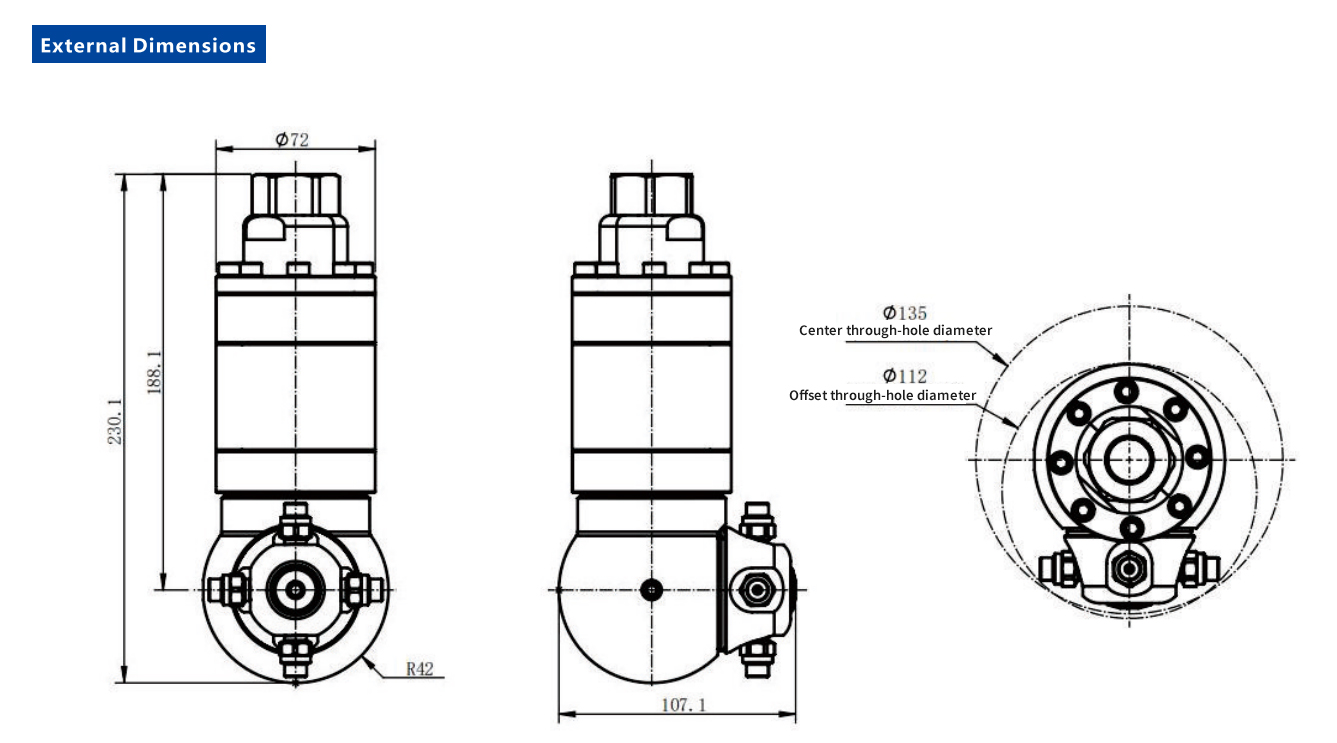

| Min Entry Diameter | 7.09" |
| Max Temperature | 195°F |
| Min Pressure(bar) | 30 |
| Max Pressure(bar) | 200 |
