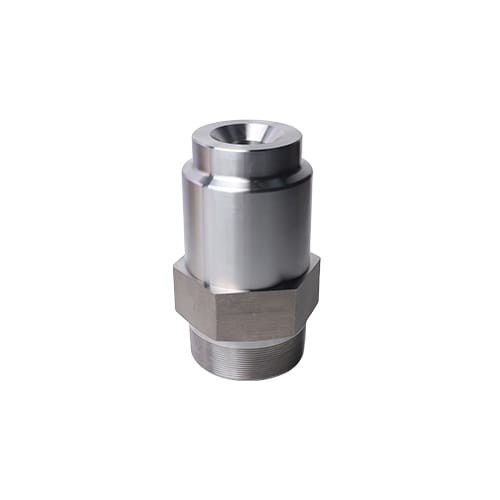

DT Large Flow Full Cone Nozzle

DT Large Flow Full Cone Nozzle is a high-capacity industrial spray nozzle engineered for uniform full-cone fluid distribution and extremely large flow rates up to 8180 L/min under typical operating pressures (0.2–7 bar). Designed with a wide flow channel and available in multiple thread sizes (1-1/2″ to 6″, BSPT/NPT), it produces consistent solid spray coverage with adjustable spray angles (60°, 90°, 120°). Ideal for demanding applications such as flue gas desulfurization, exhaust gas scrubbing, dust removal, gas cooling, and fire prevention systems in power plants, ships, and industrial facilities.

Categories: Full Cone Nozzles, Spray Nozzles

Spray Angle: 60°, 90°, 120°

Connection: 1-1/2″, 1-1/4″, 1", 2-1/2″, 2", 3", 3/4", 4", 6″, BSPT, NPT

Max Pressure(bar): 7

Min Pressure(bar): 0.2

Max Flow(L/min): 8180

Spray Angle: 60°, 90°, 120°
Pipe thread: BSP, NPT
Pipe size: 3/4 – 6
Pressure: 0.2 – 7 Bar
Flow rate: 6.25 – 8180 L/min

Applications

Flue gas desulfurization and dust removal, ship flue gas desulfurization, power plant flue gas desulfurization, waste gas washing, tail gas treatment, gas cooling, dust removal, fire prevention and fire extinguishing, etc.

Spray Angle	60°, 90°, 120°
Connection	1-1/2″, 1-1/4″, 1", 2-1/2″, 2", 3", 3/4", 4", 6″, BSPT, NPT
Max Pressure(bar)	7
Min Pressure(bar)	0.2
Max Flow(L/min)	8180
