Cable Reel CY-L30/L55/L70 Series

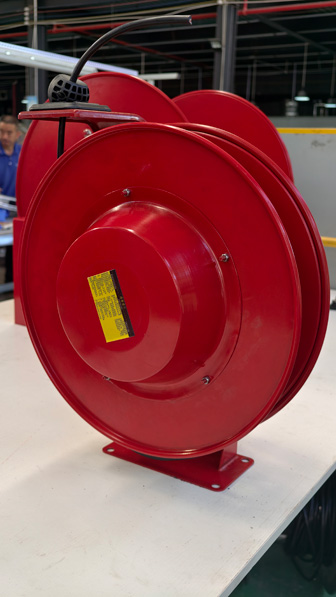

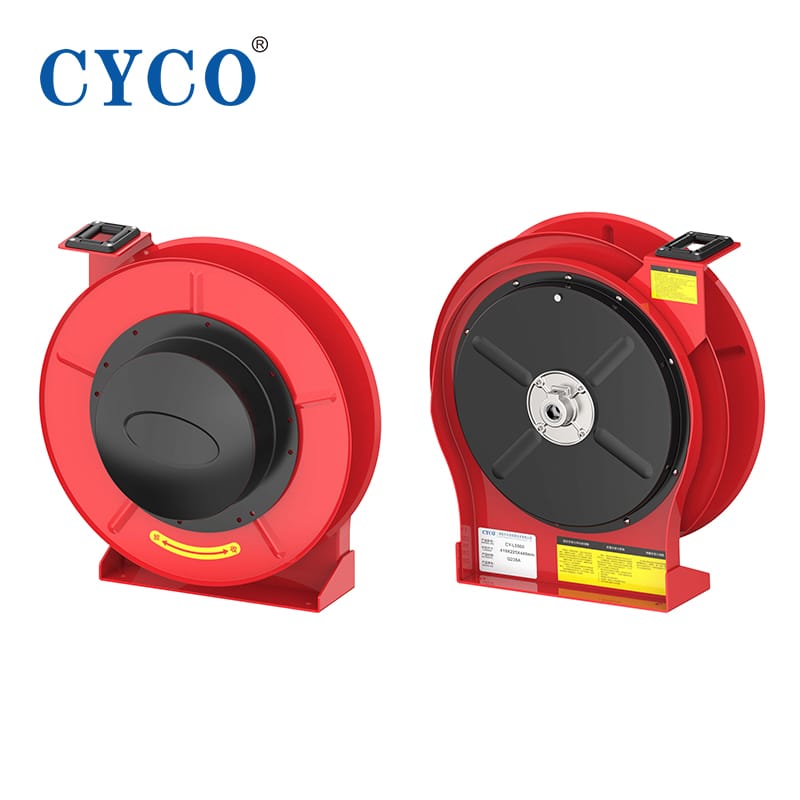

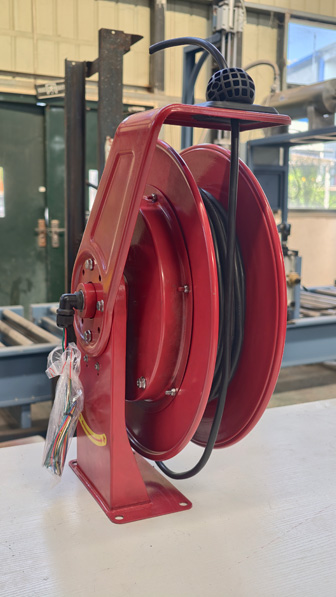

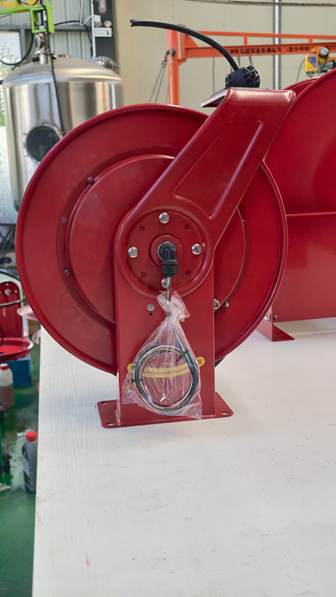

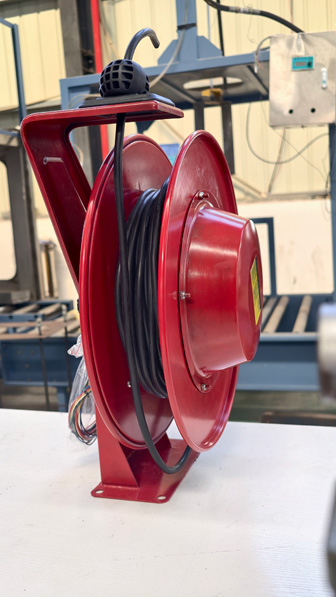

Cable Reel CY-L30/L55/L70 Series is a versatile industrial cable management reel designed to organize and deploy power, signal, and communication cables efficiently in demanding work environments. It features an adjustable buffer stop to hold any desired cable length outside the reel and an adjustable guide arm for flexible routing and alignment. Equipped with a high-quality closed drive slip ring with up to 500,000 cycles service life and precious metal contacts for precision signal transmission, this series supports power, network communication, video, RS232, and other cable solutions. Lightweight yet robust, the reels are suitable for stage lighting, TV studios, performance halls, new energy charging systems, drone and ROV control systems, and underwater robotics, and can be supplied with dedicated flexible or tensile cables and customized designs on request.
Adjustable buffer stop: allows any desired length of rope to be maintained outside the reel.
Adjustable guide arm: multiple guide arm positions for multi-functional use and on-site adjustment.
Closed drive slip ring: high-quality slip ring with a design life of 500,000 times, precious metal slip rings meet all types of precision signal communications.
High strength and light weight: mold parts are used to reduce the overall weight of the reel to meet the vibration requirements of the vehicle.
Used for stage lighting in TV studios, bars, and performance halls, charging systems in new energy and other industries, communication control systems for drones, underwater robots (ROVs), etc.;
Provide power, network communication, video transmission, R232 and other signal reel solutions.
Can be configured with dedicated flexible cables and tensile cables.
Customized design is available.
| Model | Cable specifications | Cable specifications | Cable length | Volt | Ampere | Weight | Model (cable not included) |
Weight | Size |
|---|---|---|---|---|---|---|---|---|---|
| mm² | m | V | A | kg | kg | Number | |||
| LB30-9-153-3C | Cables, plugs, sockets | 3*1.5 | 9 | 220 | 10 | 9 | LB30-00 | 8 | 1 |
| LB30-9-133-X | Cable (without plug and socket) | 3*2.5 | 9 | 220 | 10 | 9 | LB30-00 | 8 | 1 |
| LB40-15-153-3C | Cables, plugs, sockets | 3*1.5 | 15 | 220 | 10 | 12 | LB40-00 | 9 | 2 |
| LB41-12-154-X | Cable (without plug and socket) | 3*1.5+1 | 12 | 380 | 10 | 12 | LB41-00 | 9 | 2 |
| LB41-12-134-X | Cable (without plug and socket) | 3*2.5+1*1.5 | 12 | 380 | 16 | 12 | LB42-00 | 9 | 2 |
| LB45-12-176-X | Signal line | 6*1 | 12 | 24 | 3 | 11 | LB45-00-176-X | 9 | 2 |
| LB55-15-134-X | Cable (without plug and socket) | 3*2.5+1*1.5 | 15 | 380 | 16 | 22 | LB55-00-134-X | 16 | 3 |
| LB55-15-114-X | Cable (without plug and socket) | 3*4+1*2.5 | 15 | 380 | 20 | 23 | LB55-00-114-X | 16 | 3 |
| L70-21-134-X | Cable (without plug and socket) | 3*2.5*1*1.5 | 21 | 380 | 16 | 27 | L70-00-134-X | 19 | 4 |
| L70-15-094-X | Cable (without plug and socket) | 3*6+1*4 | 15 | 380 | 30 | 27 | L70-00-094-X | 19 | 4 |
| L70-15-135-X | Cable (without plug and socket) | 5*2.5 | 15 | 380 | 16 | 26 | L70-00-135-X | 19 | 4 |
| L70-15-095-X | Cable (without plug and socket) | 3*6+2*4 | 15 | 380 | 30 | 29 | L70-00-095-X | 19 | 4 |
| L70-15-1512-X | Cable (without plug and socket) | 12*1.5 | 15 | – | 10 | 26 | L70-00-1512-X | 19 | 4 |
| L70-20-1E2 | Network cable | 20 | – | – | 20 | L70-00-1E2 | 19 | 4 | |
| L70-30-134-X | Cable (without plug and socket) | 3*2.5+1*1.5 | 30 | 380 | 16 | 34 | L70-00-134-X | 23 | 5 |
| L70-23-094-X | Cable (without plug and socket) | 3*6+1*4 | 23 | 380 | 30 | 36 | L70-00-094-X | 23 | 5 |
| LC70-25-094-X | Cable (without plug and socket) | 3*6+1*4 | 25 | 380 | 30 | 37 | LC70-00-094-X | 23 | 5 |
| LC70-20-095-X | Cable (without plug and socket) | 3*6+2*4 | 20 | 380 | 30 | 36 | LC70-00-095-X | 23 | 5 |
| L70-30-1E2 | Cable (without plug and socket) | Network cable | 30 | – | – | 24 | L70-00-1E2 | 23 | 5 |
| L80-30-134-X | Cable (without plug and socket) | 3*2.5+1*1.5 | 30 | 380 | 16 | 48 | L80-00-134-X | 37 | 7 |
| L90-20-075-X | Cable (without plug and socket) | 5*10 | 20 | 380 | 60 | 84 | L90-00-075-X | 64 | 670*472*667 |
| WC70-15 | Cable, welding clamp | 1*75 | 15 | 90 | 400 | 38 | WC70-00 | 23 | 6 |
| WC80-23 | Cable, welding clamp | 1*75 | 23 | 90 | 400 | 64 | WC80-00 | 41 | 7 |
| L80-000-DS | Flat wire, this product is not wired yet | 13*4 | 13 | – | 20 | – | L80-000-DS | 50 | 470*597*630 |
| Motor drive | |||||||||
| LNJ18230-095-X | Cable (without plug and socket) | 3*6+2*4 | 70 | 380 | 30 | 60 | LNJ18-000-095-X | 40 | 582*460*536 |

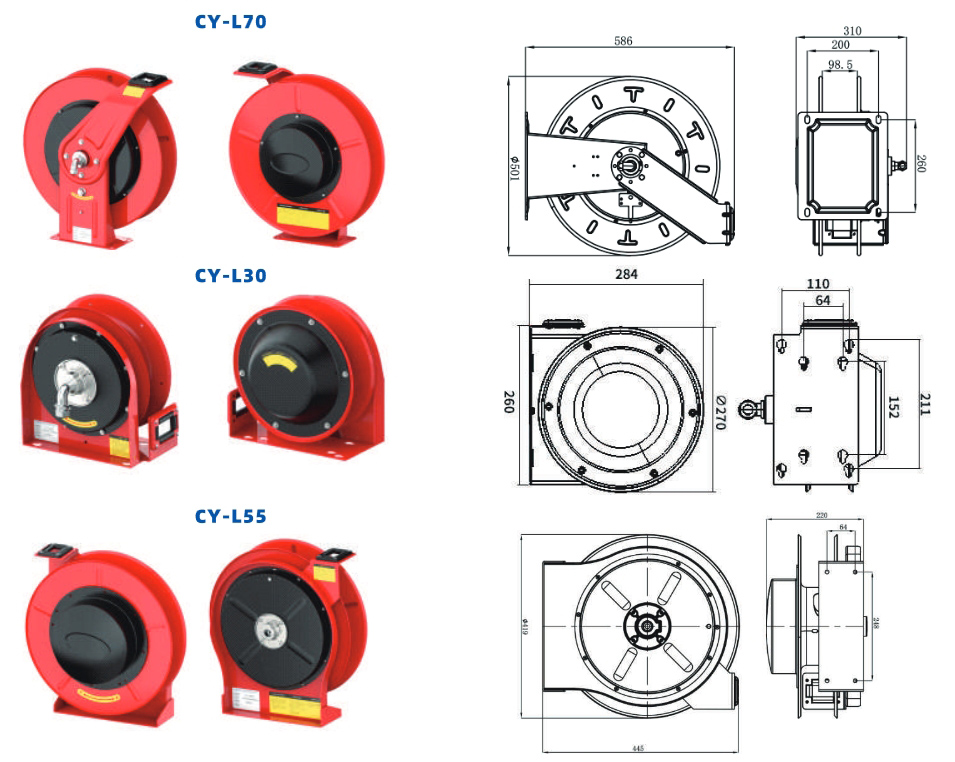

| Product Size | ||||
|---|---|---|---|---|
| No. | 1 | 2 | 3 |  |
| mm | mm | mm | ||
| A | 283 | 332 | 446 | |
| B | 281 | 305 | 440 | |
| C | 203 | 203 | 248 | |
| D | 64 | 64 | 64 | |
| E | 190 | 245 | 226 | |
| The diameter of the four mounting holes at the bottom of the base is 8.7mm | ||||
| Product Size | ||||
|---|---|---|---|---|
| No. | 4 | 5 | 6 |  |
| mm | mm | mm | ||
| A | 528 | 528 | 528 | |
| B | 483 | 483 | 483 | |
| C | 198 | 198 | 198 | |
| D | 98 | 98 | 98 | |
| E | 277 | 320 | 334 | |
| The diameter of the four mounting holes at the bottom of the base is 13.1mm | ||||
| Product Size | ||
|---|---|---|
| No. | 7 |  |
| mm | ||
| A | 610 | |
| B | 645 | |
| C | 254 | |
| D | 600 | |
| E | 152 | |
| The diameter of the four mounting holes at the bottom of the base is 13.1mm | ||
