Manual/Motor Driven Hose Reel CY-E39 Series

Manual/Motor Driven Hose Reel CY-E39 Series

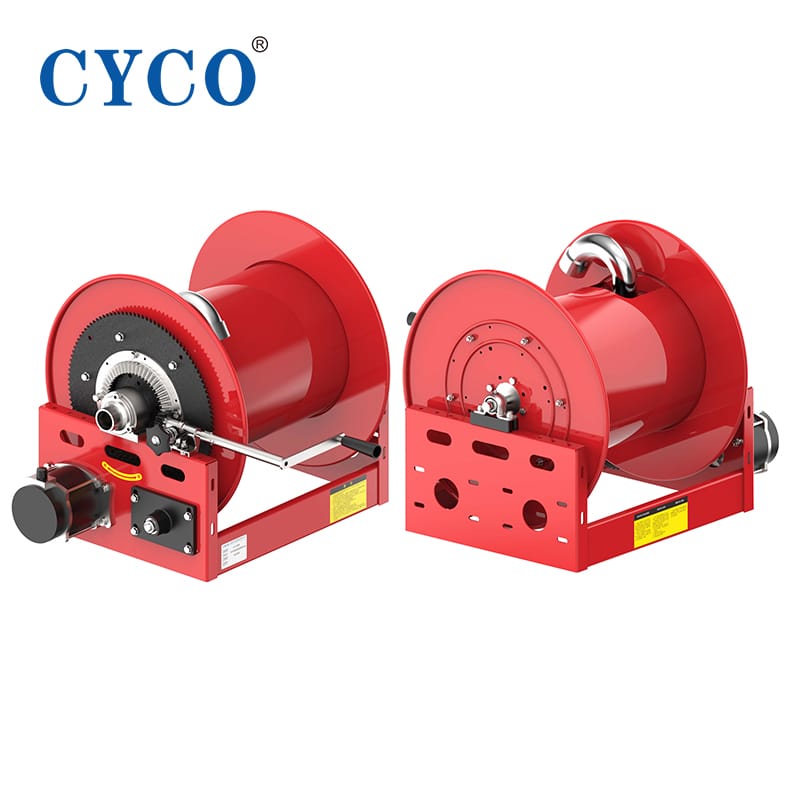

Model: CY-E39

Manual/Motor Driven Hose Reel CY-E39 Series is a heavy-duty industrial hose reel engineered for rugged performance in workshops, factories, and vehicle-mounted systems. Built more robust and compact than traditional hand-crank reels, it can store up to 99 meters of hose (depending on hose size) and supports manual crank, electric motor, pneumatic motor, or hydraulic motor drive options for flexible retraction and payout. Featuring a fully bolted structure, full-flow swivel joint, reinforced steel frame, and anti-vibration/self-locking fasteners, this motorized hose reel delivers reliable, organized hose management in harsh environments. It’s widely used in industrial workshops, vehicle-mounted systems, construction machinery, hydraulic systems, high-pressure cleaning, lubrication service trucks, mining equipment, and outdoor fluid transfer operations.

Max Pressure(bar): 300

Min Pressure(bar): 200

Device Dimensions: 918mm x 838mm x 680mm

Material: Q235

Design Features:

Manual & Motor Driven Operation: The reel combines manual crank functionality with optional electric drive, providing flexible operation for different working conditions. As a powered hose reel, it enables efficient hose retrieval while maintaining reliable manual operation when power is unavailable.
Stronger and More Compact Structure: Compared with traditional manual hose reels, CY-E39 manual/motorized hose reel features a more robust and compact construction that saves installation space while maintaining high structural strength.
Large Hose Capacity: Designed as a heavy duty hose reel for industrial fluid transfer applications, the CY-E39 Series accommodates hose up to 99meters in length while maintaining smooth operation and reliable hose management in industrial applications.
Full Bolted Construction: Fully bolted structural design enhances overall stability and strength while simplifying maintenance and component replacement.
Heavy-Duty Steel Frame & Reinforced Drum: Equipped with a heavy-duty steel frame, wheel-bearing support, and reinforced drum structure for greater load capacity and extended service life.
Full Flow Swivel Joint: High-quality full-flow swivel joint ensures smooth media transfer, reduces pressure loss, and improves operational reliability.
Shock-Resistant Self-Locking Fasteners: Fasteners feature anti-vibration and self-locking functions, maintaining secure connections even under frequent vibration or mobile working conditions.
Smooth Hose Retraction & Deployment: Stable reel operation helps reduce hose tangling, twisting, and uneven winding while keeping the workplace organized.
Corrosion-Resistant Industrial Structure: Metal components are treated with corrosion-resistant coatings, offering excellent resistance to rust, oil, and wear for industrial and outdoor environments.

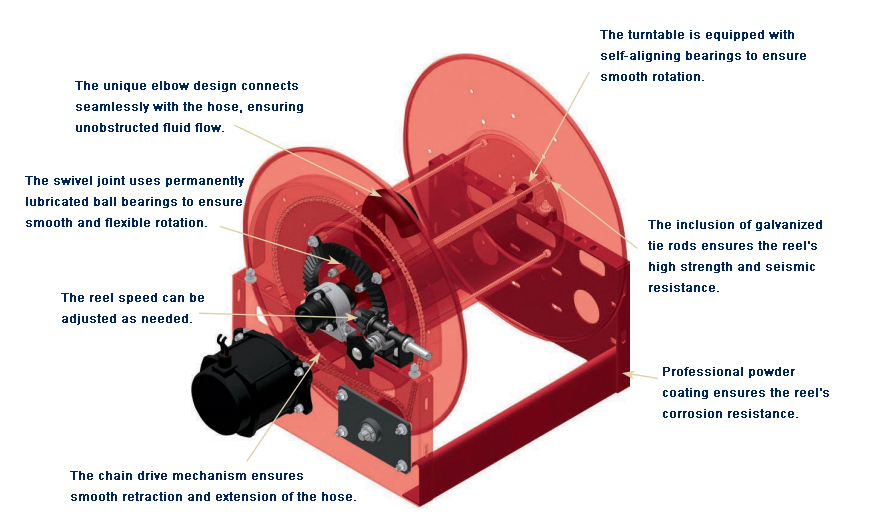

Internal Structural Design:

The CY-E39 Series is engineered with a reinforced transmission system, self-aligning bearings, and a heavy-duty reel structure to ensure smooth hose operation, reliable power transmission, and long service life in demanding industrial environments.

CY-E39 Features

Reel Dimensions & Configuration Options:

Available drive options include Manual Crank (CRK), Electric Motor (EP), Air Motor (A), and Hydraulic Motor (H). Dimensions may vary slightly depending on the selected drive system.

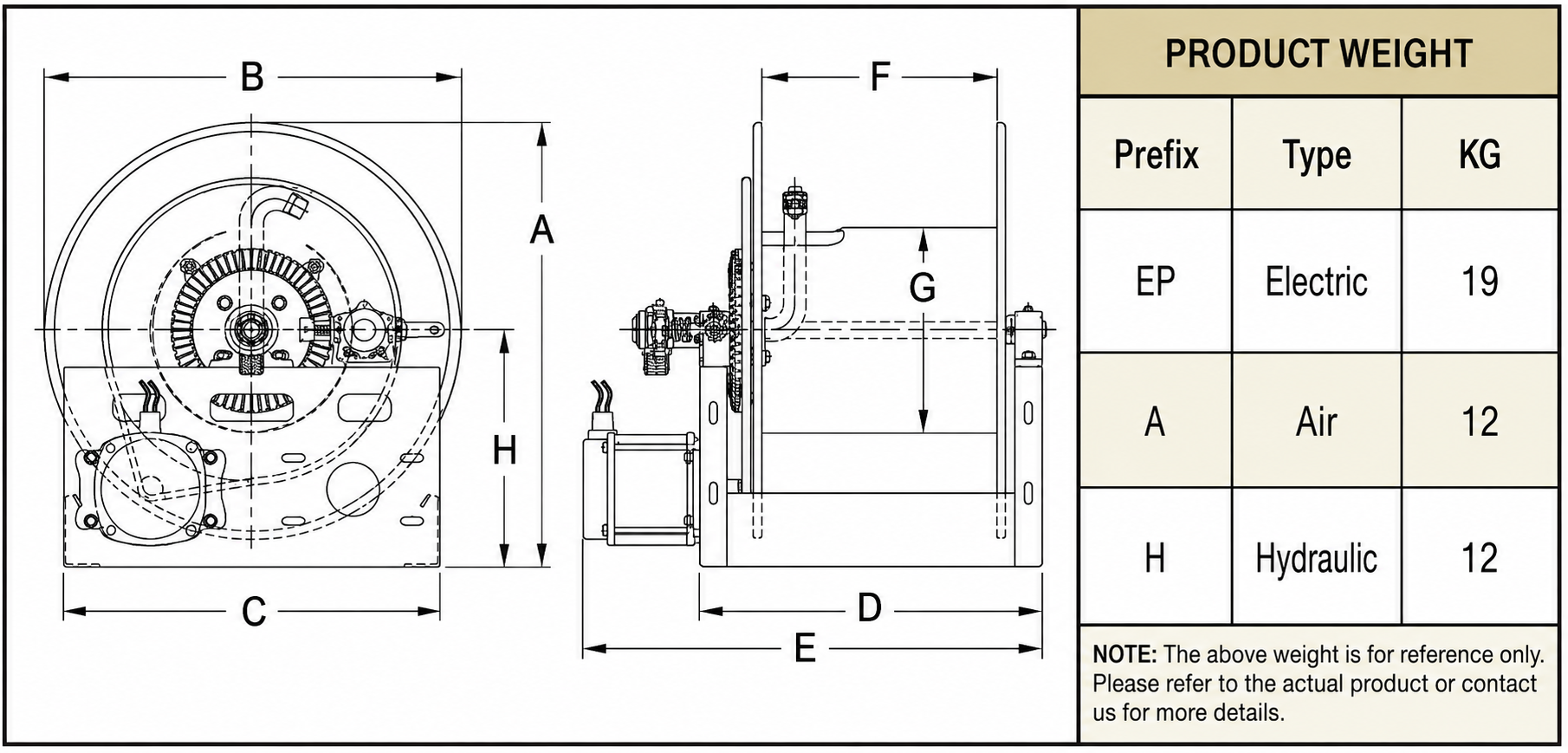

Weight of Manual/Motor Driven Hose Reel CY-E39 Series

Hose Inner Diameter	(mm)	19	25	32	35	38	Reel Size and Hose Capacity
Hose Outer Diameter	(mm)	33	40	46	51	52	Code description: CRK: manual drive; ELC: electric motor drive; AIR: pneumatic motor drive; HYD: hydraulic motor drive
Model	Accommodates hose lengths (other lengths available)						Weight (kg)	A (mm)	B CRK (mm)	B ELC (mm)	B AIR (mm)	B HYD (mm)	C (mm)	D (mm)	E CRK (mm)	E ELC (mm)	E AIR (mm)	E HYD (mm)	F (mm)	G (mm)	H (mm)
E39-19-20	m	—	21	20	18	17	42	572	533	533	533	533	533	660	762	838	813	813	508	286	330
E39-23-12	m	—	30	18	18	15	39	622	584	584	584	584	533	457	559	635	610	610	305	286	330
E39-23-20	m	—	52	34	32	29	42	622	584	584	584	584	533	660	762	838	813	813	508	286	330
E39-23-26	m	—	69	43	41	38	45	622	584	584	584	584	533	813	914	991	965	965	660	286	330
E39-23-28	m	—	73	46	44	41	47	622	584	584	584	584	533	864	965	1041	1016	1016	717	286	330
E39-23-36	m	—	99	58	56	55	50	622	584	584	584	584	533	1067	1168	1245	1219	1219	914	286	330
E39-25-12	m	—	41	27	18	15	40	673	635	635	635	635	533	457	559	635	610	610	305	286	356
E39-31-16	m	—	93	64	52	46	44	826	787	787	787	787	610	559	660	737	711	711	406	286	432
E39-31-20	m	—	111	88	64	58	45	826	787	787	787	787	610	660	762	838	813	813	508	286	432

Common Applications:

The CY-E39 Series is widely used as a motorized hose reel for industrial equipment, service vehicles, mobile operation units, high-pressure cleaning systems, and outdoor fluid transfer applications.
