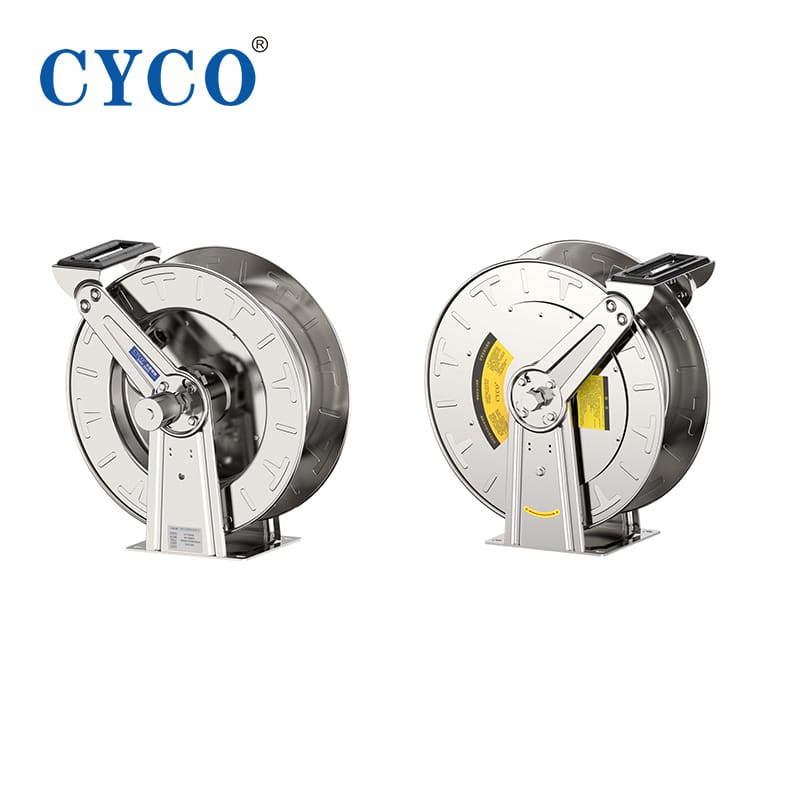

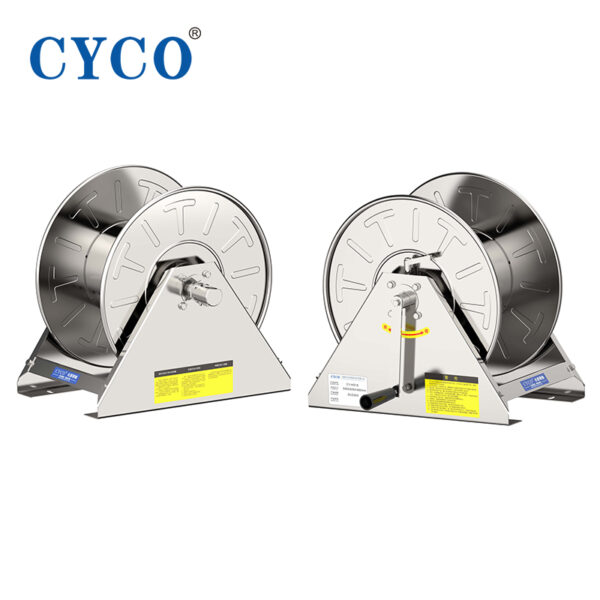

Retractable Hose Reel CY-DS84/CY-DS900/CY-HS18 Series

Retractable Hose Reel CY-DS84/CY-DS900/CY-HS18 Series

The CY-DS84/CY-DS900/CY-HS18 Series is a Retractable Hose Reel range for air, water, oil, grease, and fluid transfer applications. Featuring stainless steel construction, compact structure, and reliable hose storage performance, these reels help reduce hose wear, tangling, and workplace clutter while improving operational efficiency. They support wall, ceiling, floor, and vehicle-mounted installation for flexible industrial use.

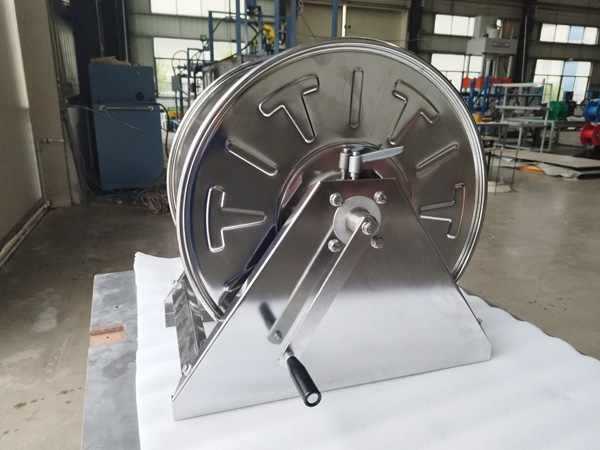

The series includes spring-driven automatic Retractable Hose Reel models and manual hand-crank configurations. With corrosion-resistant stainless steel components and a robust construction, each Heavy Duty Stainless Steel Hose Reel is suitable for workshops, industrial plants, cleaning operations, firefighting systems, marine facilities, and outdoor service applications.

Material: 304, 316L

Max Pressure(bar): 300

Min Pressure(bar): 200

Design Features

Adjustable buffer stop: allows any desired length of rope to be maintained outside the reel.

Adjustable guide arm: multiple guide arm positions facilitate versatile use and field adjustment.

Enclosed drive spring: the drive mechanism is enclosed to protect it from environmental factors.

Long-life drive spring: the clutch-type reel shaft core almost eliminates the possibility of spring damage caused by reverse winding of the reel.

Corrosion and stain resistance: made of 304 stainless steel stamping parts, with surface electrochemical treatment.

Common Applications

These Retractable Hose Reel models are widely used in food processing, washdown operations, chemical transfer, industrial solvent handling, and general fluid delivery systems. Stainless steel construction provides excellent resistance to corrosion, moisture, and cleaning chemicals.

For applications requiring higher corrosion resistance, the Heavy Duty Stainless Steel Hose Reel series can be supplied in optional 316L stainless steel. This option is commonly selected for coastal facilities, offshore platforms, marine service operations, and other corrosive environments.

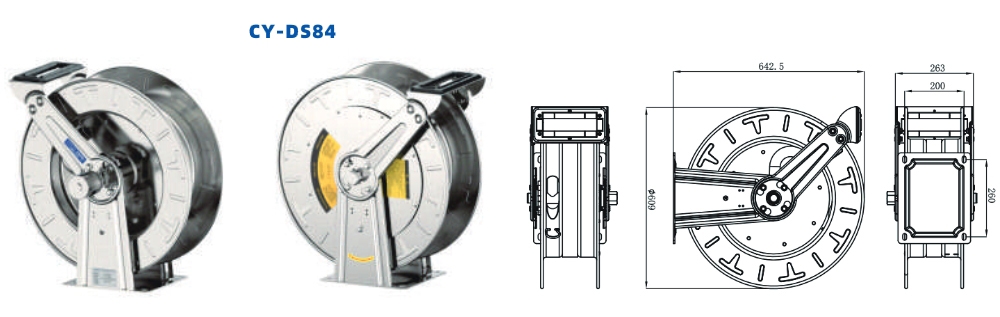

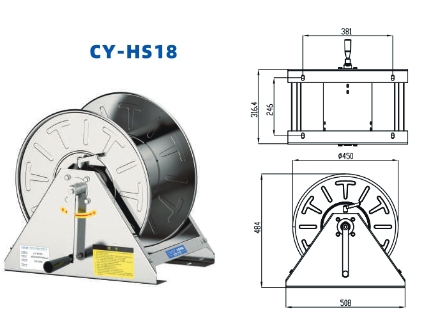

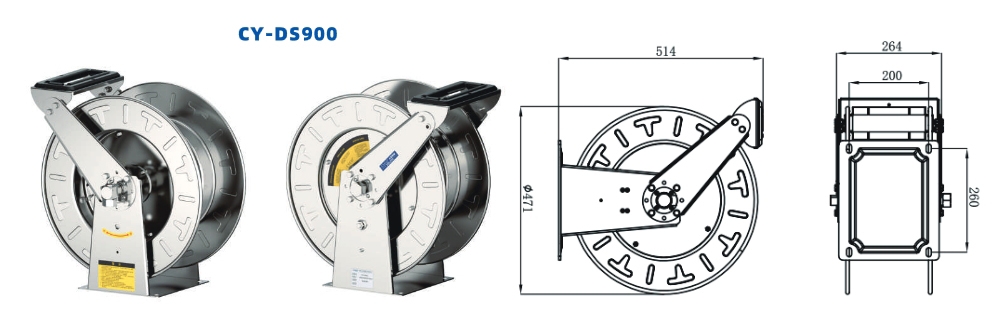

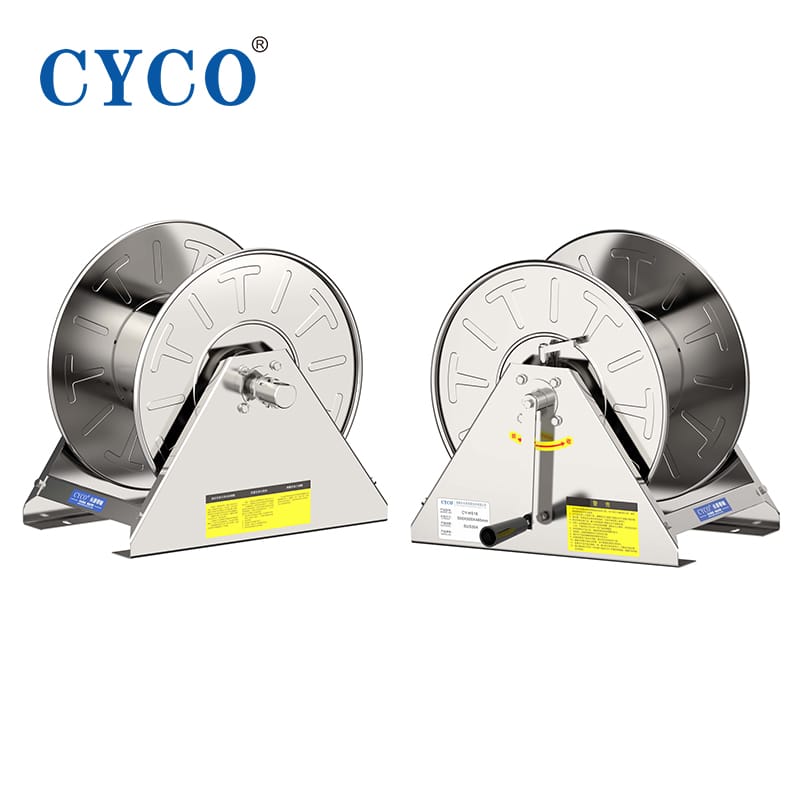

Hose Reel CY-DS84/CY-DS900/CY-HS18 Series Size

Model (without hose)	Weight (kg)	Maximum pressure (bar)	Hose inner diameter (mm)	Hose outer diameter (mm)	Hose outlet NPT internal thread	Reel Import NPT internal thread	Hose length (m)	Size(mm)
Model (without hose)	Weight (kg)	Maximum pressure (bar)	Hose inner diameter (mm)	Hose outer diameter (mm)	Hose outlet NPT internal thread	Reel Import NPT internal thread	Hose length (m)	Long	Width	High
Low and medium pressure reels max. 99°C (high pressure reels max. 65°C)
LC600 OLS-S	15	21	10	15	3/8	3/8	15	492	206	521
LC607 OLS-S	16	21	10	15	3/8	3/8	21	492	206	521
LC800 OLS-S	15	21	13	19	1/2	1/2	15	492	206	521
LC807 OLS-S	17	21	13	19	1/2	1/2	21	492	206	521
DS605 OLS	17	21	10	15	3/8	3/8	23	479	226	498
DS805 OLS	17	21	13	19	1/2	1/2	21	479	226	498
DS900 OLS	17	21	19	27	3/4	3/4	12	479	226	498
DS806 OLS	18	21	13	19	1/2	1/2	25	479	291	498
DS807 OLS	18	21	13	19	1/2	1/2	30	479	291	498
D906 OLS	18	21	19	27	3/4	3/4	20	479	291	498
56-00 OLS	10	35	10	15	3/8	3/8	11	356	156	365
78-00 OLS	19	35	13	19	1/2	1/2	15	502	178	514
D92-00 OLSBW	52	35	13	20	1/2	1/2	30	667	305	670
D93-00 OLSBW	53	35	19	30	3/4	3/4	23	667	305	670
D94-00 OLSBW	53	35	25	38	1	1	15	667	305	670
D92-00 OMSBW	54	207	13	21	1/2	1/2	23	667	305	670
D93-00 OMSBW	54	207	19	30	3/4	3/4	15	667	305	670

Model	Total Weight	Maximum pressure	Reel Exit	Reel Import	Inner Diameter	6	10	13	19	25	Size(mm)
(Without Hose)	kg	bar	NPT Internal Thread	NPT Internal Thread	Outer Diameter	14	18	22	30	38	Length	Width	Height
Manual medium pressure reel, the highest temperature is 99℃
HS18-000	16	35	1/2	1/2	Hose length	130	91	61	—	—	508	464	483
HS28-000	16	35	1/2	1/2		191	137	91	—	—	508	616	483
HS19-000	17	35	3/4	3/4		130	91	61	23	—	508	464	483
HS29-000	16	35	3/4	3/4		191	137	91	38	—	508	616	483
HS37-000 L	21	35	1(M)	1		—	—	—	—	30	604	584	626
This series of products does not include a hose. If a hose is required, please consult CYCO.
