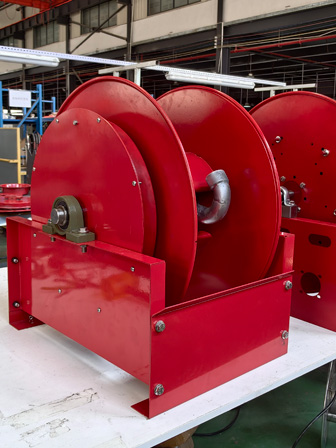

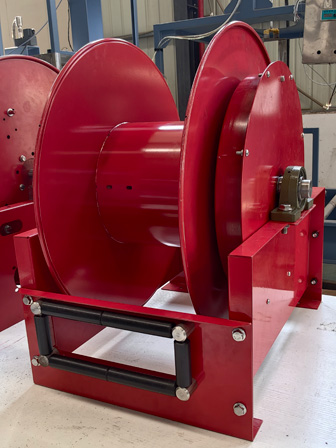

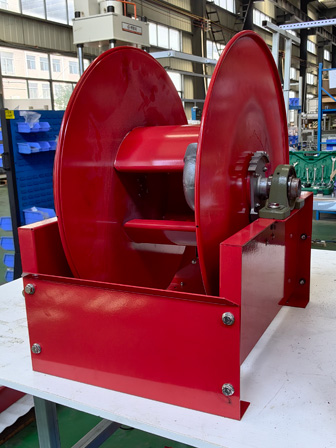

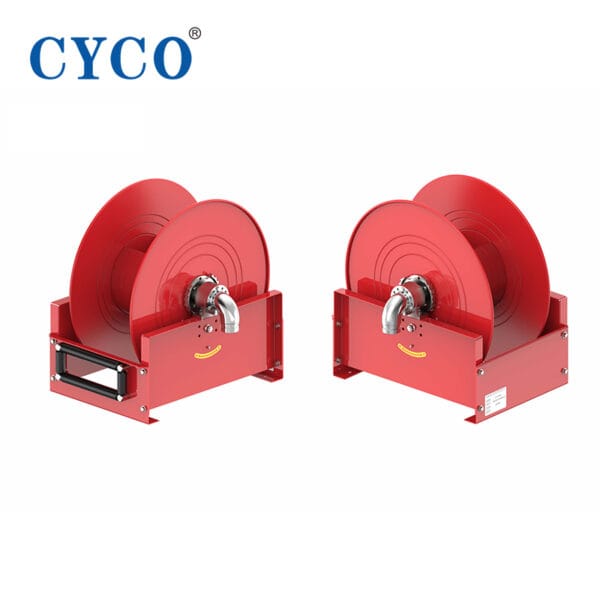

Heavy Duty Hose Reel CY-FF96 Series

Flexible Drive Options

The CY‑FF96 Series provides three drive methods for different operational needs:

• Manual – Simple and reliable, ideal for low-frequency or short hose applications
• Spring-driven – Automatic retraction without electricity, reducing manual effort and improving workflow efficiency
• Motor-driven / Electric – Fully automated extension and retraction for long hoses, heavy loads, or high-frequency industrial use, compatible with PLC systems, switches, or remote control panels

This flexibility ensures the reel adapts to any industrial environment, from light maintenance workshops to fully automated production lines.

Working Principle

• Motor-driven / Electric Operation: The electric motor provides smooth and precise hose extension and retraction. Operators can control the hose via switches, remote panels, or PLC signals, with built-in overload protection and limit switches ensuring safe and reliable operation.
• Spring-driven Operation: The internal spring stores energy during hose extension. A gentle pull releases the locking mechanism, allowing the spring to automatically retract the hose smoothly.
• Manual Operation: Completely operator-controlled, offering simplicity and reliability in situations without power or automation requirements.

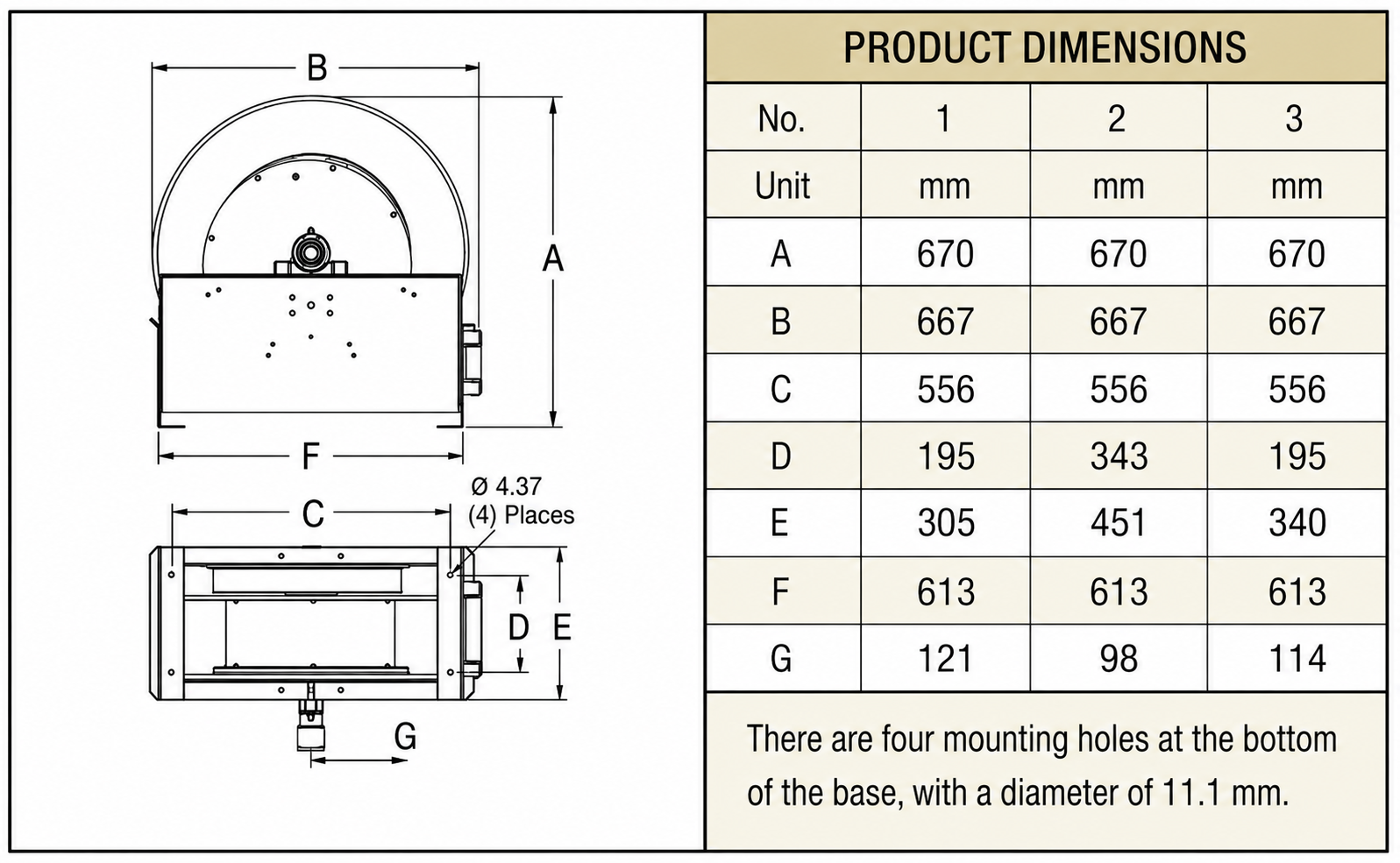

Dimensions & Technical Specifications

Key Advantages

1. Flexible Drive Options for Industrial Applications – Choose between manual, spring-driven, or motor-driven electric operation to match different workflow requirements. Ideal for Industrial Hose Reel and Heavy Duty Retractable Hose Reel systems requiring efficient hose management.
2. Strong Anti-Corrosion Performance – The powder-coated steel surface provides a durable and professional finish with excellent resistance to corrosion, moisture, and wear, making it a reliable Stainless Steel Hose Reel solution for industrial environments.
3. Welded One-Piece Reel Construction – The die-stamped reel is fully welded to ensure superior structural strength and long-term reliability, supporting heavy-duty industrial hose handling operations.
4. External Swivel Joint for Flexible Hose Handling – Integrated external swivel joint allows smooth hose rotation and deployment from both sides of the reel, improving operational flexibility in various Hose Reel for Industrial Applications.
5. Independent Sealed Spring Box – The spring mechanism is riveted and enclosed in a grease-filled sealed box, preventing dust, water, and debris from entering while ensuring smooth and stable operation.
6. Wide Hose Compatibility – Compatible with hoses ranging from 1/2″ to 1 1/2″, offering flexible support for multiple fluid transfer systems and High Pressure Hose Reel applications.
7. Handles Long Hoses and Heavy Loads Efficiently – Functions as a reliable Large Capacity Hose Reel for industrial cooling systems, automated production lines, and high-frequency operations. Motor-driven systems simplify handling of long or heavy hoses, improving productivity and reducing operator fatigue.

Applications

• • Industrial Manufacturing: Assembly lines, welding stations, pneumatic tools
  • Energy & Power Equipment: Cooling systems, hydraulic oil/water transfer
  • Automated Production Lines: PLC-coordinated hose management
  • Large-Scale Cleaning & Irrigation: Long-distance water or chemical transfer
  • Maintenance Workshops: Flexible drive options for air, water, or lubricant hoses
