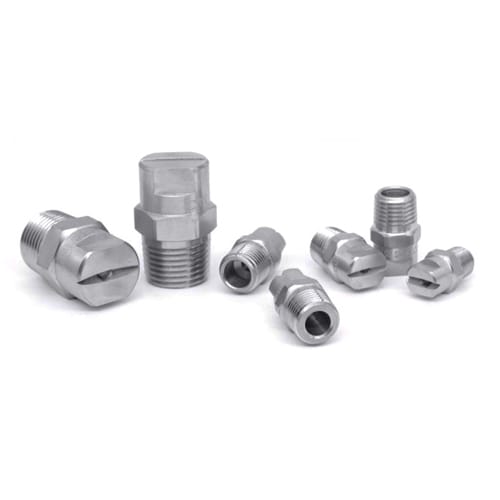

CC Fan Nozzle

Design features

1. CC Fan Nozzle produces a flat fan spray pattern with uniform distribution across the spray width. It delivers consistent coverage, making it suitable for applications requiring even liquid application.

2. The nozzle is capable of generating either a high-impact solid stream or a flat fan spray, providing flexibility for different processes such as cleaning, rinsing, and surface treatment. Strong impact force ensures effective removal of contaminants and improves overall cleaning efficiency.

3. Fan nozzle produces a tapered spray distribution, making it ideal for spray bar applications. Overlapping spray patterns from multiple nozzles ensure uniform coverage across the entire surface.

4. The internal structure is simple and robust, ensuring stable operation under various working conditions. This design reduces the risk of malfunction and supports long-term, reliable performance.

5. Maintenance is easy due to the straightforward construction. Components can be quickly inspected, cleaned, or replaced, minimizing downtime and reducing maintenance costs.

6. Available in a wide range of spray angles, the nozzle allows flexible adjustment of coverage area to meet different application requirements. It can be easily integrated into spray systems and installed in various orientations.

7. Durable materials such as stainless steel and engineering plastics provide resistance to corrosion and wear, ensuring long service life in demanding industrial environments.

8. Low-flow fan nozzles can be equipped with optional filters to further reduce clogging and improve operational stability.

Fan Nozzle Types and Configurations

Performance Data

Applications

1. Cleaning: chemical cleaning and high-pressure cleaning of semiconductor wafers, chips, circuit boards, cars, vehicles, containers, films, felts, filters, meshes, bottles, soil, gravel, metals, metal parts, machinery, steel plates, photovoltaic panels, etc.

2. Spreading: etching liquid, oil, lubricant, paste, acid, insect repellent, herbicide, aqueous solution, etc.

3. Cooling: gas, smoke, heat exchanger, barrel, steel plate, steel sheet, roof, etc.

4. Water curtain: fire prevention, fire extinguishing, heat protection, dust prevention, odor prevention, etc.
