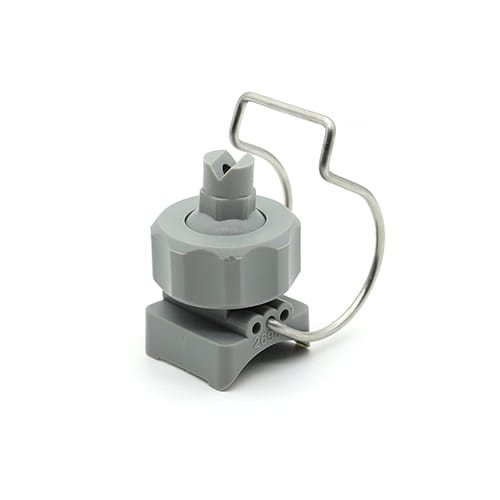

Clip-On Fan Nozzle
This clip-on fan nozzle features a quick-install clamp for fast, tool-free mounting and secure operation under high-pressure conditions. It produces a uniform, stable fan-shaped spray with strong impact force, delivering effective cleaning and surface treatment performance. The compact structure allows flexible installation in confined spaces, while adjustable positioning improves spray accuracy. Made from durable, corrosion-resistant materials, it ensures long service life and reliable operation. The modular structure supports multiple spray patterns and interchangeable nozzle types, providing flexibility to adapt to different industrial applications and process requirements.
Design features
1. There are two connection methods for the adjustable spherical nozzle: clip type (26988, 27988 series) and thread type (155 series)
2. The clip type nozzle is fixed to the manifold by a spring; the thread type nozzle adopts a threaded connection method
3. The adjustable spherical nozzle provides three spray modes: hollow cone, solid cone, and fan-shaped
4. It is formed by directly connecting the spherical nozzle or indirectly connecting the nozzle through a threaded ball or a quick-release ball to form multiple series. You can quickly and accurately adjust the spray direction of the nozzle to keep it in an excellent working condition
5. The nozzle of the adjustable spherical nozzle can be disassembled very quickly. It can be unscrewed directly by hand without any tools. Remove the spherical nozzle, threaded ball or quick-release ball from the nozzle body and insert the new nozzle
6. The fan-shaped nozzle is a high-impact spray type, offering stronger scouring power compared to other spray methods. It is particularly suitable for surface cleaning and degreasing, effectively improving cleaning efficiency.
7. This snap-fit structure can be used not only with fan-shaped nozzles but also with solid cone, hollow cone, and other nozzle types to meet different spraying needs and adapt to diverse process applications.
Applications
Metal cleaning, degreasing in surface treatment, phosphating, and other low-pressure applications
| Material | PP |
|---|---|
| Max Pressure(bar) | 4 |
| Min Pressure(bar) | 0.3 |
| Max Flow(L/min) | 46 |
| Spray Angle | 15° ~ 110° |
