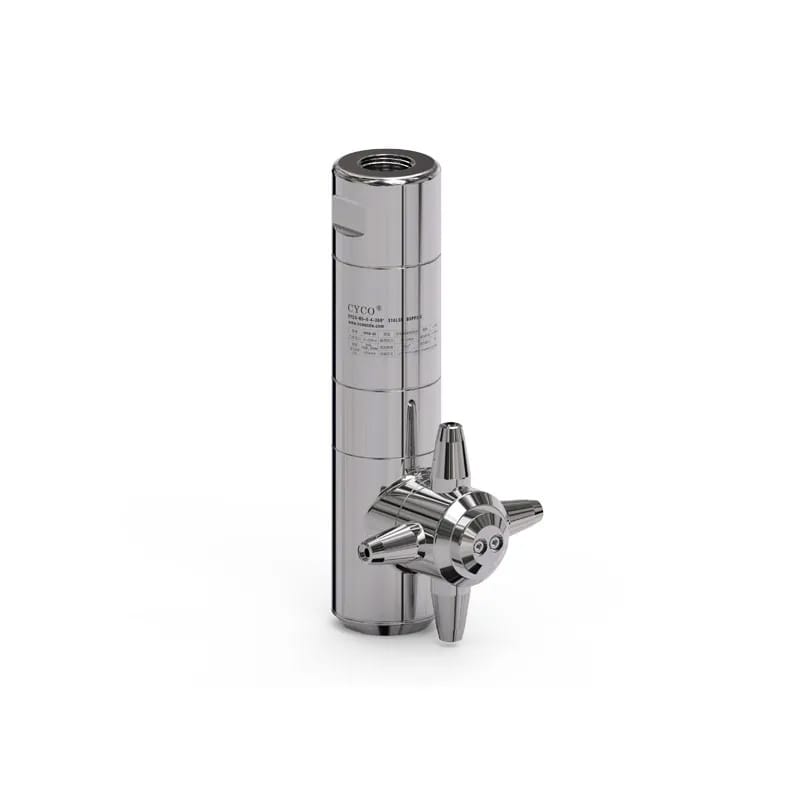

CY05 3D Rotary Cleaning Ball

SKU: CY05

The CY05 3D Rotary Cleaning Ball delivers true 360° three-dimensional tank cleaning through a fluid-driven turbine and precision gear system. Constructed from durable 316L stainless steel and PTFE, it generates high-impact water jets for efficient residue removal while maintaining low leakage for economical operation. An independent gearbox protects internal components, ensuring reliable performance even under poor water quality conditions. Ideal for industrial tank and vessel cleaning applications.

Categories: Spray Nozzles, Tank Cleaning Nozzles

Cleaning Mode: 3D Rotation

Connection: 3/4", BSPT

Material: 316L, PTFE

Max Cleaning Diameter: 29.86'

Max Flow(L/min): 135

Max Pressure(bar): 15

Max Temperature: 200°F

Min Entry Diameter: 4.13"

Min Pressure(bar): 3.4

The spray ball is driven by the cleaning fluid, which powers a turbine that drives the internal reduction mechanism. The gear mechanism operates along a set trajectory, achieving both rotation and revolution for 360-degree comprehensive cleaning without dead angles.

Optimized structural design that generates a greater impact water flow.
Excellent sealing design with a leakage rate of only 3%, providing a more economical cleaning solution.
Independent gearbox design prevents internal gear damage, allowing it to operate in poor water quality conditions.
The water jet forms a column shape, generating high impact force.
Precision gear alignment enables the nozzle to operate along the set trajectory, ensuring thorough cleaning.
Special flow-stabilizing design concentrates the water jet, enhancing impact force and ensuring cleaner results.

Cleaning track simulation:

Cleaning scene:

Cleaning Mode	3D Rotation
Connection	3/4", BSPT
Material	316L, PTFE
Max Cleaning Diameter	29.86'
Max Flow(L/min)	135
Max Pressure(bar)	15
Max Temperature	200°F
Min Entry Diameter	4.13"
Min Pressure(bar)	3.4
