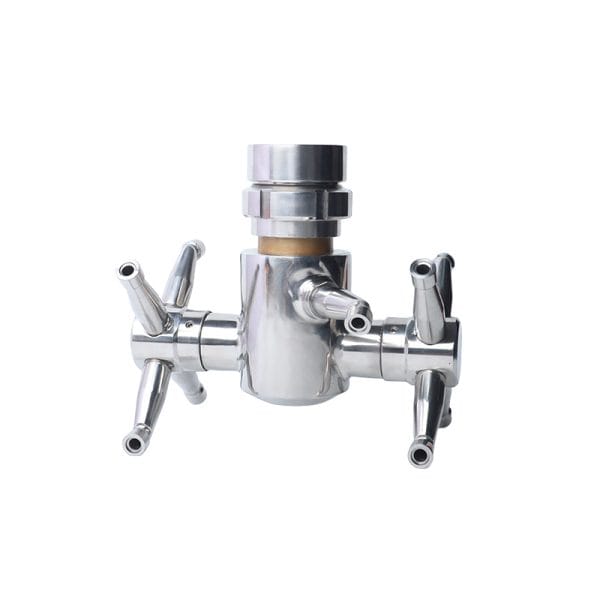

CY10 Rotating Cleaning Nozzle

SKU: CY10

CY10 Rotating Cleaning Nozzle delivers 360° dead-zone-free internal cleaning with a 3D rotation design, ensuring comprehensive coverage inside tanks and vessels. Constructed from durable 316L stainless steel and PTFE, it features dynamic sealing to reduce leakage and a steady flow design for greater impact force and more thorough cleaning. With a 2″ BSPT connection and high flow capacity, it’s ideal for industrial cleaning applications in chemical, food, beverage, and pharmaceutical environments.

Categories: Spray Nozzles, Tank Cleaning Nozzles

Cleaning Mode: 3D Rotation

Connection: 2", BSPT

Material: 316L, PTFE

Max Cleaning Diameter: 26.25'

Max Flow(L/min): 750

Max Pressure(bar): 10

Max Temperature: 200°F

Min Entry Diameter: 11.02"

Min Pressure(bar): 3

Features:

360° cleaning without dead angles: When the cleaner is working, first confirm that the four nozzle slots are in the vertical direction as shown in the figure, and select the appropriate nozzle angle according to the size of the cleaning tank to ensure the cleaning impact strength (the larger the cleaning bottle, the smaller the fan-shaped angle of the nozzle should be, until it just covers the bottle), to achieve all-round 360-degree cleaning.

Sealing: The leakage point adopts dynamic sealing to reduce leakage and save cleaning fluid. At the same time, it generates greater water flow impact.

Higher impact force: The nozzle adopts a unique steady flow design, which can make the spray water flow more concentrated, with greater impact force and more thorough cleaning.

Cleaning Mode	3D Rotation
Connection	2", BSPT
Material	316L, PTFE
Max Cleaning Diameter	26.25'
Max Flow(L/min)	750
Max Pressure(bar)	10
Max Temperature	200°F
Min Entry Diameter	11.02"
Min Pressure(bar)	3
