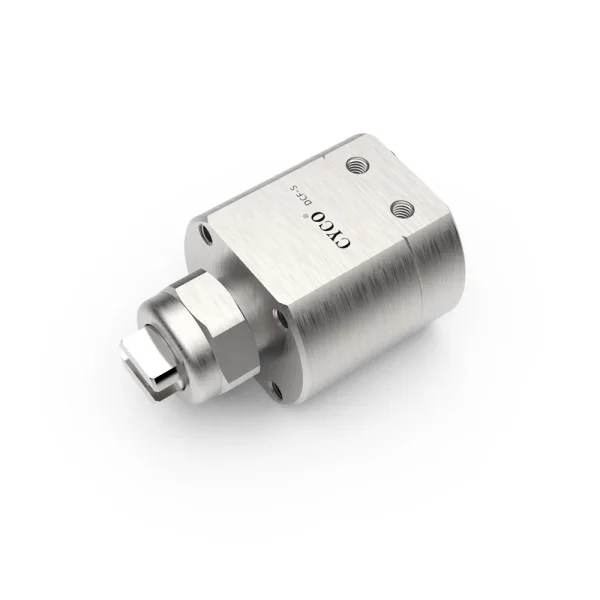

DCF-S Single-Fluid Solenoid Valve Nozzle

DCF-S Single-Fluid Solenoid Valve Nozzle

SKU: DCF-S

DCF-S Single-Fluid Solenoid Valve Nozzle is a high-speed, electromagnetic atomizing spray nozzle with a built-in 24 V DC solenoid coil that enables precise automatic on/off fluid control without the need for compressed air. Constructed with corrosion-resistant materials including stainless steel, PPS, PEEK, and fluorine rubber, it reliably delivers repeatable fluid dispersion and dosing for industrial spraying, moisturizing, and coating processes. Compact 1/8″ fluid connection and robust design make it suitable for automated production lines and hazardous area applications when installed per specifications.

Categories: Automatic Spray Nozzles, Spray Nozzles

Fluid: Single Fluid

Material: 430F

Connection: 1/8"

Max Temperature: 140°F

Voltage: DC24V

Current: 0.3A

DCF-S single-fluid electric air atomizing nozzles can quickly and automatically turn on/off. When you need 180 times/minute or 10,000 or more, you can find what you need in our large-scale spray nozzle production line. Options include adjustable or standard automatic spray nozzles, metering nozzles, compact precision nozzles, clear needles, mounting configurations and more. For more complex control of our automatic spray nozzles, add a spray control system to optimize performance and greatly increase cycle speed.

Advantages

1. The electric air atomizing nozzle has a built-in 24V DC solenoid coil and does not require compressed air;

2. The pneumatic hydraulic spray nozzle is specially designed for precise dispersion and metering of pressurized liquids;

3. The electric hydraulic spray nozzle uses a built-in 24V DC solenoid coil;

When you need precise spraying, moisturizing, and preservative operations, the 2205-A automatic spray control system is an ideal choice, with air atomization and electric/pneumatic hydraulic types. When using the Changyuan automatic spray control system, precise spray control can achieve automatic flow adjustment control according to changes in production line speed.

Fluid Connections

Fluid connections should be made using appropriate 1/8″ pipe connections. If metal fittings are used, an appropriate thread sealant should be applied to the threads prior to assembly. For those applications where recirculation is required, two 1/8″ pipe connection ports are provided. If recirculation is not required, one of the doors should be plugged using the 1/8″ pipe plug provided with each unit.

Electrical Connections

The electrical conduit connections for the conduit fittings accept 1/2″ NPT (M) for NPT versions. The conduit must protect the cable from mechanical damage and terminate in a sealed enclosure or junction box suitable for hazardous locations. For BSPT versions, the cable uses an Ex-D rated cable gland. The fuse holder and 3/10 amp fuse should be used as shown in Fiaure 1. The ground for the CY-DP-03-A must be connected to a true earth ground.
