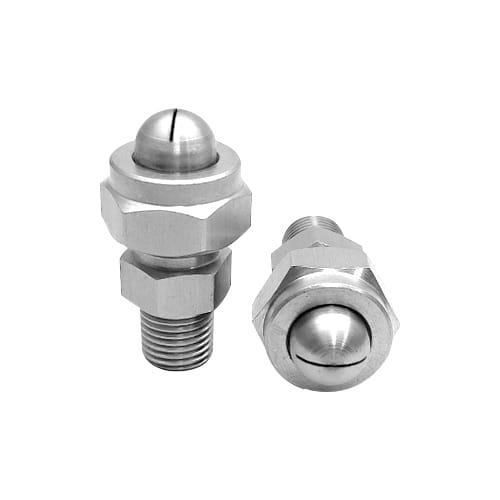

K1 Air Blowing Nozzle

Model: K1

K1 Air Blowing Nozzle produces a fan-shaped air or steam jet for effective compressed-air blowing and steam applications. With a simple 303 stainless steel or brass body and threaded connections (1/4″, 3/8″), it delivers a focused air blast ideal for cleaning, dust removal, drying, and air curtain use with compressed air, as well as humidification, temperature control, and humidity management when used with steam. Compact and reliable, it operates within a practical pressure range from 1 to 7 bar for industrial pneumatic systems, while maintaining stable airflow performance and consistent blowing results across various working conditions.

Categories: Air Blow Off Nozzles, Spray Nozzles

Material: 303, Brass

Connection: 1/4″, 3/8"

Max Pressure(bar): 7

Min Pressure(bar): 1

Design features

1. K1 Air Blowing Nozzle produces a wide-angle air curtain when spraying compressed air or steam, enabling effective sweeping and coverage over larger areas.

2. With support for both air and steam media, it offers flexibility for different blowing, cooling, and drying applications.

3. K1 Air Blowing Nozzle delivers precise and repeatable airflow performance, ensuring consistent results in blowing and drying operations.

4. By improving air utilization efficiency, it helps reduce operating costs when used with air nozzles, amplifiers, or air knife systems.

5. With optimized airflow design, it operates at lower noise levels, contributing to a safer and more comfortable working environment.

6. Compared with traditional round-hole nozzles, this fan‑shaped / wide‑angle air curtain achieves larger coverage at lower compressed air consumption, resulting in energy savings.

7. Through controlled and directed airflow, it enhances workplace safety by minimizing risks associated with uncontrolled air discharge.

8. Compact in size with standard interfaces, it can be flexibly installed in tight spaces or at multiple angles.

9. With flexible configuration options such as spray pattern, material, and flow rate, it allows easy optimization for drying, cooling, and cleaning processes.

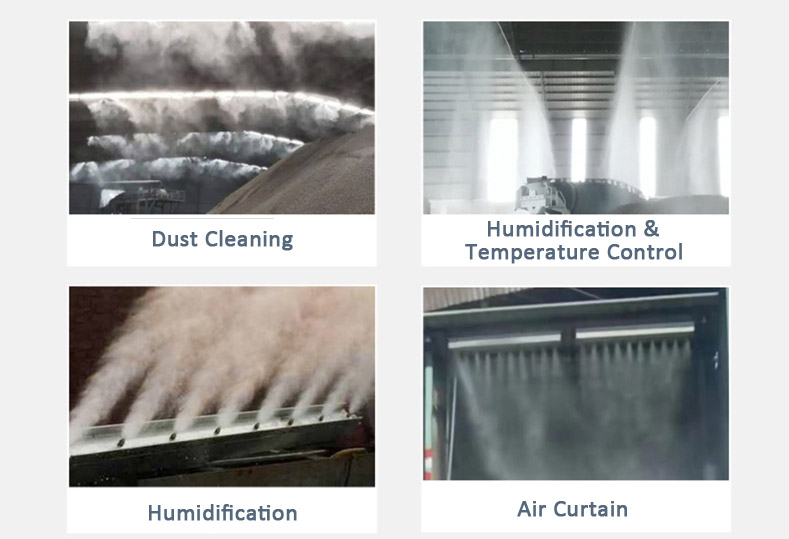

Applications:

Compressed air: cleaning, dust removal, drying, air curtain Steam: humidification, temperature control, humidity control, etc.
