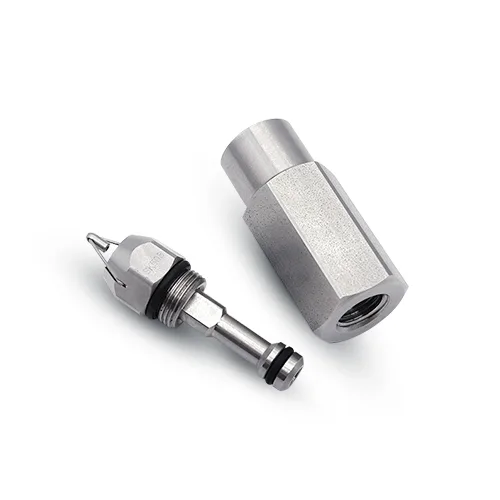

Ultrasonic Dry Mist Nozzle

Ultrasonic dry mist nozzle is a cutting-edge solution for precise, efficient misting in industrial applications. Using ultrasonic technology, this nozzle creates fine and dry mist particles that are perfect for cooling, humidification and dust control. Unlike traditional nozzles, the dry mist produced by this nozzle minimizes water consumption while delivering superior performance. It is particularly beneficial for industries such as manufacturing, food processing, and pharmaceuticals, where precise and controlled misting is essential. Ultrasonic dry mist nozzle operates efficiently even at low pressure, ensuring consistent output while maintaining a clean, dry environment. Its durable design guarantees reliability across a wide range of industrial applications.

Categories: Air Atomizing Nozzles, Spray Nozzles

Material: Brass, SS

Spray Shape: Full Cone

Spray Angle: 30°, 60°, 80°

Design features

1. Working principle: The fine water flow is sheared by the high-speed airflow to form a preliminary atomization. The preliminary atomized water droplets are mixed with the high-speed airflow and hit the vibration head, and further atomized into extremely fine particles of water mist.

2. Ultrasonic Dry Mist Nozzle creates uniform mist droplets, with the maximum size closely matching the minimum size for consistent mist distribution. This ensures efficient cooling and humidity control in sensitive environments like food processing and pharmaceuticals.

3. The vibration generated by the collision of the vibration head and the high-speed airflow can prevent dust or other foreign objects from adhering to the spray hole, ensuring the normal operation of the nozzle.

4. This nozzle requires minimal maintenance, offering reliable performance and durability due to its anti-clogging and corrosion-resistant materials, making it suitable for continuous, low-maintenance use.

Features

1. Circular Striking Area

The nozzle creates a circular misting area, ensuring uniform coverage for effective dust suppression, cooling, and humidification across large surfaces.

2. Small to Medium Droplet Size

The nozzle produces small to medium-sized droplets, offering flexibility for various applications, from humidification to dust control.

3. Adjustable Reflective Cap Angles

At 0.7 bar (10 psi), the reflective cap provides 150° and 180° spray angles, offering precise control over mist distribution.

4. Compact Design for T-Joint or Header Installation

Its linear design allows for a low-profile installation on T-joints or headers, making it perfect for space-constrained applications like coal ash suppression.

Installation Methods

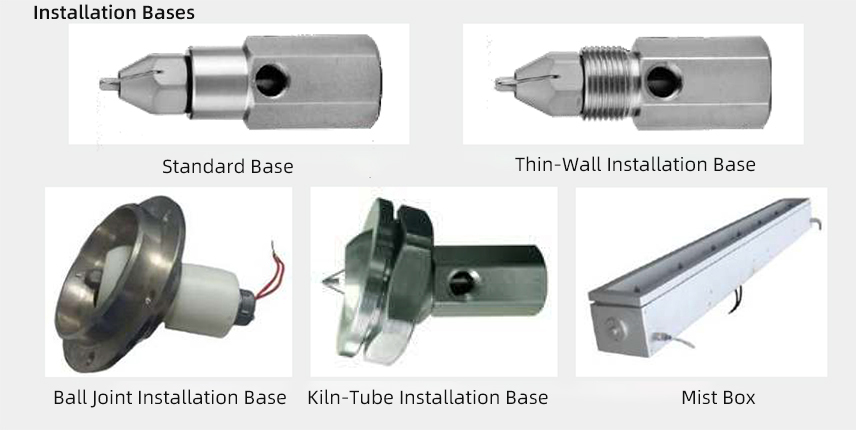

Our company provides several types of installation bases for ultrasonic mist nozzles, suitable for different environments and meeting the needs of various users. These include standard bases, thin-wall installation bases, ball joint installation bases, and mist boxes.

ultrasonic-dry-mist-nozzle

Project Cases

Ultrasonic dry mist nozzle provides a variety of mounting bases to suit different applications and meet the needs of various users. These include standard bases, thin-walled mounting bases, universal ball joint mounting bases, and spray boxes, offering flexible installation options for optimal performance in diverse environments.

Applications

Dust Control: Effectively reduces dust pollution in industrial environments, ensuring clean air.
Humidification: Provides consistent humidity in production environments to prevent dryness that could affect processes or product quality.
Spray Cooling: Quickly lowers temperatures by atomizing water droplets, ideal for high-heat work environments.
Dust Suppression: Efficiently suppresses dust during transportation and production, keeping the workspace clean.
Lubrication: Delivers precise lubrication mist to ensure smooth operation of machinery and equipment.
