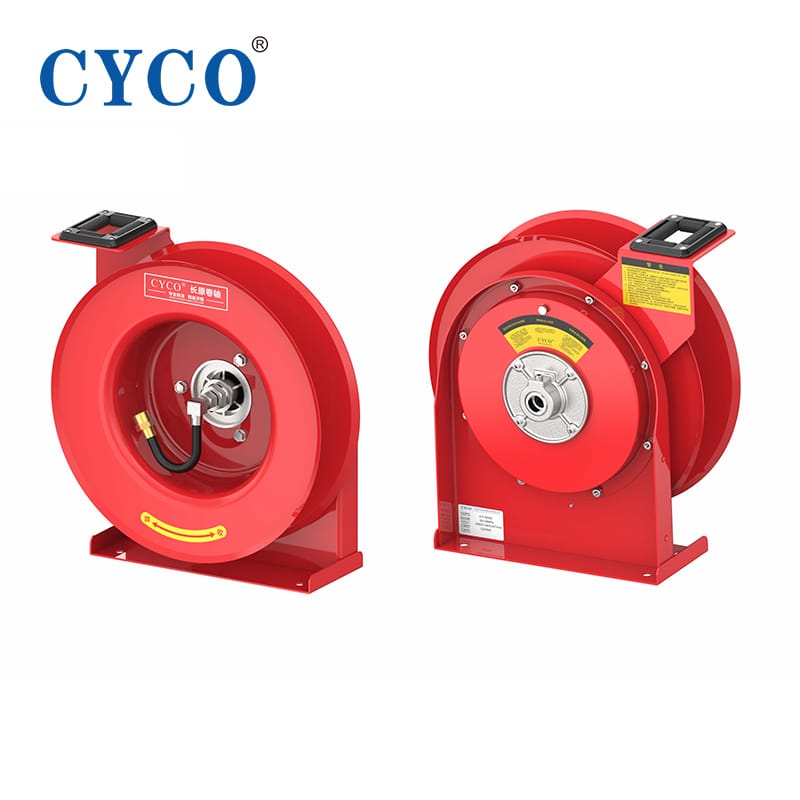

Hose Reel CY-30/40/50 Series
Hose Reel CY-30/40/50 Series is a robust and versatile solution for organizing hoses in demanding industrial and workshop settings. Engineered with professional-grade heavy-duty steel construction and corrosion-resistant powder coating, it ensures long-lasting durability. Key features include an adjustable buffer stop to lock hose length, a versatile guide arm, and an enclosed clutch-type drive spring that prevents damage from reverse winding. Designed for smooth, tangle-free retraction, it can be easily mounted on walls, ceilings, or floors. The series offers multiple models across low-pressure (gas/water), medium-pressure, and high-pressure (oil) applications, with various hose lengths and NPT connections to meet specific operational needs.
Adjustable buffer stop: allows any desired length of rope to be maintained outside the reel.
Adjustable guide arm: multiple guide arm positions for versatile use and field adjustments.
Enclosed drive spring: drive mechanism is enclosed to protect against environmental factors.
Long-life drive spring: clutch-type reel shaft core virtually eliminates the possibility of spring damage due to reel reverse winding.
Professional-grade heavy-duty steel construction: single base rope design, saving space
Corrosion-resistant treatment: steel parts are individually powder-coated for corrosion resistance.
Designed for industry, construction, workshops, public service centers, etc.
Easy to install on walls, ceilings, floors, etc.
| No. | 1 mm |
2 mm |
3 mm |
4 mm |
5 mm |
|---|---|---|---|---|---|

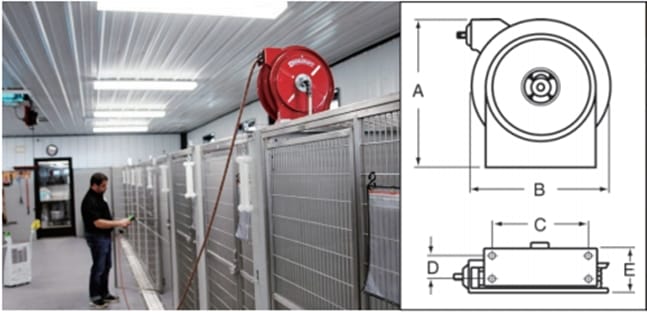

| A | 284 | 327 | 365 | 448 | 448 |
| B | 282 | 314 | 356 | 419 | 419 |
| C | 220 | 203 | 248 | 248 | 248 |
| D | 105 | 64 | 64 | 64 | 64 |
| E | 153 | 143 | 156 | 149 | 184 |

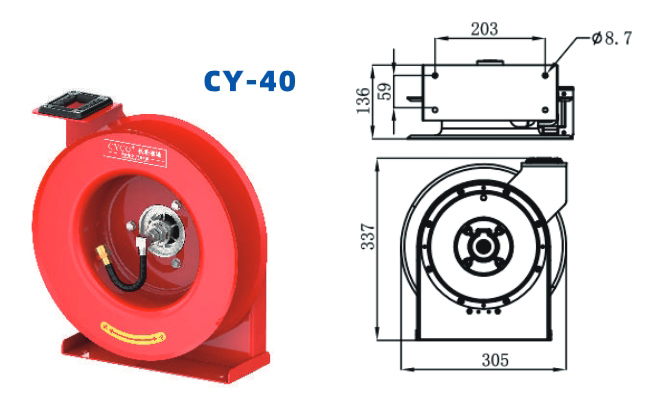

| The diameter of the four mounting holes at the bottom of the base is 8.7mm | |||||
| Model (With Hose) |
Total Weight kg |
Maximum Pressure Bar |
Hose Inner Diameter mm |
Hose Outer Diameter mm |
Hose Outlet NPT External Thread |
Reel Inlet NPT Internal Thread |
Hose Length m(ft) |
Model (Without Hose) |
Total Weight kg |
Maximum Pressure Bar |
Corresponding Size NO. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Low pressure gas/water reel, maximum temperature is 65℃ | |||||||||||
| 34-7.5 OLP | 8 | 21 | 6 | 12 | 1/4 | 3/8 | 7.5（25） | 34-00 0LP | 7 | 35 | 1 |
| 36-6 OLP | 8 | 21 | 10 | 15 | 1/4 | 3/8 | 6（20） | 36-00 OLP | 7 | 35 | 1 |
| 44-10.5 OLP | 9 | 21 | 6 | 12 | 1/4 | 3/8 | 10.5（35） | 44-00 0LP | 8 | 35 | 2 |
| 46-7.5 OLP | 9 | 21 | 10 | 15 | 1/4 | 3/8 | 7.5（25） | 46-00 OLP | 8 | 35 | 2 |
| 54-15 OLP | 12 | 21 | 6 | 12 | 1/4 | 3/8 | 15（50） | 54-00 OLP | 9 | 35 | 3 |
| 56-10.5 OLP | 11 | 21 | 10 | 15 | 1/4 | 3/8 | 10.5（35） | 56-00 OLP | 10 | 35 | 3 |
| 56-15 OLP | 16 | 21 | 10 | 15 | 1/4 | 3/8 | 15（50） | 56-05 OLP | 14 | 35 | 4 |
| 58-7.5 OLP | 12 | 21 | 13 | 19 | 1/2 | 3/8 | 7.5（25） | 58-00 OLP | 10 | 35 | 3 |
| 58-10.5 OLP | 18 | 21 | 13 | 19 | 1/2 | 3/8 | 10.5（35） | 58-05 OLP | 15 | 35 | 4 |
| 58-15 OLP | 19 | 21 | 13 | 19 | 1/2 | 3/8 | 15（50） | 58-06 OLP | 16 | 35 | 5 |
| Medium pressure oil reel, temperature up to 99°C | |||||||||||
| 54-10.5 OMP | 14 | 190 | 6 | 13 | 1/4 | 3/8 | 10.5（35） | 54-00 OMP | 10 | 207 | 3 |
| 56-9 OMP | 14 | 155 | 10 | 18 | 3/8 | 3/8 | 9（30） | 56-00 OMP | 11 | 207 | 3 |
| 58-7.5 OMP | 15 | 138 | 13 | 22 | 1/2 | 3/8 | 7.5（25） | A58-00 OMP | 11 | 207 | 3 |
| 58-10.5 OMP | 19 | 138 | 13 | 22 | 1/2 | 3/8 | 10.5（35） | A58-05 OMP | 15 | 207 | 4 |
| High pressure oil reel, maximum temperature is 99°C | |||||||||||
| 54-9 OHP | 14 | 345 | 6 | 15 | 1/4 | 1/4 | 9（30） | 54-00 OHP | 10 | 345 | 3 |
| 54-10.5 OHP | 18 | 345 | 6 | 15 | 1/4 | 1/4 | 10.5（35） | 54-05 OHP | 15 | 345 | 4 |
| 56-7.5 OHP | 15 | 276 | 10 | 19 | 1/4 | 1/4 | 7.5（25） | 56-00 OHP | 12 | 345 | 5 |
