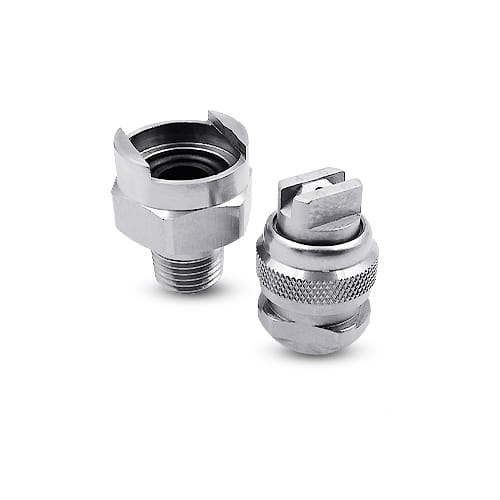

Stainless Steel Quick-Release Nozzle

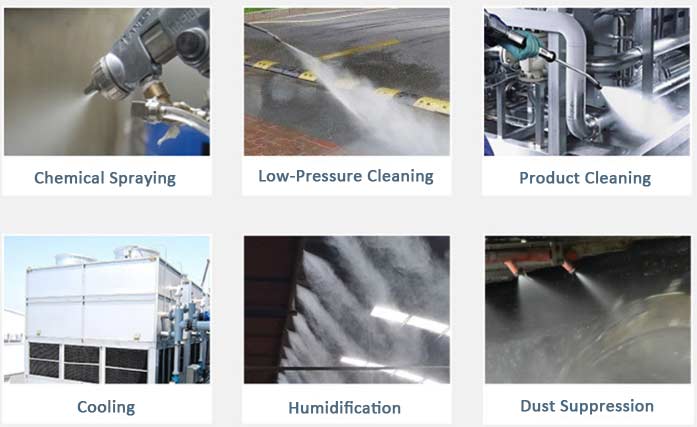

Stainless Steel Quick Release Nozzle is a time-saving flat fan spray nozzle engineered with a quick-release connection for ultra-fast installation and removal without tools. Made from corrosion-resistant stainless steel, it supports 1/4″ and 1/8″ inlet sizes and delivers adjustable spray patterns with angles ranging up to approximately 110° over a wide pressure range. Ideal for industrial liquid spraying, cleaning, rinsing, cooling, dust control, and general surface treatment applications where frequent nozzle changes or maintenance are required.
Design Features:
Fan spray nozzles save time with 1/4 and 1/8 quick installation and automatic spray pattern alignment. QCL nozzles provide flow rates less than 3.9 l/min at 3 bar. QC/QB nozzles provide flow rates of 3.9 l/min or more at 3 bar pressure.
| Material | SS |
|---|---|
| Connection | 1/4″, 1/8" |
| Min Pressure(bar) | 0.3 |
| Max Pressure(bar) | 35 |
| Spray Angle | 0° ~ 110° |
