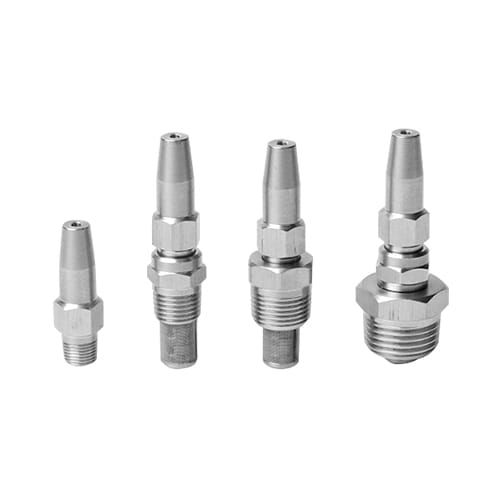

High Pressure Liquid Jet Nozzle

High Pressure Liquid Jet Nozzle is a precision-engineered nozzle suitable for high-pressure cutting and cleaning applications. It is equipped with a ruby or ceramic orifice and can withstand pressures up to 140 bar. As a key component in high-pressure water cutting systems, it is widely used for cutting various materials in industrial processes. The nozzle features a compact structure and is manufactured from durable materials such as 303, 304, and 316 stainless steel or brass, providing excellent corrosion resistance and long service life. With multiple connection sizes available, it offers flexible installation and reliable performance. It is commonly applied in paper cutting, surface cleaning, and industrial high-pressure processing systems.

Categories: Alloy/Gem Nozzles, Spray Nozzles

Material: 303, 304, 316SS, Brass, Ceramics, Ruby

Connection: 1/2", 1/4″, 1/8", 3/8"

Max Pressure(bar): 140

Spray Angle: 0°

Product Overview

Under computer control, the workpiece can be carved arbitrarily, and the material texture has little effect. Because of its low cost, easy operation, and high yield rate, water jet cutting is gradually becoming the mainstream cutting method in industrial cutting technology. The basic principle is both simple and complex. The water jet starts from the pressure pump, passes through the high-pressure pipe, and then shoots out from the cutting nozzle. A very simple explanation. However, it has undergone a very complex design to generate a pressure of 60,000PSI. During the design process, a small leak will cause long-term erosion and damage to the parts. Therefore, manufacturers and engineers will carefully handle the processing of high-pressure materials and use special technology to combine this machine. Users only need to know basic operating knowledge.

Product Features

It produces a 0° solid stream jet with highly concentrated flow and strong directionality, making it ideal for precision cutting and targeted cleaning applications.
It supports high-pressure operation up to 140 bar, maintaining stable jet performance and consistent output under demanding working conditions.
It delivers high cutting accuracy with a focused jet stream, enabling clean and precise cutting of materials such as paper, film, and other thin substrates.
It adopts a wear-resistant orifice made of ruby or ceramic, ensuring long service life and maintaining stable orifice size under continuous high-pressure impact.
It is available in multiple body materials, including 303, 304, and 316 stainless steel as well as brass, providing excellent corrosion resistance and mechanical strength.
It offers various connection sizes such as 1/8″, 1/4″, 3/8″, and 1/2″, allowing easy integration into different piping systems.
It ensures efficient use of fluid energy, delivering strong impact performance while reducing water consumption and improving operational efficiency.
It features a robust and reliable structure, suitable for continuous industrial operation with minimal maintenance requirements.

Applications

High-pressure cleaning, paper edge cutting, groove roller cleaning, blind hole roller cleaning, high-pressure swing cleaning of press section felt, high-pressure swing cleaning of long net
