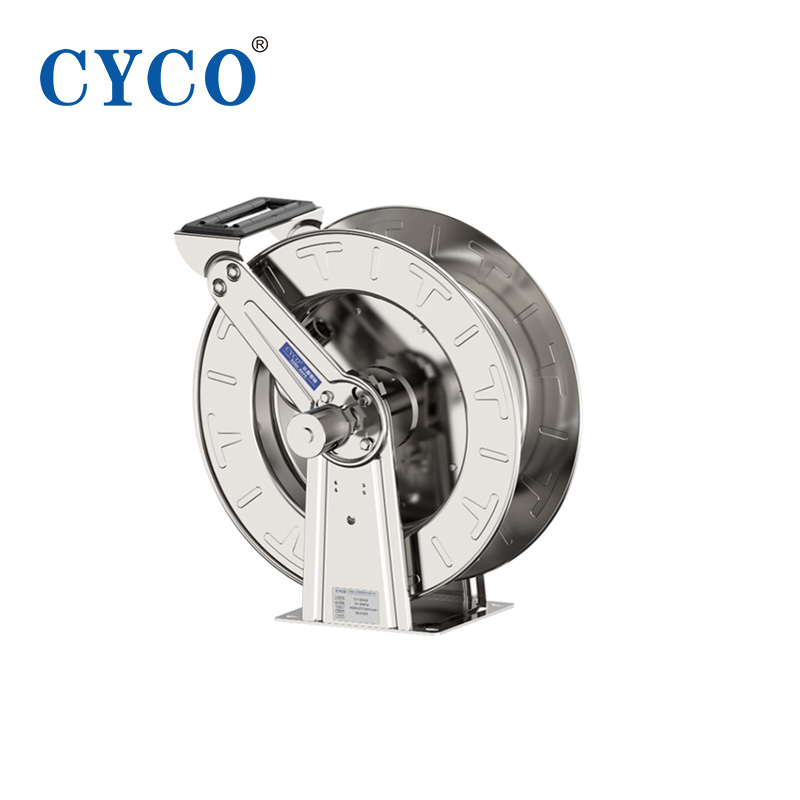

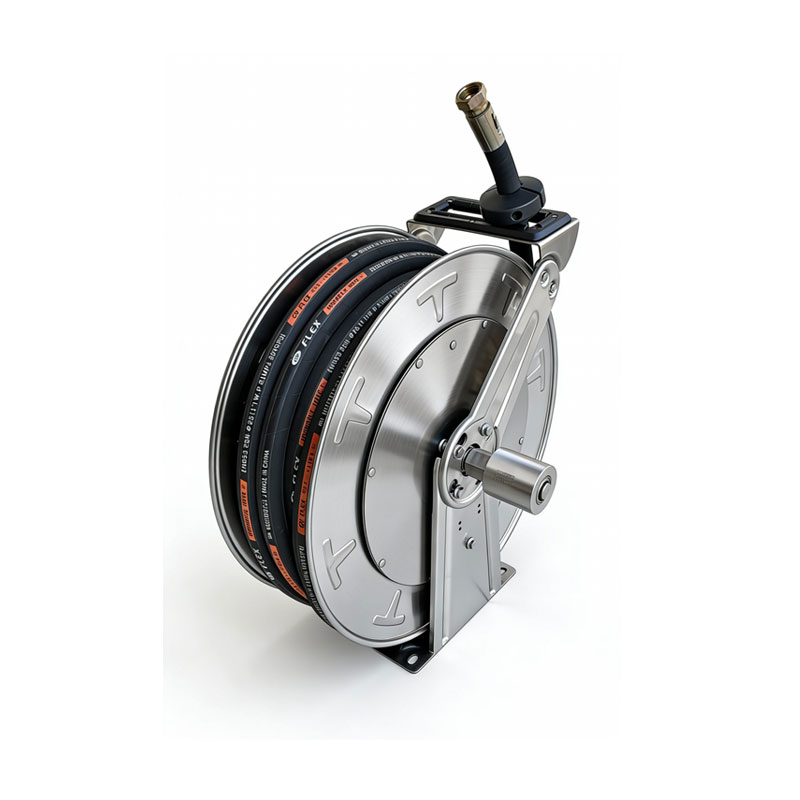

Stainless Steel Spring Driven Hose Reel CY-DS84

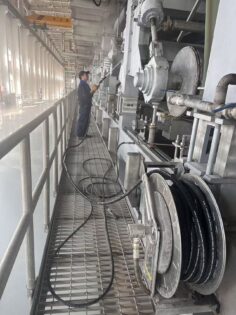

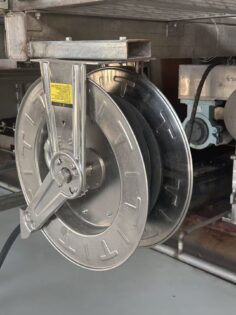

Stainless Steel Spring Driven Hose Reel CY-DS84 from CYCO is a durable industrial hose reel designed for easy hose storage and smooth automatic retraction in workshops, factories, service centers, and construction sites. Built with corrosion-resistant 304 stainless steel and electrochemical surface treatment, it withstands harsh environments while preventing dirt build-up. Features include an enclosed drive spring for protection, adjustable cushion stop to lock hose at any length, and adjustable guide arms for flexible installation on walls, ceilings, or floors. Ideal for air, water, oil, hydraulic, and grease hose applications, this spring-driven reel keeps workspaces organized, improves safety, and extends hose life. Hose not included.
Adjustable Cushion Stop: Allows any desired length of rope to be held on the outside of the reel.
Adjustable Guide Arms: Multiple guide arm positions for easy field adjustment.
Enclosed Drive Spring: Drive mechanism is enclosed to protect against environmental influences.
Long Life Drive Springs: Clutch type reel spool virtually eliminates the possibility of spring damage due to reverse spool winding.
Corrosion and dirt resistance: Manufactured from 304 stainless steel stampings with electrochemical surface treatment.
| Model (without hose) |
Weight (kg) |
Maximum pressure (bar) |
Hose inner diameter (mm) |
Hose outer diameter (mm) |
Hose outlet NPT internal thread |
Reel Import NPT internal thread |
Hose length (m) |
Size(mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Long | Width | High | ||||||||
| Low and medium pressure reels max. 99°C (high pressure reels max. 65°C) | ||||||||||
| LC600 OLS-S | 15 | 21 | 10 | 15 | 3/8 | 3/8 | 15 | 492 | 206 | 521 |
| LC607 OLS-S | 16 | 21 | 10 | 15 | 3/8 | 3/8 | 21 | 492 | 206 | 521 |
| LC800 OLS-S | 15 | 21 | 13 | 19 | 1/2 | 1/2 | 15 | 492 | 206 | 521 |
| LC807 OLS-S | 17 | 21 | 13 | 19 | 1/2 | 1/2 | 21 | 492 | 206 | 521 |
| DS605 OLS | 17 | 21 | 10 | 15 | 3/8 | 3/8 | 23 | 479 | 226 | 498 |
| DS805 OLS | 17 | 21 | 13 | 19 | 1/2 | 1/2 | 21 | 479 | 226 | 498 |
| DS900 OLS | 17 | 21 | 19 | 27 | 3/4 | 3/4 | 12 | 479 | 226 | 498 |
| DS806 OLS | 18 | 21 | 13 | 19 | 1/2 | 1/2 | 25 | 479 | 291 | 498 |
| DS807 OLS | 18 | 21 | 13 | 19 | 1/2 | 1/2 | 30 | 479 | 291 | 498 |
| D906 OLS | 18 | 21 | 19 | 27 | 3/4 | 3/4 | 20 | 479 | 291 | 498 |
| 56-00 OLS | 10 | 35 | 10 | 15 | 3/8 | 3/8 | 11 | 356 | 156 | 365 |
| 78-00 OLS | 19 | 35 | 13 | 19 | 1/2 | 1/2 | 15 | 502 | 178 | 514 |
| D92-00 OLSBW | 52 | 35 | 13 | 20 | 1/2 | 1/2 | 30 | 667 | 305 | 670 |
| D93-00 OLSBW | 53 | 35 | 19 | 30 | 3/4 | 3/4 | 23 | 667 | 305 | 670 |
| D94-00 OLSBW | 53 | 35 | 25 | 38 | 1 | 1 | 15 | 667 | 305 | 670 |
| D92-00 OMSBW | 54 | 207 | 13 | 21 | 1/2 | 1/2 | 23 | 667 | 305 | 670 |
| D93-00 OMSBW | 54 | 207 | 19 | 30 | 3/4 | 3/4 | 15 | 667 | 305 | 670 |
| Model | Total Weight | Maximum pressure | Reel Exit | Reel Import | Inner Diameter | 6 | 10 | 13 | 19 | 25 | Size(mm) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (Without Hose) | kg | bar | NPT Internal Thread | NPT Internal Thread | Outer Diameter | 14 | 18 | 22 | 30 | 38 | Length | Width | Height |
| Manual medium pressure reel, the highest temperature is 99℃ | |||||||||||||
| HS18-000 | 16 | 35 | 1/2 | 1/2 | Hose length | 130 | 91 | 61 | — | — | 508 | 464 | 483 |
| HS28-000 | 16 | 35 | 1/2 | 1/2 | 191 | 137 | 91 | — | — | 508 | 616 | 483 | |
| HS19-000 | 17 | 35 | 3/4 | 3/4 | 130 | 91 | 61 | 23 | — | 508 | 464 | 483 | |
| HS29-000 | 16 | 35 | 3/4 | 3/4 | 191 | 137 | 91 | 38 | — | 508 | 616 | 483 | |
| HS37-000 L | 21 | 35 | 1(M) | 1 | — | — | — | — | 30 | 604 | 584 | 626 | |
| This series of products does not include a hose. If a hose is required, please consult CYCO. | |||||||||||||
