Mini Plastic Air Retractable Hose Reel CY-1Q

Mini Plastic Air Retractable Hose Reel CY-1Q

Model: CY-1Q

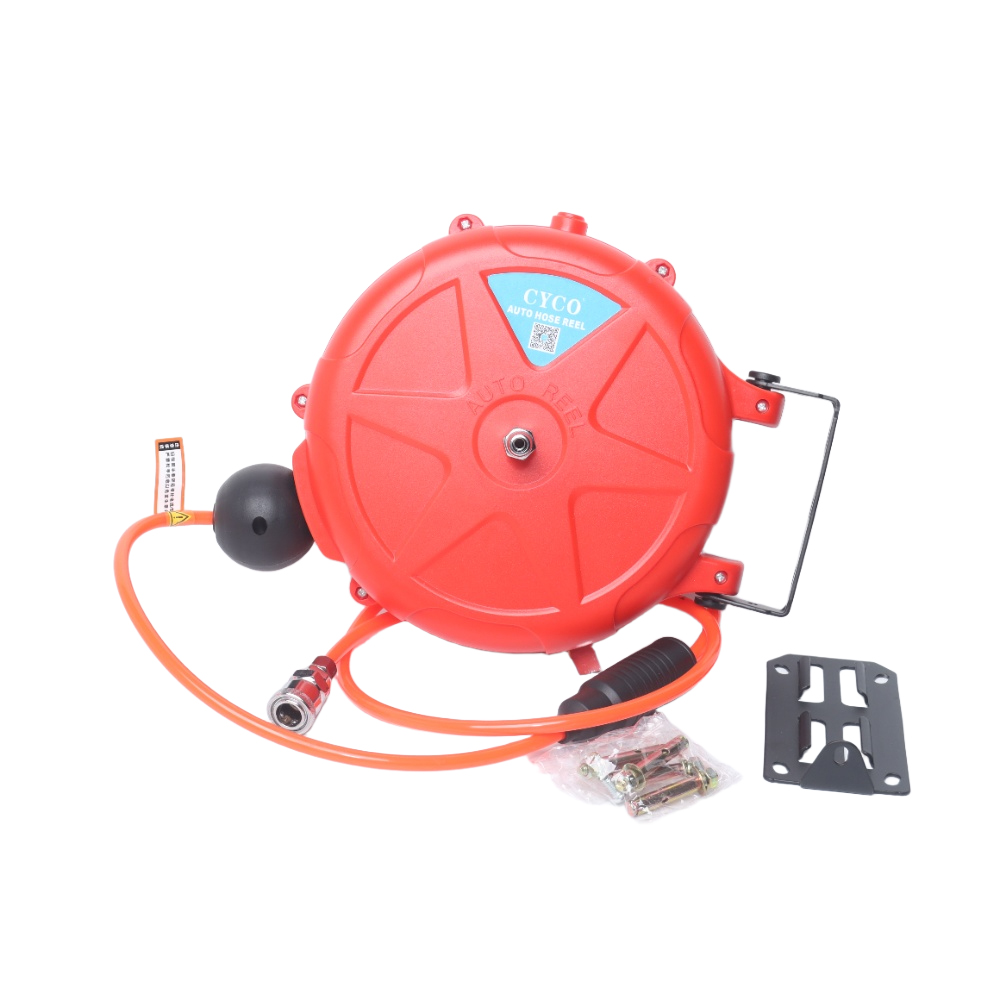

Mini Plastic Air Retractable Hose Reel(Model CY-1Q) is a compact and highly functional solution for organizing air and water lines. Designed as a versatile Mini Hose Reel, it features a built-in self-locking and self-winding mechanism that allows convenient one-handed operation with smooth automatic retraction. Constructed with a durable ABS polymer shell, double-layer PU yarn-reinforced hose, aviation-grade spring, and corrosion-resistant multi-alloy copper spindle, it ensures long-lasting performance. Features include an adjustable spring force, leak-proof seals, 180° swing bracket, and dust-proof enclosed design. Ideal for workshops and auto care centers, it reliably handles compressed air and water with pressures up to 1.5MPa across multiple hose length options.

Categories: Air Hose Reels, Hose Reels, Spring-Driven Hose Reels

Hose reel has built-in self-locking device with self-lining function, when pulling out a section to be retracted, pull it lightly like outside, and the hose line will be automatically recovered after crossing the self-locking device. (Be sure to use your hand to hold the line lightly when recovering).

Technical Parameters

shell: ABS polymer material, low density, high hardness and heat resistance, suitable for making corrosion-resistant parts and insulation parts.
positioning ball: plastic products, can adjust the output pipe line to stay outside the length.
Output tube interface: steel special fast self-locking connector.
Material: Polyether with yarn tube
Specification: Medium 6.5mm*10mm/Medium 8mm*12mm/Medium 10mm*14.5mm
Input pipe: 1m
Output pipe: 8m/10m/12m/15m/20m
Usual Pressure: 1.5MPa
Burst Pressure: 4.5MPa
Conveying Medium: Compressed Air, Normal Pressure Water
Packing Size: 350*170*400mm

Key Features

1、Breaking through the traditional combination design, this Mini Hose Reel can be used as a single unit and can also be extended in combination.
2、The air tube is made of double-layer pu yarn-clamped tube, which has the characteristics of anti-freezing, zigzag resistance and strong tensile strength.
3、 the use of aviation-grade material spring, stretching ten thousand times the contraction force remains unchanged.
4、Original coil spring contraction force adjustable structure to prevent coil spring fatigue and ensure reliable performance of the Automatic Retractable Air Hose Reel.
5、Original high wear-resistant multiple sealing structure to prevent air leakage.
6、Original locking mechanism, anti-locking design.
7、High-precision grade multi-alloy copper spindle and air guide mechanism, wear-resistant, corrosion-resistant, rust-resistant.
8、High polymer composite plastic shell, safe and durable.
9、 closed structure, to avoid entering dust and debris, to extend the service life of the hose.
10、Double steel bearing lubrication, friction is minimized, prolonging product life.
11、 With mobile mounting bracket, can swing 180 degrees, large working range, making this Mini Hose Reel suitable for various workshops and auto care centers.
12、Configuration of self-locking joints for automobile maintenance, high pressure resistance, no air leakage.
13、Copper spindle, not easy to break; wear-resistant pawl ratchet seat, not easy to deformation, not easy to misalignment.
14、The drum is installed with free recycling pipeline device to avoid mutual entanglement of pipelines.

Common Applications

This Air Retractable Hose Reel is widely used in auto repair shops, car washing studios, processing workshops, home garages, and garden irrigation. It also fits assembly lines, warehouses, and construction sites for pneumatic tools, daily cleaning, temporary air and water supply, and air compressor retractable hose reel applications.
