Auto Rewind Air Compressor Hose Reel

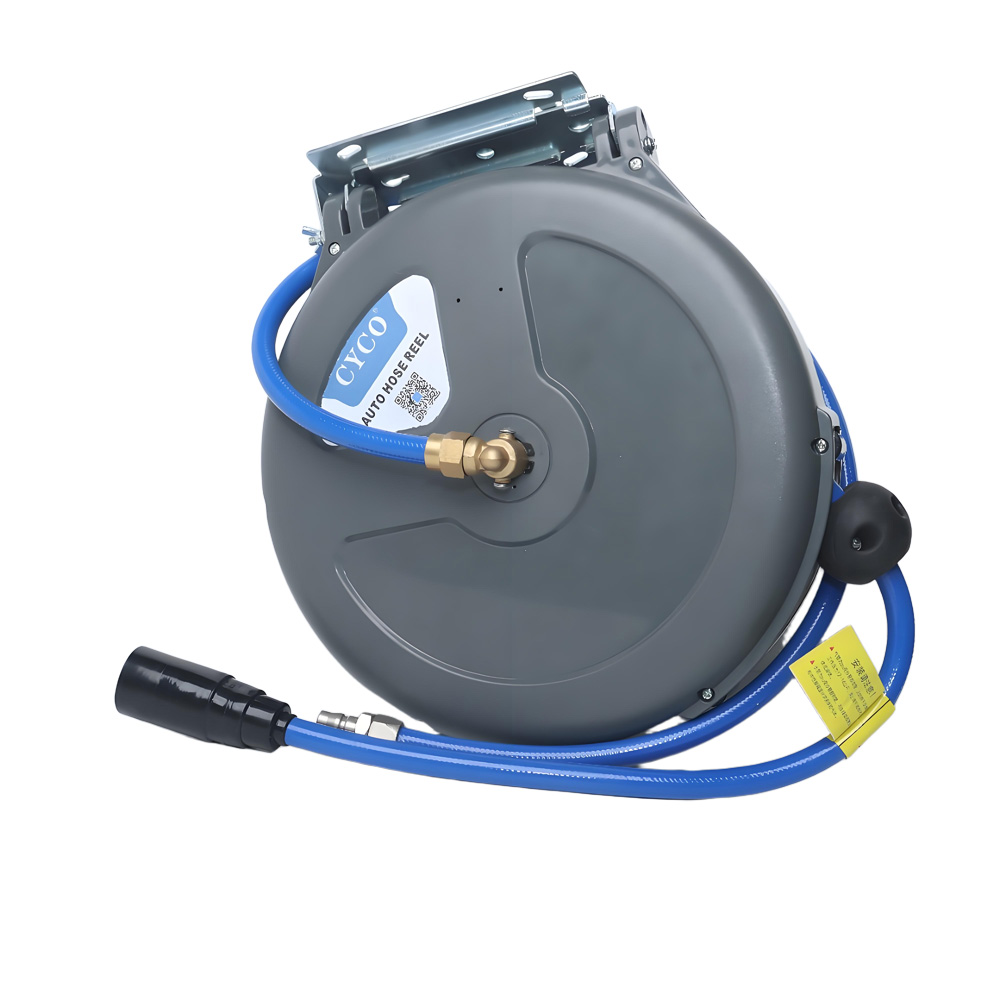

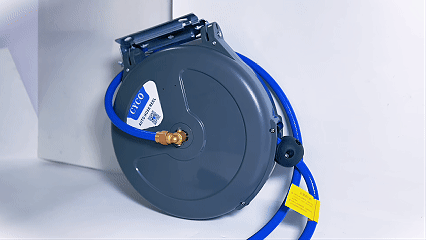

This Air Compressor Hose Reel (Model R1015Q-10) organizes pipeline layout and delivers stable compressed air supply, featuring an Auto Rewind Hose Reel design for easy daily operation. Equipped with an intelligent self-locking and auto-rewind structure, this supports easy one-handed operation. A gentle pull locks the hose at any desired length, and another slight pull triggers automatic rewinding. Adopting premium modular construction, this retractable Air Hose Reel features an adjustable-tension aviation-grade spring, patented leak-proof sealing rings and a fully enclosed dustproof housing. Dual steel bearings reduce operational friction and wear, ensuring long service life even under frequent daily use. Fitted with durable double-layer PU hose, corrosion-resistant brass spindle, 180° swivel mounting bracket and self-locking connector, this Air Compressor Hose Reel keeps hoses neatly arranged without tangling, ideal for workshops, garages, auto beauty centers and more workplaces.

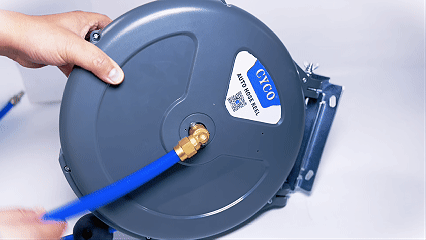

This Air Compressor Hose Reel features a pipe winder with a built-in self-locking device and self-lining function. When you need to retract a section, simply pull it lightly outward; the pipeline passes over the self-locking device and automatically recovers. (Be sure to use your hand to hold the line lightly when recovering).
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Pu Clamping Yarn Tube |
| Size | Medium 6.5mm*Medium 10mm / 8mm*12mm / 10mm*14.5mm |
| Input Pipe | 1m |
| Output Pipe | 8m / 10m / 12m / 15m / 20m |
| Usual Pressure | 1.5MPa |
| Burst Pressure | 4.5MPa |
| Conveying Medium | Compressed Air |
| Packing Size | 350*170*400mm |
Product Advantages
As an Auto Rewind Hose Reel, this product delivers several key advantages for daily workshop use.
Intelligent Auto Rewind & Smooth Operation
- Automatic self-retracting system allows fast and smooth hose rewind after use, improving workflow efficiency and reducing manual hose handling time.
- One-handed pull-and-release operation provides more convenient daily use for workshops, garages, and industrial maintenance environments.
- Anti-lock mechanism helps prevent hose jamming or uneven rewind during operation, ensuring smoother hose management.
- Adjustable spring tension design reduces recoil impact and improves overall user comfort during frequent operation.

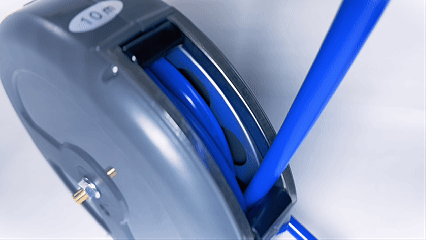

- Free-guiding drum structure keeps the hose aligned properly during rewind, helping reduce tangling, twisting, and hose wear.
Heavy-Duty Industrial Durability
- Aviation-grade spring system maintains stable retracting performance even after thousands of continuous operating cycles.
- Industrial-grade composite housing provides excellent impact resistance, wear resistance, and long-term durability in harsh industrial environments.
- Multi-alloy copper spindle improves corrosion resistance and helps maintain stable operation under demanding working conditions.
- Double steel bearing support reduces internal friction, improves rotation smoothness, and extends overall reel service life.
- Reinforced internal reel structure is designed for continuous industrial use and helps ensure long-term operational reliability.
Leak-Free & Stable Air Delivery
- Multiple sealing structures effectively minimize air leakage and help maintain stable compressed air transmission during operation.
- High-pressure self-locking connectors provide secure hose connections and improve overall operational safety.
- Smooth internal airflow channel design supports stable airflow performance and reduces pressure loss during long working periods.
- Suitable for continuous compressed air applications in automotive workshops, factories, equipment maintenance areas, and industrial production lines.
- Reliable sealing performance helps reduce compressed air waste and improves overall pneumatic system efficiency.
Durable Hose Protection System
- Dual-layer PU air hose offers excellent abrasion resistance, flexibility, and anti-freezing performance under different working temperatures.
- Closed protective housing helps shield the hose from dust, debris, moisture, and external contaminants in industrial environments.
- Reduced hose twisting, dragging, and bending helps minimize premature hose wear and extends overall hose service life.
- Smooth hose guiding system helps reduce friction during hose extension and retraction for more stable long-term performance.
- Proper hose storage management helps keep hoses protected and organized while reducing unnecessary maintenance costs.
Flexible Installation & Wide Working Coverage

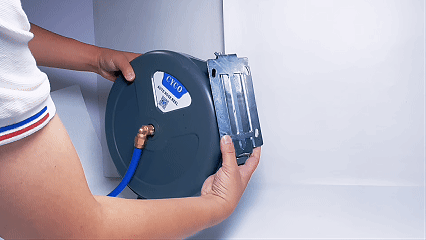

- 180° swivel mounting bracket provides wider operational coverage and allows more flexible hose movement during daily use.
- Supports wall-mounted, ceiling-mounted, and workshop installation options for different workspace layouts and operational requirements.
- Compact reel structure helps save valuable workspace while improving hose accessibility and storage organization.
- Ideal for automotive repair shops, manufacturing plants, garages, detailing centers, maintenance stations, and industrial workshops.
- Flexible installation design improves workspace efficiency and allows easier hose access across larger working areas.
Professional Industrial Safety Design
- Self-locking hose positioning mechanism improves operational control and helps enhance workplace safety during use.
- Enclosed reel structure helps reduce hose clutter and keeps work areas cleaner and more organized.
- Prevents hoses from dragging across the floor, helping reduce hose abrasion, workplace obstruction, and trip hazards.
- Proper hose management contributes to safer daily operation and improves overall workshop organization efficiency.
- Designed to support safer and more professional hose management solutions for industrial and commercial working environments.
Product performance
The Auto Rewind Air Compressor Hose Reel is built with the following performance materials and components:
- Shell ABS polymer material: small density, high hardness and heat resistance, suitable for making corrosion-resistant parts and insulation parts.

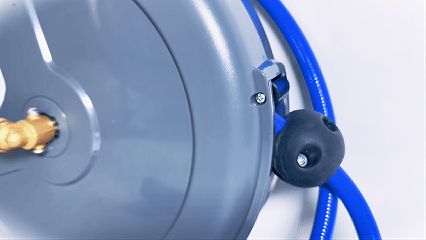

- Positioning ball: plastic products, can adjust the length of the output pipe line left outside.
- Output pipe interface: steel special fast self-locking joints.
Common Applications
This Air Compressor Hose Reel is widely used in auto repair shops, car beauty and detailing centers, mechanical processing workshops, maintenance factories, automobile maintenance stations, and industrial production lines. It also fits home garages, tire repair shops, construction sites, and assembly workshops to provide stable compressed air supply for pneumatic tools, cleaning equipment and daily maintenance work.
| Material | Pu Clamping Yarn Tube |
|---|---|
| Working Pressure | 1.5 MPa |
