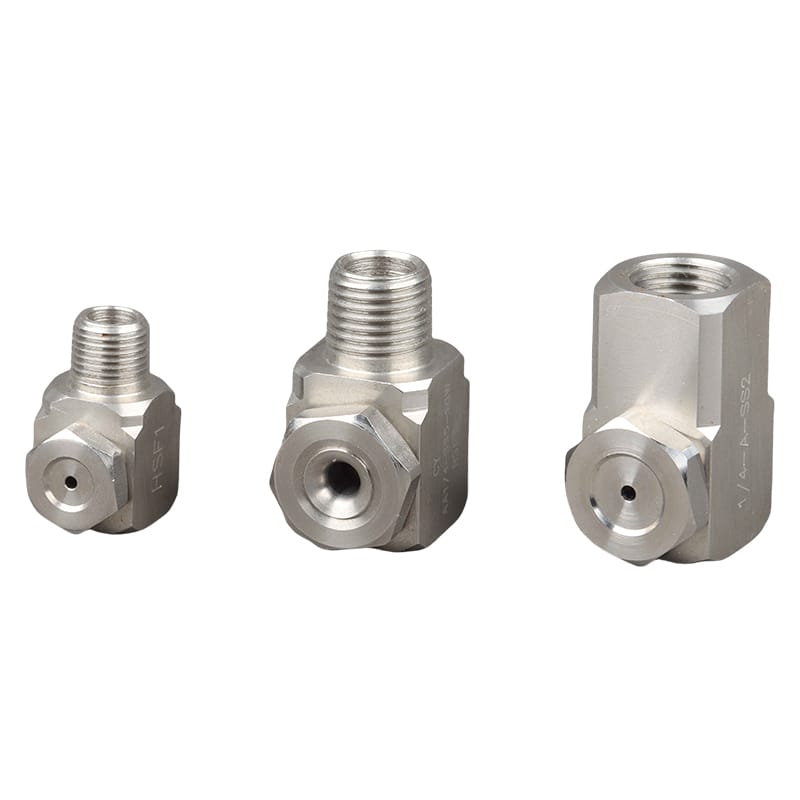

Tangential Hollow Cone Nozzle

Tangential Hollow Cone Nozzle produces a uniform hollow cone spray pattern with a ring-shaped spray area and small to medium droplet sizes, engineered to deliver broad coverage across a wide range of flow rates and pressures. Its unique swirl cavity design creates rotational liquid motion for effective atomization while minimizing clogging. Available in durable 316 SS or brass with multiple threaded connection options, it’s suitable for industrial applications such as gas scrubbing and cooling, water cooling, dust suppression and control, metal processing, and heat-exchange spraying tasks.

Categories: Hollow Cone Nozzles, Spray Nozzles

Material: 316SS, Brass

Connection: 1/2", 1/4″, 1/8", 3/8"

Max Pressure(bar): 7

Min Pressure(bar): 0.2

Design features

1. The series of metal nozzles are characterized by the ability to produce a hollow cone spray shape, a ring-shaped spray area, and a spray angle of 51°-114°

2. This type of nozzle can produce a uniformly distributed spray with small to medium droplet size under a wide range of flow rates and pressures

3. Under low pressure conditions, the AA/A series metal nozzles can also produce excellent results for good atomization of liquids

4. It has a unique swirl cavity structure, and its large and unobstructed flow channel can reduce or eliminate blockage. The AA/A series metal nozzles are external threaded joints, and the A series metal nozzles are internal threaded joints

Common applications

Gas scrubbing and cooling, water cooling, dust control, metal processing, chemical reaction processing, other heat exchange applications
