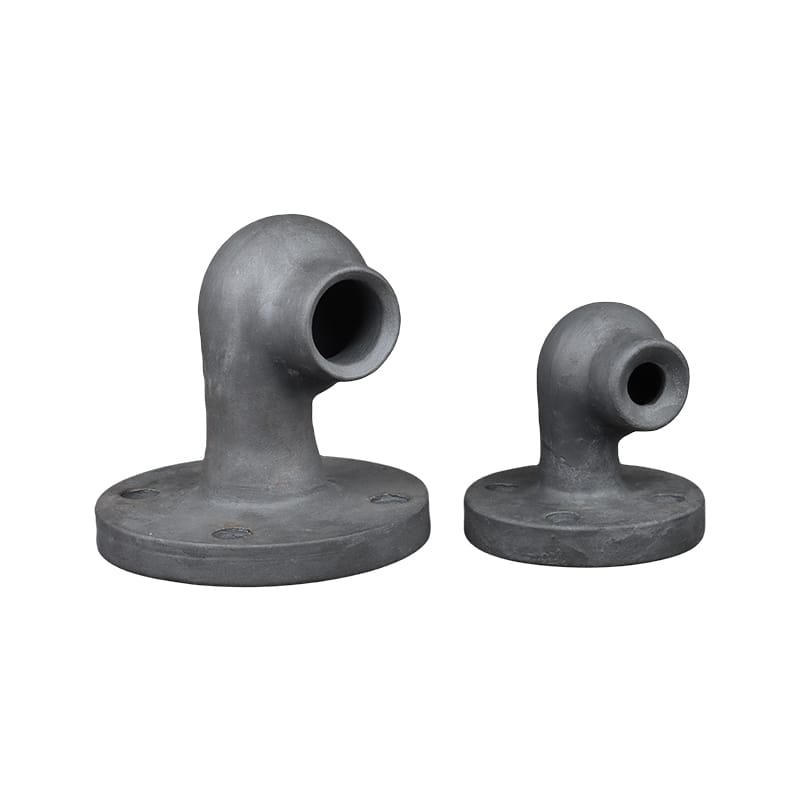

Tangential Swirl Nozzle

Tangential Swirl Nozzle is a high-performance industrial spray nozzle designed with a tangential inlet swirl chamber that produces a uniform hollow-cone spray with excellent coverage and clog-resistance. Built from durable silicon carbide or ceramic materials, it offers high strength, oxidation and wear resistance, and long service life with large free passage for particles. Suitable for demanding applications like flue gas washing, desulfurization and denitrification, flue gas dust removal, fire prevention, and other industrial spray and scrubbing tasks.

Categories: Hollow Cone Nozzles, Spray Nozzles

Connection: 2", 3", 4", 6″

Max Pressure(bar): 7

Min Pressure(bar): 0.2

Design features:

1. Tangential Swirl Nozzle features an open internal structure that is resistant to clogging. It allows large particles to pass through smoothly, ensuring stable operation in demanding conditions.

2. Tangential Swirl Nozzle offer excellent oxidation resistance and can operate reliably in various environments. It maintains a long service life even under harsh working conditions.

3. Nozzles made from silicon carbide or ceramic materials provide high surface precision and strong mechanical strength. This ensures consistent spray performance and structural stability.

4. Tangential Swirl Nozzle has extremely high hardness, close to that of diamond, delivering outstanding wear resistance. It is ideal for handling abrasive particles or slurry, significantly extending service life compared with metal nozzles.

5. The material provides excellent resistance to acids, alkalis, and various chemical media. It performs reliably in corrosive environments such as flue gas treatment and chemical processing.

6. Silicon carbide maintains its structural integrity at high temperatures. It resists deformation and degradation, making it suitable for high-temperature operating conditions.

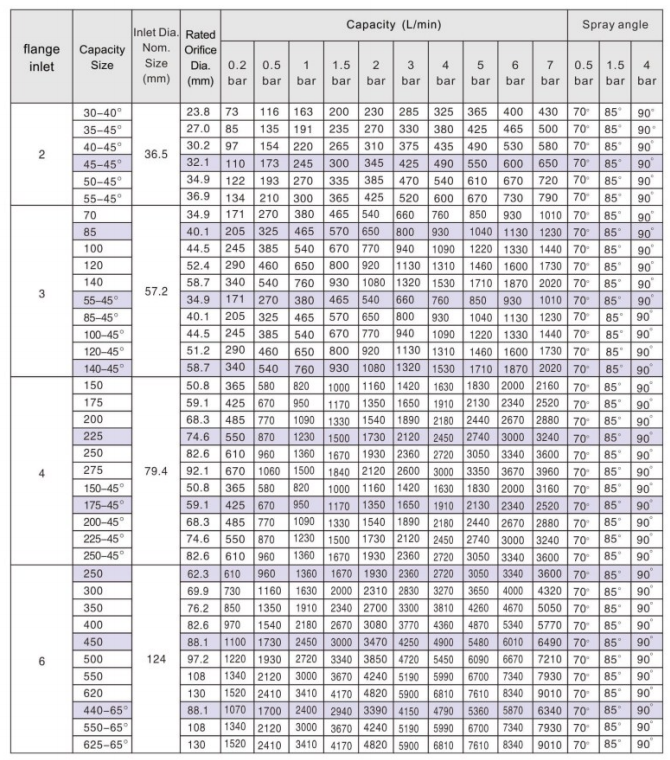

Performance Data:

Tangential Swirl Nozzle
