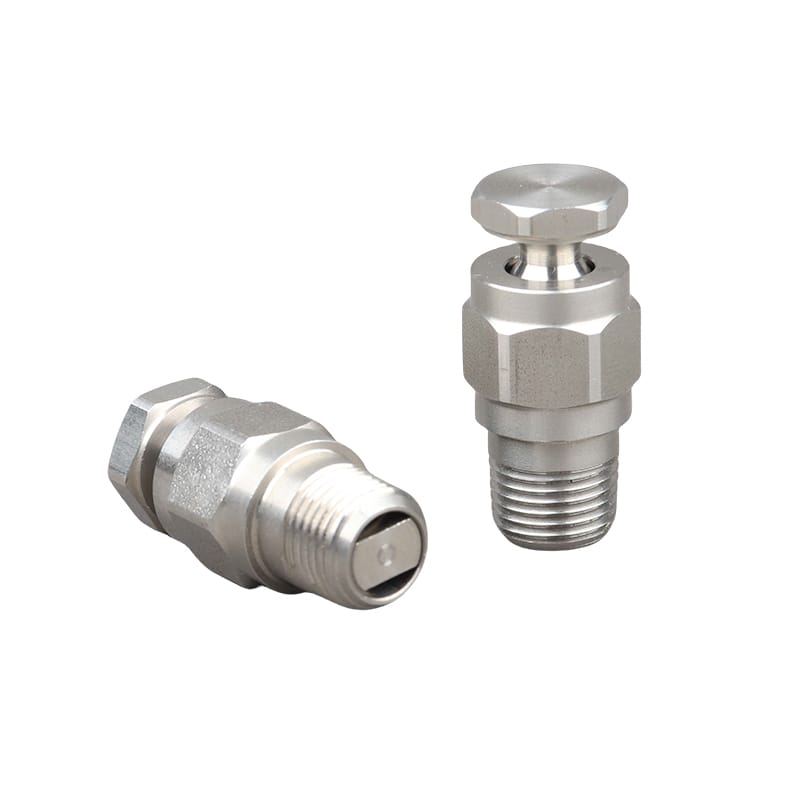

AF Hollow Cone Nozzle
AF Hollow Cone Nozzle produces a circular hollow-cone spray pattern with small to medium droplet sizes for uniform liquid distribution and efficient surface coverage. Designed with interchangeable deflector caps to achieve 120°, 150°, or 180° spray angles at low pressures, it supports a wide range of pressures and flow rates. Built for industrial applications such as chemical handling, metal processing, gas scrubbing, cooling, cleaning, and product degreasing, this nozzle delivers reliable hollow cone spray performance for various spray, washing, and cooling needs.
Design features
1. Produces a hollow cone spray pattern with a circular coverage area, ensuring uniform liquid distribution.
2. Generates small to medium droplets, providing stable atomization across a wide range of operating conditions.
3. Deflector caps determine spray angles of 120°, 150°, and 180° at low pressure, allowing flexible adjustment of spray coverage.
4. Maintains even spray distribution over a wide range of pressures and flow rates, ensuring consistent performance.
5. Deflection-type structure enhances atomization at low pressure, reducing energy consumption while maintaining effective spray performance.
6. Compact design with replaceable caps allows easy maintenance and quick adjustment without changing the entire nozzle.
7. Ring-shaped spray pattern concentrates droplets at the outer edge, improving efficiency in gas scrubbing and cooling applications.
8. Smooth internal flow path minimizes turbulence loss and supports stable, repeatable spraying performance.
Common Applications
Chemical handling, metal handling, gas scrubbing, cleaning and cooling, product degreasing, spray cooling
| Connection | 1/4″, 1/8", 3/8" |
|---|---|
| Max Pressure(bar) | 7 |
| Min Pressure(bar) | 0.4 |
