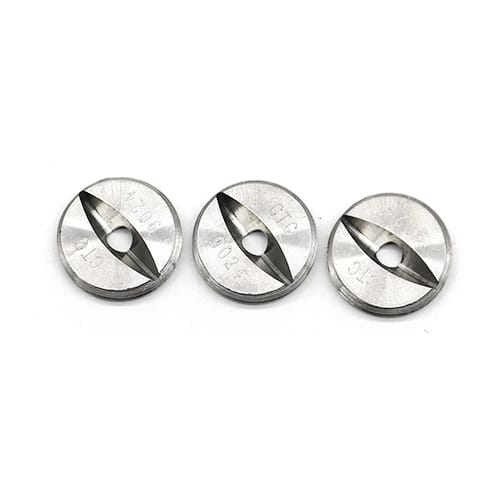

Thin Sheet Low-Pressure Fan Nozzle

Thin Sheet Low-Pressure Fan Nozzle is a compact, flat-fan spray nozzle made from durable 303 or 316 stainless steel, designed for scenarios where the spray height between the nozzle and the target surface is very low. It produces a uniform fan-shaped spray pattern with adjustable angles from 25° to 90° at low to moderate pressures (1–10 bar), making it ideal for low-pressure fan cleaning, scraper-type water absorption, lubrication, and surface rinsing in industrial systems. It is especially suitable for installations with very limited spray height, such as between spray rods and mesh or blankets. Constructed from stainless steel (303/316), it offers excellent corrosion resistance and wear resistance, ensuring stable performance and long service life in continuous operation.

Categories: Flat Fan Nozzles, Spray Nozzles

Material: 303, 316SS

Min Pressure(bar): 1

Max Pressure(bar): 10

Spray Angle: 25° ~ 90°

Features

1. This product is an excellent choice when the spray height between the spray rod and the mesh or blanket is very small. The nozzle is made of 303 or 316 stainless steel, with excellent wear resistance and corrosion resistance.

2. Thin Sheet Low-Pressure Fan Nozzle provides accurate alignment with piping systems, allowing the nozzle to be positioned precisely without interfering with pipeline connections. This helps ensure stable installation and simplifies system setup, especially in multi-nozzle arrangements. Accurate alignment also supports consistent spray direction and improves overall operating stability.

3. It features a large internal flow passage that allows higher flow capacity while reducing the risk of clogging caused by particles or impurities. The smooth internal channel minimizes turbulence and pressure loss, ensuring steady liquid flow and maintaining consistent spray performance during continuous operation.

4. The sealing surface is precision-machined and finely polished to provide a tight and reliable connection. This helps prevent leakage and seepage under different pressure conditions, improving sealing performance and ensuring safe and stable system operation over time.

5. With a compact and practical structure, Thin Sheet Low-Pressure Fan Nozzle allows easy installation, removal, and maintenance. It integrates smoothly with standard piping systems and supports efficient operation in applications such as cleaning, cooling, spraying, and fluid distribution, while helping reduce maintenance frequency and improve overall efficiency.

Applications

Suitable for low-pressure flat fan cleaning, providing uniform coverage for surface washing and rinsing processes.
Widely used for blade lubrication and cooling, ensuring smooth operation and reducing wear in mechanical systems.
Applicable in paper mill spraying systems, delivering consistent moisture control and process stability.
Ideal for washing fruits and vegetables, offering gentle yet effective cleaning performance.
Can be used in agricultural spraying applications, supporting irrigation, pesticide application, and crop maintenance.
Also suitable for general-purpose use in daily cleaning tasks and light-duty fluid distribution systems.
