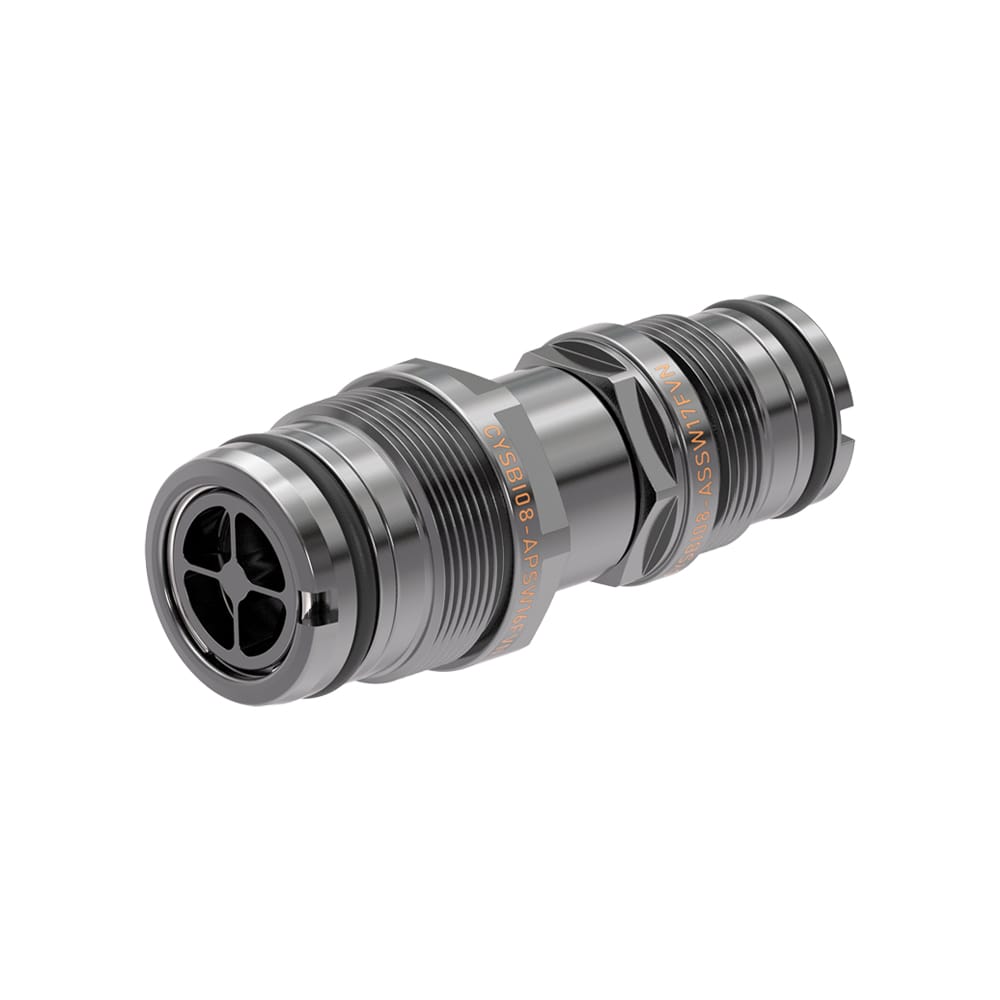

Blind Mate Quick Coupling (CYSBI)

The Blind Mate Quick Coupling (CYSBI) is designed for effortless, tool-free connections in tight or hard-to-reach spaces. Its self-aligning feature enables seamless coupling without precise positioning, ensuring efficiency and reliability. Ideal for liquid cooling systems, data centers, and industrial automation applications.

Structural features:

1. Leak-Free Sealing Structure: Adopting a flat, dustproof, and non-spill design, the coupler’s internal valves automatically close upon disconnection, ensuring zero or minimal fluid leakage. This reliably protects sensitive electronic equipment from short circuits or corrosion caused by coolant spills.

2. Floating Tolerance Capability: The connector features powerful misalignment correction, compensating for up to ±1.0mm to ±1.5mm of radial offset, with some designs compensating for angular deviations up to ±2.7°. This “float” effectively absorbs cumulative installation tolerances in modular equipment, reducing the need for high-precision machining.

3. Blind-Mate and Self-Alignment: Engineered for “blind” connections, the coupler features a generous chamfer and self-alignment design that guides the connector into the correct mating position. This allows for quick, secure connections even in inaccessible, space-constrained, or visually obstructed areas.

4. Lock-Free Design: The coupler itself has no locking mechanism. Instead, it relies entirely on the external equipment’s frame, rails, or panel for final locking. This simplifies the connection process, allowing for true “plug-and-play” operation without any extra locking actions.

5. High Durability and Corrosion Resistance: Constructed from stainless steel or anodized aluminum, the coupler offers exceptional corrosion resistance to salt spray and humidity. It maintains a long operational life, typically rated for 2,000 to 5,000 connection cycles, making it suitable for harsh industrial and outdoor environments.

6. Multiple Interface Options: To provide flexible integration with various piping systems, the connector supports multiple interface types, including threaded and panel-mount options. This modular design allows for easy, customized installation without replacing the entire coupler.

Data Center Liquid Cooling Quick Connect

High-Efficiency Cooling

Our quick-connect fittings provide efficient liquid cooling solutions for modern data centers, reducing heat and optimizing performance.

Leak-Proof and Secure

Designed with precision engineering, our connectors ensure a leak-proof and secure connection, enhancing reliability and safety.

Easy Maintenance

With tool-free quick-release mechanisms, our liquid cooling connectors make maintenance and upgrades hassle-free.

Application Scenarios

Data Centers & Server Liquid Cooling: Enables quick coolant line connections between circuit boards and chassis in high-density server racks, simplifying installation and maintenance.

Radar & Aerospace Equipment: Provides reliable liquid cooling solutions for airborne, shipborne, and vehicle-mounted thermal management systems, such as those used in radar and defense electronics.

Medical Imaging Equipment: Suitable for high-power cooling systems found in CT, MRI, and other medical imaging devices, where safety and leak prevention are critical.

Industrial Equipment & Defense Electronics: Supports quick-connect liquid cooling for high-power modules in telecommunications, broadcasting, and industrial power equipment requiring frequent connections and disconnections.
