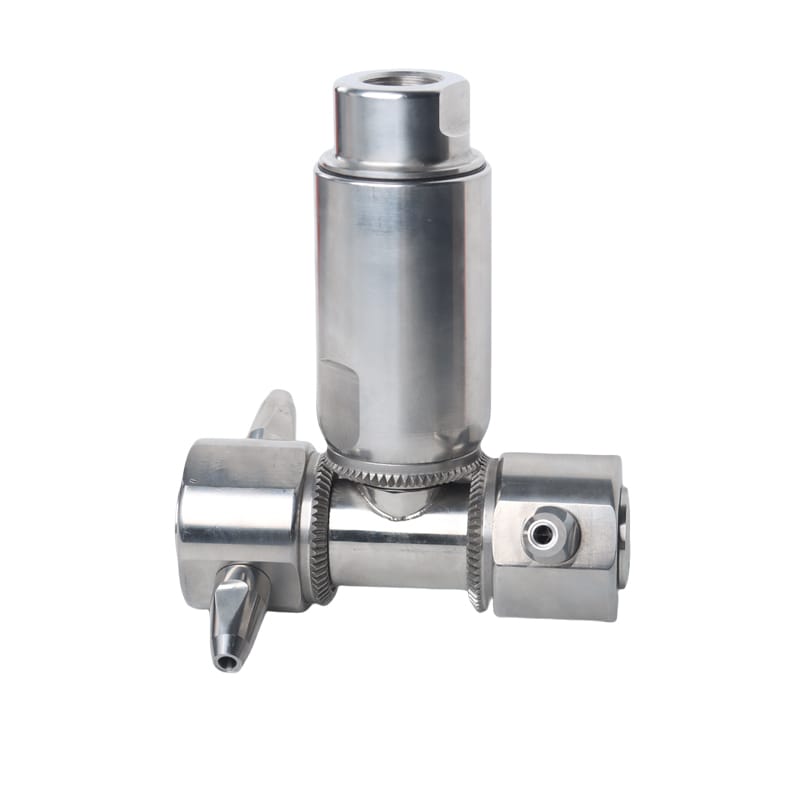

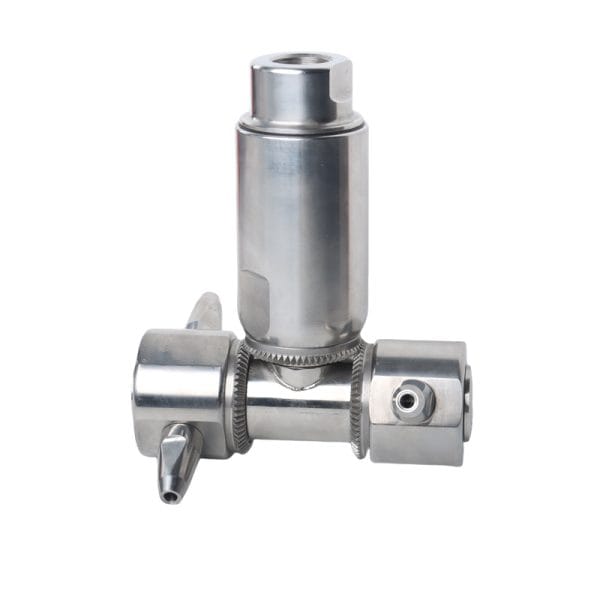

CY08 Rotary Tank Washing Nozzle

Performance characteristics:

1. The self-cleaning and self-lubricating design of the horn cleaning nozzle meets the hygiene requirements

2. The pressure increases and the speed is constant, thereby obtaining a greater impact force

3. The water column jet has a long range, a large impact force, and a low liquid consumption

4. The horn tank washer can realize X-axis and Y-axis rotation, and can realize 360° three-dimensional cleaning without dead angles

Working principle:

The nozzle of the horn rotating tank washer rotates around the vertical axis: This rotation action is achieved by the torque generated by a horizontal auxiliary nozzle. When the washing liquid is sprayed through the main nozzle, the reaction force generated will drive the horizontal auxiliary nozzle to rotate, and then drive the entire nozzle group to rotate around the vertical axis.

The horn cleaning ball nozzle seat rotates around the horizontal axis: while the nozzle rotates around the vertical axis, the two symmetrically distributed auxiliary nozzles on the nozzle seat will also generate torque to drive the nozzle seat to rotate around the horizontal axis. In this way, the liquid column sprayed by the main nozzle can rotate simultaneously in both vertical and horizontal directions.

Product advantages:

1. Efficient cleaning: Since the nozzle can rotate and spray within a 360-degree range, it can ensure that every corner of the inner wall of the tank is fully cleaned, greatly improving the cleaning efficiency.

2. Low water consumption and energy consumption: Compared with traditional cleaning methods, the horn tank washer can significantly reduce water and energy consumption during the cleaning process, thereby reducing production costs.

3. Long life and maintenance-free: Since the horn tank washer uses high-quality materials and precise processing technology, it has a long service life and does not require frequent maintenance during use.
