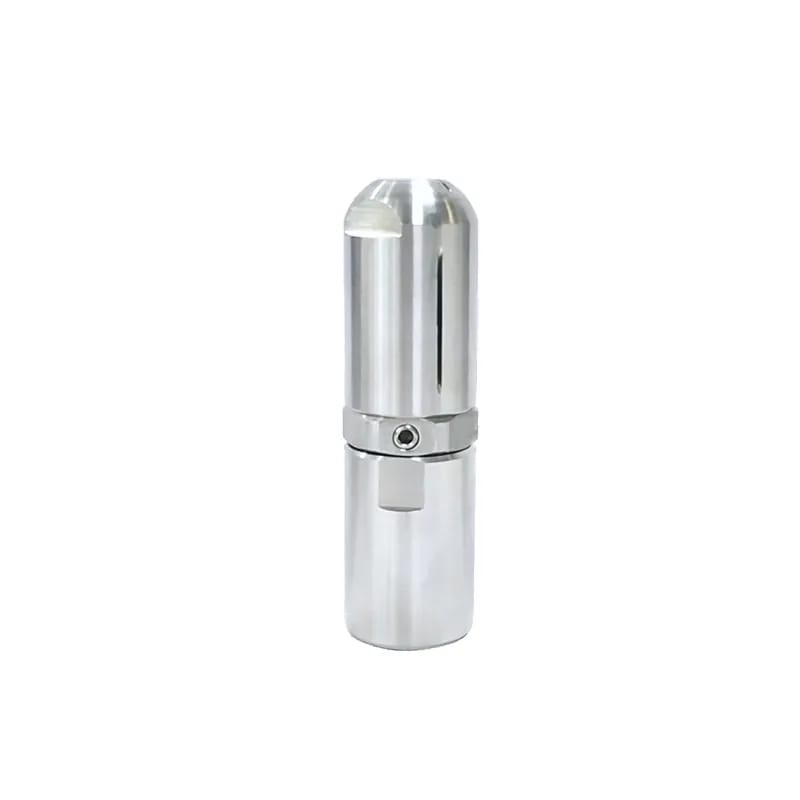

19250 Rotary Container Cleaning Nozzle

Model: 19250

19250 Rotary Container Cleaning Nozzle is a compact, fluid-driven rotary nozzle designed for thorough 360° internal cleaning of small containers, drums, and vessels. Featuring two flat fan spray nozzles that generate a self-rotating drive through 25 mm spray orifices, it delivers lateral jets and full coverage cleaning with no dead zones. Constructed from durable 316L stainless steel with rigid shaft and collar for extended wear resistance, it supports pressures up to 12 bar and cleaning diameters up to ~8.2 ft, making it ideal for industrial wash applications.

Categories: Spray Nozzles, Tank Cleaning Nozzles

Cleaning Mode: Rotation

Connection: 1/2", BSPT

Material: 316L

Max Cleaning Diameter: 8.2'

Max Flow(L/min): 150

Max Pressure(bar): 12

Max Temperature: 200°F

Min Entry Diameter: 1"

Min Pressure(bar): 1.5

Comprehensive 360° Coverage
Two flat nozzles generate centrifugal force and a lateral spray; a third nozzle at the top provides nearly complete spherical coverage. As the nozzles rotate, they create a spherical spray pattern that systematically wets every inner surface of the container, ensuring thorough cleaning with no blind spots.

Exceptional Wear Resistance
The main body, shaft, and collar are all precision-machined from 316L stainless steel. This rigid construction enables the nozzle to withstand high-impact cleaning forces while resisting deformation and wear over extended periods of service.

Flexible Flow Rate Selection
Depending on the pressure applied, the flow rate can be adjusted from approximately 16 L/min to 51 L/min across a pressure range of 1.5 to 5 bar, allowing operators to match cleaning intensity to the demands of each specific application.

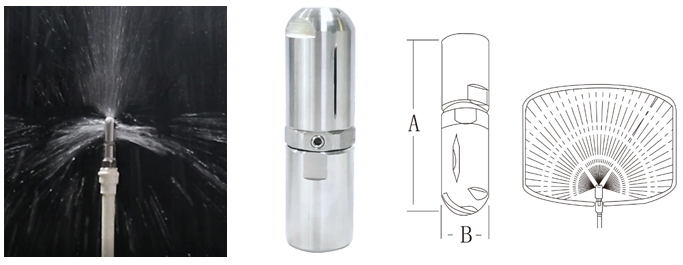

Compact 19250 Rotary Container Cleaning Nozzle with spray angle indication

Cleaning Mode	Rotation
Connection	1/2", BSPT
Material	316L
Max Cleaning Diameter	8.2'
Max Flow(L/min)	150
Max Pressure(bar)	12
Max Temperature	200°F
Min Entry Diameter	1"
Min Pressure(bar)	1.5
