Wide Angle Fan Nozzle

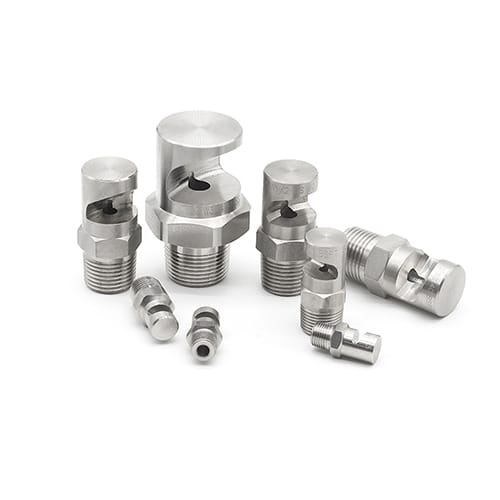

Wide Angle Fan Nozzle produces a wide-angle flat fan spray pattern with medium impact and uniform liquid distribution, ideal for broad surface coverage in industrial processes. Built with precision-machined round holes and a large, unobstructed flow channel to reduce clogging, it supports spray angles from 70° to 150°, pressures from 0.2 to 4 bar, and flow rates up to 410 L/min. Made from durable stainless steel (303, 304, 316SS), it’s suitable for cleaning, conveyor belt cooling, film processing, fire protection, water curtains, and similar applications. It also ensures stable spray performance and reliable coverage, making it suitable for continuous operation across different system conditions.

Categories: Flat Fan Nozzles, Spray Nozzles

Material: 303, 304, 316SS

Connection: 1", 1/2", 1/4″, 1/8", 3/4", 3/8"

Max Flow(L/min): 410

Min Pressure(bar): 0.2

Max Pressure(bar): 4

Spray Angle: 70° ~ 150°

Design Features:

Wide Angle Fan Nozzles feature a wide angle fan spray pattern that produces medium impact, uniform distribution of the sprayed liquid mist, and medium droplet size. Round nozzle holes and large, unobstructed flow channels reduce blockage to a lower position. The W series universal wide angle nozzles are also suitable for air and steam jets. All nozzles are provided with precision machined guide surfaces to reliably and accurately control the deflection angle and spray angle. The W series universal wide angle nozzles are finely manufactured from solid rod stock and have external pipe threaded inlet connections.

Additional Performance Advantages：

1. Wide Angle Fan Nozzle supports extremely wide spray angles from 70° up to 150°, enabling maximum surface coverage and reducing the number of nozzles required in large-area spray systems.

2. Capable of handling high flow rates up to 410 L/min, Wide Angle Fan Nozzle is suitable for applications requiring large-volume liquid distribution and rapid coverage.

3. It can also operate with air or steam, providing additional flexibility for different process conditions beyond standard liquid spraying.

4. Precision-machined guide surfaces ensure accurate control of spray angle and deflection, helping maintain consistent spray positioning in multi-nozzle systems.

5. Manufactured from solid bar stock, it offers higher structural strength and durability compared to cast or assembled designs.

6. It’s suitable for overlapping spray arrangements, allowing multiple nozzles to create a continuous and uniform spray curtain across wide areas.
