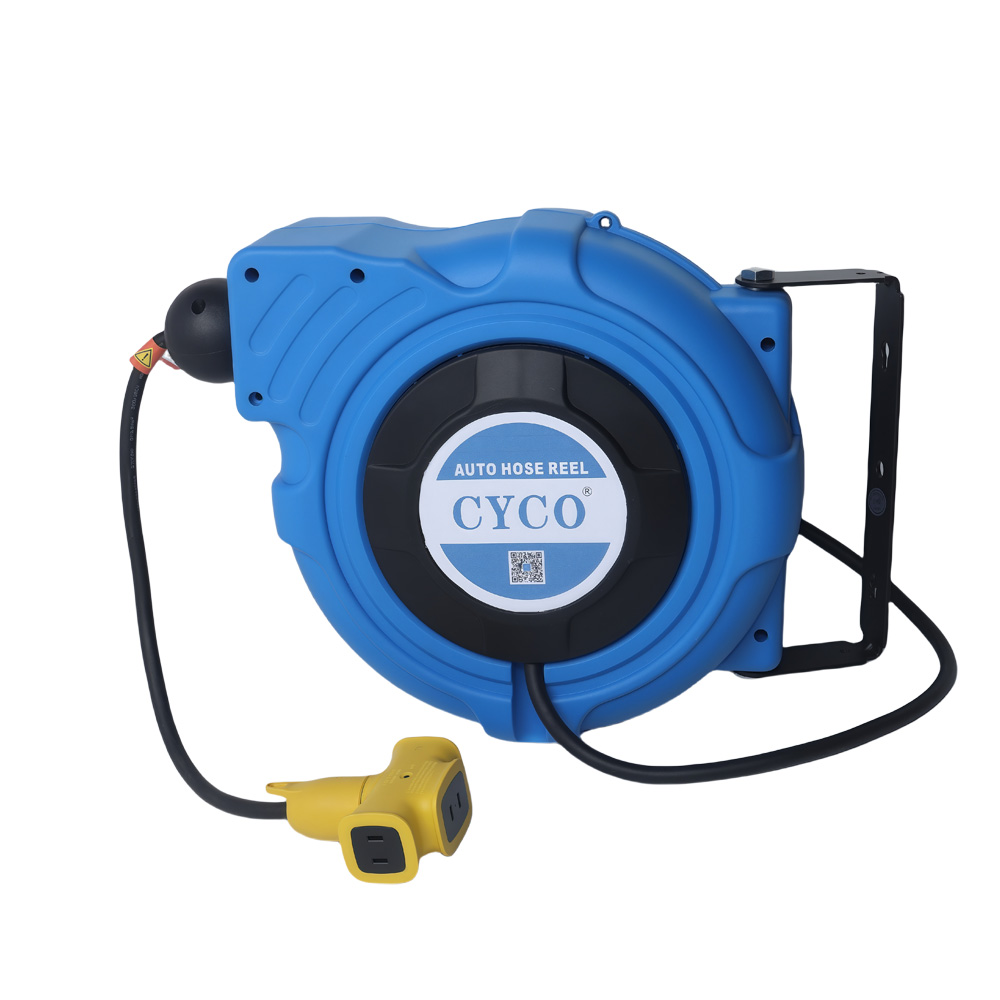

Automatic Retractable Power Cord Reel

Model: CY-R6510C

Automatic Retractable Power Cord Reel (Model CY-R6510C) is a durable and reliable retractable power cord reel designed to provide safe and organized electrical power access for workshops, garages, and industrial spaces. Its intelligent built-in self-locking and self-arranging mechanism allows for smooth cable extension and automatic, tangle-free retraction. Constructed with a durable ABS polymer shell, a robust copper spindle, and smooth double steel bearings, it ensures reliable performance and long service life. The included mobile mounting bracket swings 180° for flexible positioning. Available in multiple cable specifications and lengths (10–20m) for 220V power, this Automatic Cable Reel can also be customized with specific cords and plugs to meet your exact needs. Equipped with a wear-resistant ratchet and pawl assembly, it maintains stable locking performance even after repeated use.

Categories: Cable Reels, Hose Reels

Technical Specifications

Parameter	Specification
Product Model	CY-R2X1.5-10
Cable Specification	21.5mm² / 22.5mm² / 31.5mm² / 24+1*1.5mm²
Output Hose Length	10m / 12m / 15m / 20m
Working Voltage	220V
Packing Size	350170400mm
Minimum Order Quantity (MOQ)	200pcs

Product Performance

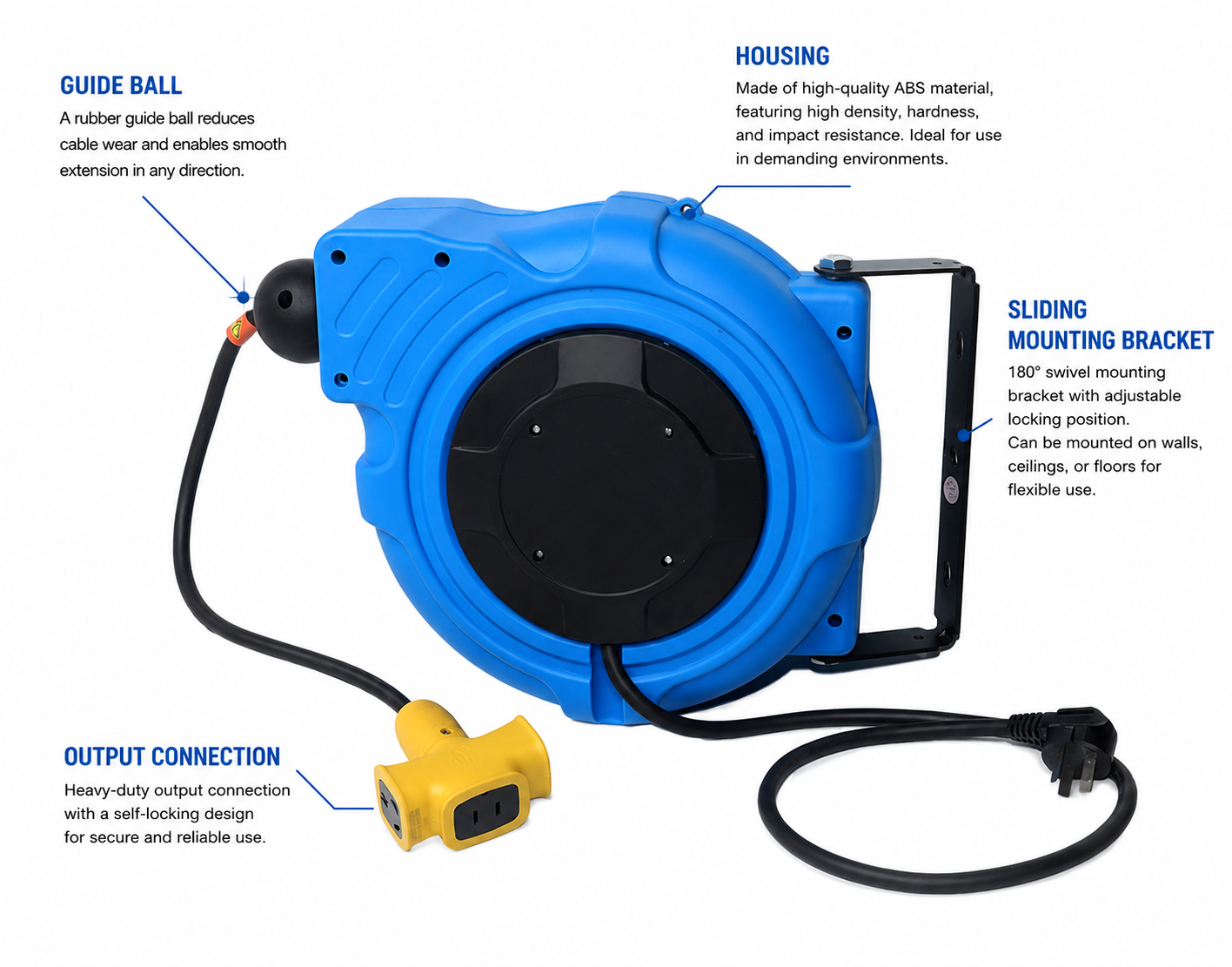

1. Shell ABS polymer material: low density, high hardness and heat resistance, suitable for making corrosion-resistant parts and insulation parts.
2. Positioning ball: plastic products, can adjust the length of the output pipe line left outside.
3. Output tube interface: steel special fast self-locking connector.

Automatic Retractable Power Cord Reel

Product Advantages

Automatic retractable design: The retractable power cord reel features a built-in spring-driven mechanism that locks the cable at any desired length with one pull and retracts it automatically with a second tug, preventing tangling and keeping the workplace tidy.
Dual steel bearings with full lubrication: Ensures sufficient lubrication to minimize friction and wear, significantly extending the service life of the Automatic Cable Reel.
Durable copper spindle and ratchet mechanism: The copper spindle is resistant to breakage for long-lasting use; the high-quality wear-resistant pawl and ratchet seat are not easily deformed or misaligned.
Flexible mobile mounting bracket: Equipped with a 180° rotatable bracket for a large working range, suitable for various scenarios.
High-quality copper core wire: Uses copper core wire (for electric reels and light-duty reels) to ensure stable power transmission.
Sturdy impact-resistant housing: Made of high-strength engineering plastic, the enclosure is shock-resistant and corrosion-resistant for complex environments.
Multi-outlet power configuration: Comes with industrial-grade extension sockets to support simultaneous power supply for multiple devices.
Dust-proof enclosed structure: Sealed housing effectively blocks dust and moisture, protecting the internal components of the retractable power cord reel and reducing maintenance requirements.
Easy installation and disassembly: The mounting bracket allows convenient installation, removal and relocation.

Application Scenarios

This retractable power cord reel is widely used in auto repair workshops, vehicle detailing centers, manufacturing facilities, home garages, and construction sites, providing convenient power access for electric tools, cleaning equipment, and temporary workstations. The spring-powered retraction system delivers the convenience commonly found in a spring cable reel while providing safe and efficient cable management for electrical applications.

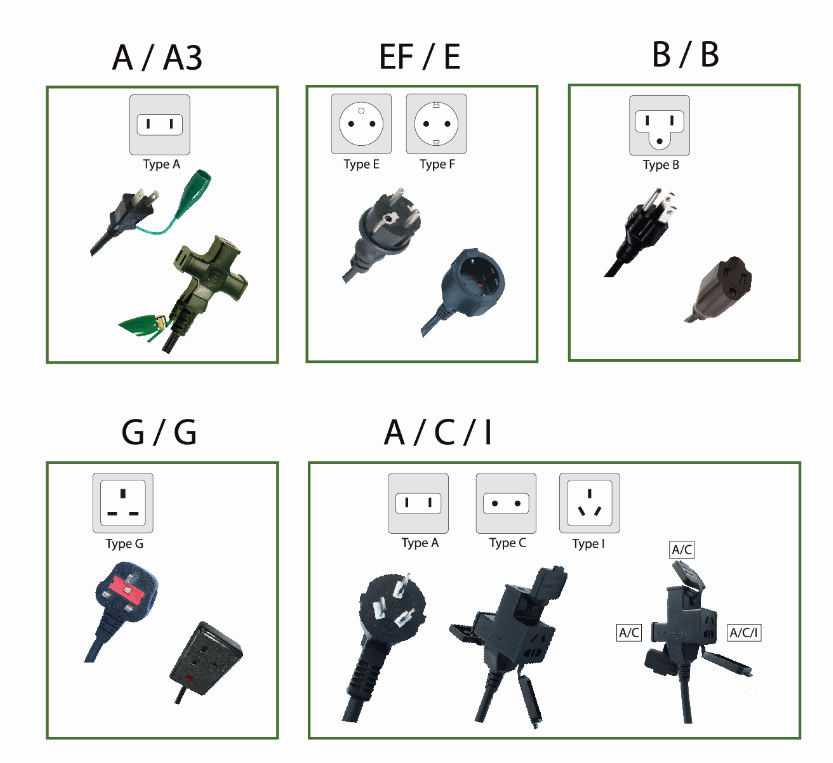

Cords and power plugs can be customized
