Model: FF96-P

CYCO FF96-P hose reel is a professional-grade hose reel designed for precision and order. Its defining feature is the Recirculating Screw Hose Winder, which enables single-turn winding. This mechanism layers the hose sequentially on the reel, achieving neat and orderly coiling to prevent tangling, kinking, and abrasion.

The product offers significant compatibility and flexibility. The Drive Method can be powered by AC motors, DC motors, air motors, or hydraulic motors. The Transmission Method offers a choice between gear or chain drive, allowing it to adapt to various industrial power environments.

For connectivity, the reel’s Inlet features a 1″ 90° swivel joint with internal/external threads, while the Outlet is equipped with a 1″ internal/external thread connection.

Categories: Heavy Duty Hose Reels, Hose Reels

Design Features:

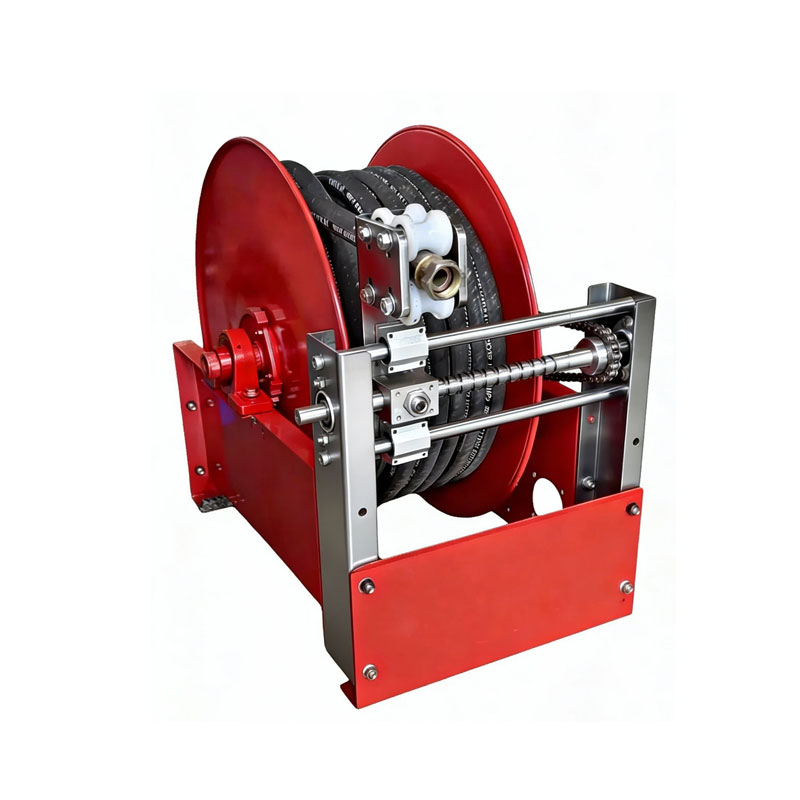

1. Precision reciprocating screw-guided hose winding system: The reel is equipped with a circulating spiral hose winder driven by a chain-synchronized reciprocating screw mechanism. It winds the hose in single turns and layers them sequentially, ensuring neat, evenly spaced coiling without tangling, kinking, or uneven stacking. This reduces friction and abrasion on the hose, greatly extending its service life and preventing premature wear caused by misalignment.

2. Optimized high-capacity hose recovery design: Engineered for large-volume hose storage, it accommodates 1-inch inner diameter hoses with a maximum winding length of 30 meters. The reel features a 630 mm diameter and a 267 mm hub width, providing sufficient space for the hose to coil smoothly even at full length, avoiding overcrowding and ensuring stable operation.

3. Versatile multi-drive configuration: To adapt to different power sources and site conditions, the reel supports multiple drive options, including AC motor, DC motor, air motor, and hydraulic motor. This flexibility allows seamless integration into various industrial setups, from fixed workshops to mobile equipment.

4. Robust gear or chain transmission system: The power transmission adopts either gear drive or chain drive, both designed for high torque and heavy-duty use. It delivers consistent, reliable power transfer with minimal slippage, ensuring smooth, controlled hose retraction even under full load conditions.

5. High-pressure swivel inlet connection: The inlet features a 1-inch 90° swivel joint with both internal and external thread connections, rated for a working pressure of 20 MPa. The swivel design eliminates hose twisting during use, while the high-pressure construction ensures leak-free performance in demanding fluid transfer applications.

6. Standardized hose outlet interface: A 1-inch internal/external thread outlet is provided, offering a universal connection point for quick and secure hose attachment. It simplifies installation and compatibility with various tools, pumps, and fluid delivery systems.

7. Durable industrial-grade construction: Built with a heavy-duty steel frame and precision-machined components, the reel is designed to withstand the harsh conditions of mining, petrochemical, and heavy machinery environments. The reinforced structure resists impact, corrosion, and long-term heavy loads without deformation or failure.

8. Low-maintenance, high-efficiency operation: The fully synchronized drive and winding system requires minimal manual intervention. The sealed bearings, lubricated chain, and wear-resistant guides reduce routine maintenance needs, ensuring continuous, trouble-free operation even with frequent daily use.

Common Applications:

This hose reel is widely used in mining, petrochemical engineering, construction machinery, large equipment support, engineering vehicles and factory workshops. It is suitable for conveying compressed air, water, oil, fuel and other media, keeping pipelines tidy and improving operation efficiency in various working sites.
