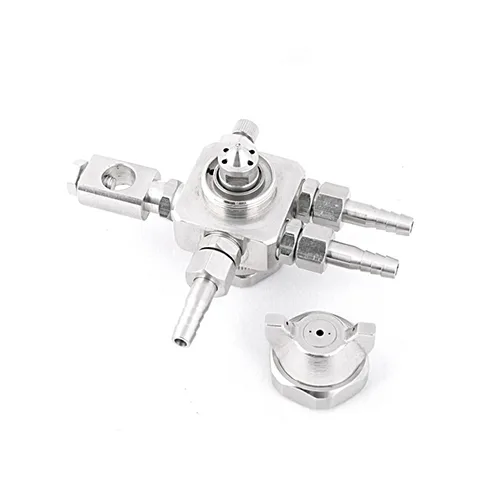

DK Automatic Fine Atomizing Nozzle

DK Automatic Fine Atomizing Nozzle is a high-precision automatic air atomizing spray nozzle designed for fine misting and precise fluid coverage. It features three-fluid automatic atomization with independent control of liquid atomizing gas and fan gas pressures, allowing fine adjustment of flow rate, droplet size, spray distribution, and coverage. An extra liquid recirculation channel maintains consistent flow of viscous liquids, and a built-in cleaning needle valve helps prevent clogging. With adjustable flow from approximately 2.8 L/h to 179 L/h and optional automatic on/off timing control (up to 180 cycles per minute), it’s ideal for precision spraying, coating, humidification, and viscous fluid spray applications in industrial systems.

Categories: Air Atomizing Nozzles, Spray Nozzles

Material: SS

Description

DK Automatic Fine Atomizing Nozzle is designed to provide precise, consistent atomization for a variety of industrial applications. By combining air and liquid in an optimized internal structure, this nozzle efficiently atomizes liquids into fine droplets, ensuring uniform spray patterns. It is ideal for processes requiring precise control of liquid flow and droplet size, such as cooling, humidification, lubrication, coating, and cleaning.

Durable and corrosion-resistant stainless steel construction ensures long-lasting performance in challenging environments. With interchangeable components and easy-to-maintain modular design, DK Automatic Fine Atomizing Nozzle delivers efficient, high-quality atomization with minimal maintenance required.

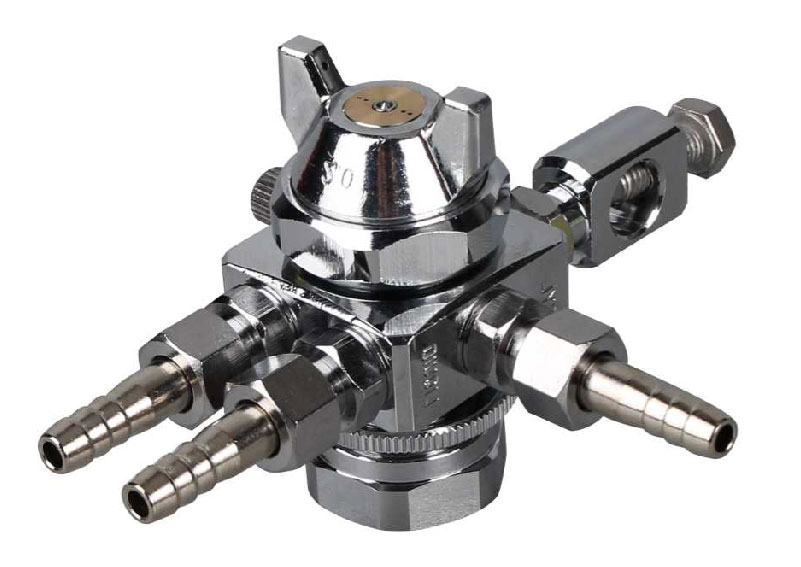

dk-automatic-fine-atomizing-nozzle

Model Overview

DK-1 Model

The DK-1 model is designed to provide fine atomization with a round mist or fan-shaped spray pattern. By mixing air and liquid internally, it produces fine, uniform droplets suitable for applications that require minimal liquid usage and precise spray control. The nozzle activates when air pressure overcomes the spring force, ensuring stable atomization under a higher air pressure range. Ideal for applications such as industrial cooling, humidification, lubrication, and coating.

Key Features:
- Internal air-liquid mixing for consistent fine droplets.
- Requires higher air pressure to activate and maintain atomization.
- Ideal for applications requiring minimal liquid and precise atomization.

DK-6 Model

The DK-6 model enhances atomization performance with its unique design, which separates air and liquid channels before mixing. This feature allows for larger liquid flow rates while maintaining fine mist atomization. Operating at a lower pressure range, the DK-6 model is more versatile and can handle larger volumes of liquid with efficient spray coverage. It is commonly used for larger-scale humidification, cleaning, and coating applications.

Key Features:
- External air-liquid mixing for improved atomization and spray coverage.
- Lower operating pressure range, allowing for larger flow rates.
- Versatile for large-scale humidification, cleaning, and industrial processes.
