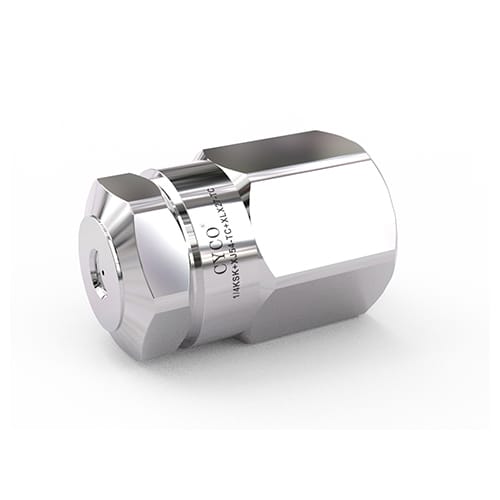

KSB Spray Drying Nozzle
KSB Spray Drying Nozzle delivers superior reliability for hygiene-critical processes. Its maximum free passage and anti-bearding design ensure exceptional clog resistance, minimizing contamination and downtime. Featuring a hand-tightening pressure of up to 450 bar (7000 psi) and an integrated check valve, it allows for tool-free maintenance and prevents backflow. Constructed from 303 stainless steel with tungsten carbide internals and hygienic self-draining surfaces, it guarantees durability and easy cleaning. This nozzle provides finely tunable, uniform droplet size for optimal product quality in dairy, food, chemical, biochemical, and pharmaceutical processing.
Design Features
KSB Spray Drying Nozzle utilizes an optimized swirl chamber structure that generates a stable centrifugal hollow cone spray pattern, ensuring consistent atomization performance and efficient heat exchange during drying. The internal flow path is carefully engineered to maintain smooth liquid acceleration, helping achieve uniform droplet dispersion and improved process control.
The nozzle incorporates a reinforced core configuration that enhances flow stability while minimizing pressure fluctuations, allowing reliable operation across a wide pressure range. Its structure supports fine adjustment of droplet size by regulating operating parameters, enabling flexible adaptation to different production requirements.
A wear-resistant construction using stainless steel combined with high-hardness carbide components ensures long service life under high-pressure conditions. The integrated structural design reduces mechanical stress concentration, improving durability and maintaining stable performance over extended operating periods.
Product Advantages
KSB Spray Drying Nozzle provides consistent droplet formation with controlled particle size distribution, helping improve final product quality and drying efficiency. The optimized internal geometry enhances fluid utilization, reducing energy consumption while maintaining strong atomization performance.
Its streamlined internal passages help reduce material buildup and improve flow continuity, supporting stable long-term operation and minimizing unexpected interruptions. The structural design also contributes to reliable sealing performance, ensuring safe and stable operation under high-pressure conditions.
The nozzle allows convenient maintenance through a simplified assembly structure, enabling quick disassembly and replacement when required. With its balanced performance in atomization, durability, and operational stability, it is suitable for applications across food processing, chemical production, and pharmaceutical industries.
Applications
Dairy, food processing, chemical processing, biochemical processing, pharmaceutical processing
| Material | Carbide Alloy, SS, Tungsten Carbide |
|---|---|
| Min Pressure(bar) | 35 |
| Max Pressure(bar) | 450 |
| Spray Angle | 34° ~ 109° |
