Spring-Driven vs. Motor-Driven Hose Reels: A Complete Industrial Guide
May 14, 2026 | Motor-Driven Hose Reel, Spring-Driven Hose Reel
What is a Spring-Driven Hose Reel?
Definition
A spring-driven hose reel is an automatic retraction device that uses a built-in spring as its power source, requiring no external electricity to retract the hose.
Working Principle
When the operator pulls out the hose, the internal spring is gradually stretched and stores energy. After use, a gentle tug on the hose releases the locking mechanism, and the stored spring energy automatically retracts the hose smoothly back into the reel.
Key Features
- No external power source required, suitable for locations without electricity or convenient power supply
- Automatic hose retraction, improving workplace cleanliness and safety
- Simple structure, low failure rate, and low maintenance costs
- Compact design with flexible installation options (wall, ceiling, floor mount, etc.)
Typical Applications
- Automotive repair shops (pneumatic tools, low-pressure water lines)
- General manufacturing assembly stations
- Equipment maintenance and service bays
- Light to medium industrial environments for air, water, and grease delivery
What is a Motor-Driven Hose Reel(Electric Hose Reel)?
Definition
A motor-driven hose reel, also known as electric hose reel, is an integrated system that uses an electric motor to achieve automatic hose extension and retraction, commonly used in high-frequency, long-distance, or heavy-load industrial applications.
Working Principle
The operator controls motor forward/reverse via a switch, remote control, or automation system signal, enabling precise retraction and extension. Motor reels are typically equipped with limit switches, overload protection, and other control components to ensure safe and reliable operation.
Key Features
- Can handle much longer and heavier hoses (up to several hundred feet, with inner diameters up to 2 inches or more)
- Fully automatic control, labor-saving operation, significantly reducing operator fatigue
- Adaptable to various voltages (AC220V, AC380V, DC24V, etc.) and industrial control systems (PLC, relays, etc.)
- Supports integration into automated production lines for coordinated control
Typical Applications
- Heavy industrial production lines (welding cables, hydraulic hoses, cooling water lines) Large equipment cooling systems
- High-frequency automated environments (e.g., automotive welding lines, logistics sorting lines)
- Fire protection systems (rapid deployment of large-flow hoses)
- Agricultural irrigation (automatic retraction of long-distance water hoses)

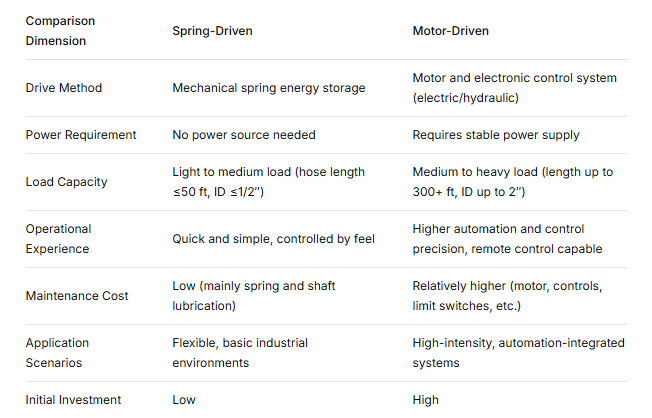

Spring-Driven vs. Motor-Driven: Key Differences
The most practical difference: Spring reels prioritize simplicity and reliability; motor reels/electric hose reels prioritize automation and labor savings.
How to Choose for Different Industrial Scenarios
Automotive repair shops: Spring-driven reels for air and water. Mechanics use them dozens of times per day for air tools. A 3/8 inch x 50 ft air hose reel with spring retraction is standard.
Manufacturing assembly lines: Motor reels/electric hose reel for overhead applications. If a hose must travel 100 ft across a production cell, a motor reel with remote control prevents floor clutter and trip hazards.
Hydraulic equipment maintenance: Motor reels/electric hose reel with hydraulic swivels. Handling 1inch ID hydraulic hose filled with oil at 4000 psi is nearly impossible with spring tension alone.
Food and pharmaceutical plants: Stainless steel spring reels for wash-down. These environments need low maintenance, corrosion resistance, and no electrical sparks near solvents.
Agricultural irrigation: Motor reels/electric hose reels for long water hoses. A 200 ft, 1 inch water hose on a motor reel saves time when moving between fields.

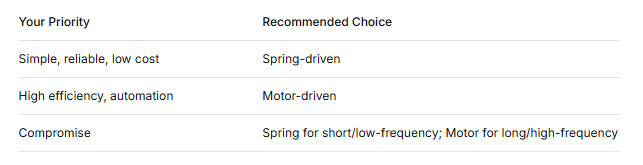

Which Hose Reel is Better for Your Application?
a.From an “Efficiency vs. Cost” Perspective
Limited budget, not demanding peak efficiency → Spring-driven
Pursuing long-term efficiency with higher budget → Motor-driven/electric hose reel
b.From a “Manual Operation vs. Automatic Control” Perspective
Willing to accept manual pull-out and retraction → Spring-driven
Want to minimize manual operation → Motor-driven/electric hose reel
c.From a “System Integration Difficulty” Perspective
Standalone use, no integration needed → Spring-driven, install and use immediately
Requires connection to PLC or upper computer system → Motor-driven/electric hose reel
d. From a “Maintenance Convenience” Perspective
Want the simplest maintenance possible → Spring-driven
Have professional electrical support and can accept periodic electronic maintenance → Motor-driven/electric hose reel

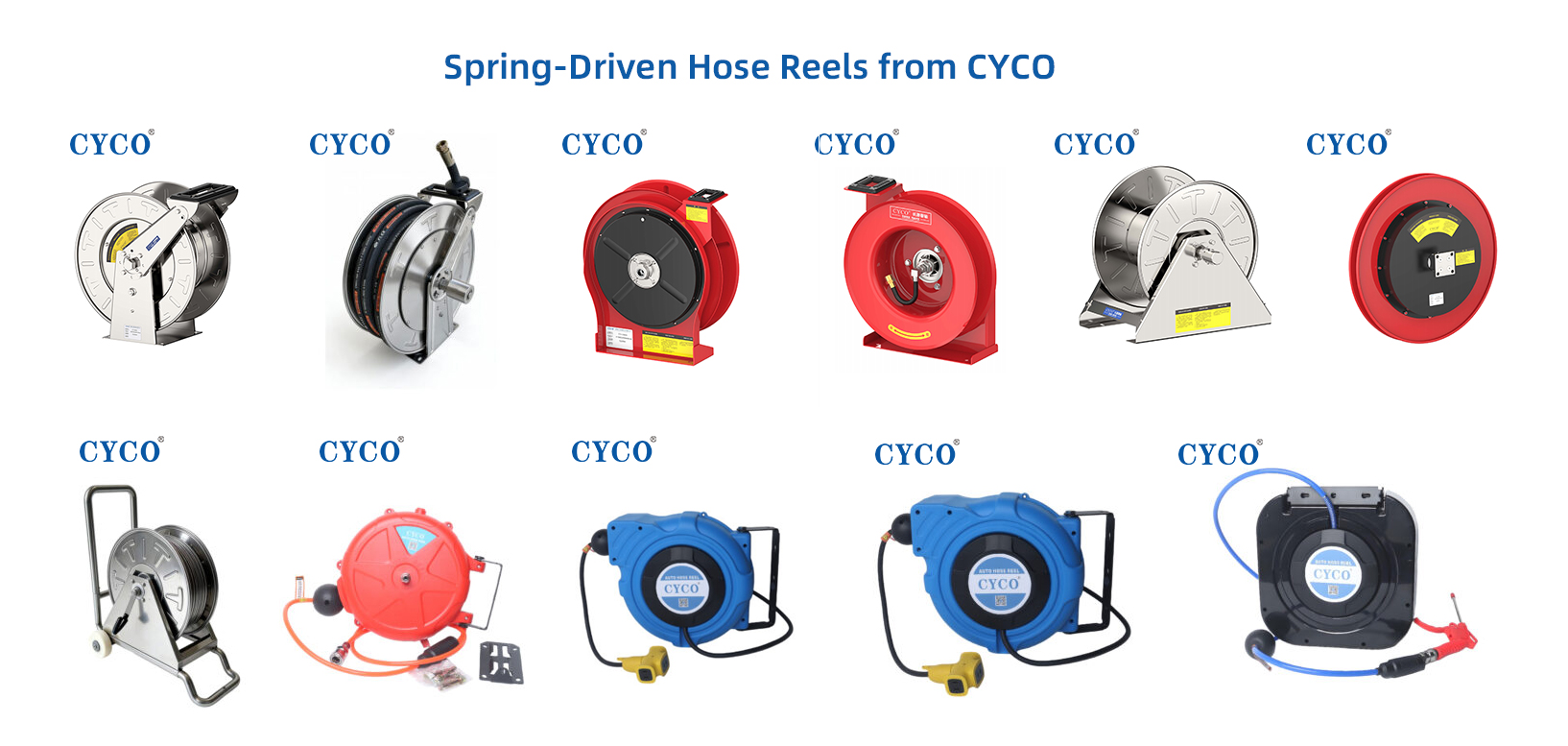

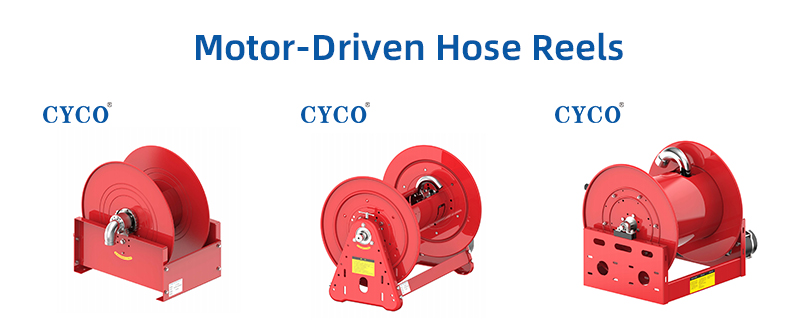

Why Choose CYCO Industrial Hose Reels
Industrial-Grade Structural Design for Complex Environments
CYCO reels are built with heavy-gauge steel, sealed bearings, and corrosion-resistant coatings, capable of withstanding daily impact, dust, moisture, and some corrosive environments. Suitable for harsh conditions including industrial manufacturing and marine engineering.
Multiple Drive Options (Spring / Motor / Custom)
CYCO offers spring-driven, motor-driven, and hydraulic-driven options, meeting one-stop selection needs from light maintenance to heavy automated production lines.
High Corrosion-Resistant Materials for Industrial and Marine Environments
Stainless steel series reels meet the requirements of high-cleanliness or high-corrosion environments such as food processing, pharmaceutical plants, and offshore platforms.
Multiple Installation Options: Wall, Ceiling, Floor Mount
Regardless of site space constraints, CYCO provides corresponding mounting brackets and configuration solutions to maximize space utilization.
Customizable OEM / Project Solutions
As an OEM manufacturer, CYCO supports customizations including:
Specific inlet/outlet sizes
Non-standard hose lengths and materials
Special colors, logos, and packaging
Project-based batch supply
Application Coverage
Industrial Manufacturing: Assembly lines, welding stations, pneumatic tools
Energy Equipment: Power plants, wind power maintenance, petrochemical
Fluid Conveying Systems: Oil, water, coolant, chemicals
Automated Production Lines: PLC-coordinated automatic retraction systems
Fast Response
Bulk pricing and technical drawings are available within 24 hours via our online inquiry system or WhatsApp.
Whether you need a simple, reliable spring-driven air reel or a fully automated motor-driven hydraulic system reel, CYCO delivers true industrial-grade reliability at competitive prices.
