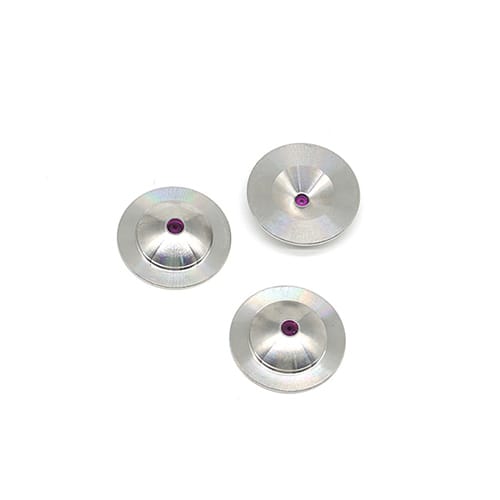

Thin Sheet High Pressure Needle Nozzle
Thin Sheet High Pressure Needle Nozzle is specially developed for demanding industrial cleaning operations. It produces a powerful and precise 0° needle-like solid stream, making it an ideal choice for high-pressure cleaning of long webs, felts, blind hole rollers, and grooved rollers. The nozzle adopts a thin-sheet structure, allowing installation in limited spaces and ensuring efficient performance when the spray distance is small. Manufactured from high-quality stainless steel and equipped with a ceramic or ruby orifice insert, it offers excellent wear resistance and long service life, significantly reducing downtime and improving production efficiency. Operating at pressures up to 55 bar with a maximum flow rate of 33 L/min, it ensures stable and reliable cleaning performance while supporting continuous industrial operation.
Design features
1. Thin Sheet High Pressure Needle Nozzle features an ultra-thin profile, allowing easy installation in oscillating spray systems and space-limited equipment.
2. It produces a 0° needle-like solid stream with highly concentrated flow, delivering strong impact force and precise targeting for high-pressure cleaning applications.
3. Stable jet performance is maintained within a pressure range of 1.5 to 55 bar, ensuring reliable operation in continuous oscillating cleaning processes.
4. The focused high-velocity jet effectively removes contaminants from challenging surfaces such as felts, blind hole rolls, and grooved rolls.
5. A ruby or ceramic orifice insert provides excellent hardness and wear resistance, maintaining consistent orifice size under long-term high-pressure operation.
6. High energy conversion efficiency ensures strong impact performance while minimizing energy loss during continuous cleaning cycles.
7. With a maximum flow rate of up to 33 L/min, it supports both precision cleaning and high-efficiency industrial processes.
8. Constructed from corrosion-resistant stainless steel, it offers reliable durability in demanding industrial environments.
9. Thin Sheet High Pressure Needle Nozzle helps reduce maintenance frequency and downtime, improving overall production efficiency in papermaking systems.
Selected Model Specifications
1. Type CY27149 is made of ordinary stainless steel and has high wear resistance. It is suitable for high-pressure brushed spray rods.
2. CY39350/CY48546/CY50709/CY64190 can be inlaid with ceramic or ruby nozzles, which significantly extends the life of the nozzle, greatly reduces downtime, and improves production efficiency.
Applications
High-pressure swing cleaning of long webs, high-pressure swing cleaning of felts in the press section, cleaning of blind hole rollers, cleaning of grooved rollers
| Material | Ceramics, Ruby, SS |
|---|---|
| Spray Angle | 0° |
| Min Pressure(bar) | 1.5 |
| Max Pressure(bar) | 55 |
| Max Flow(L/min) | 33 |
